36V/48V 500W 20A Brushless DC Square Wave Controller Ebike Electric Bicycle

36V/48V 500W Brushless DC Square Wave Controller Ebike Electric Bicycle

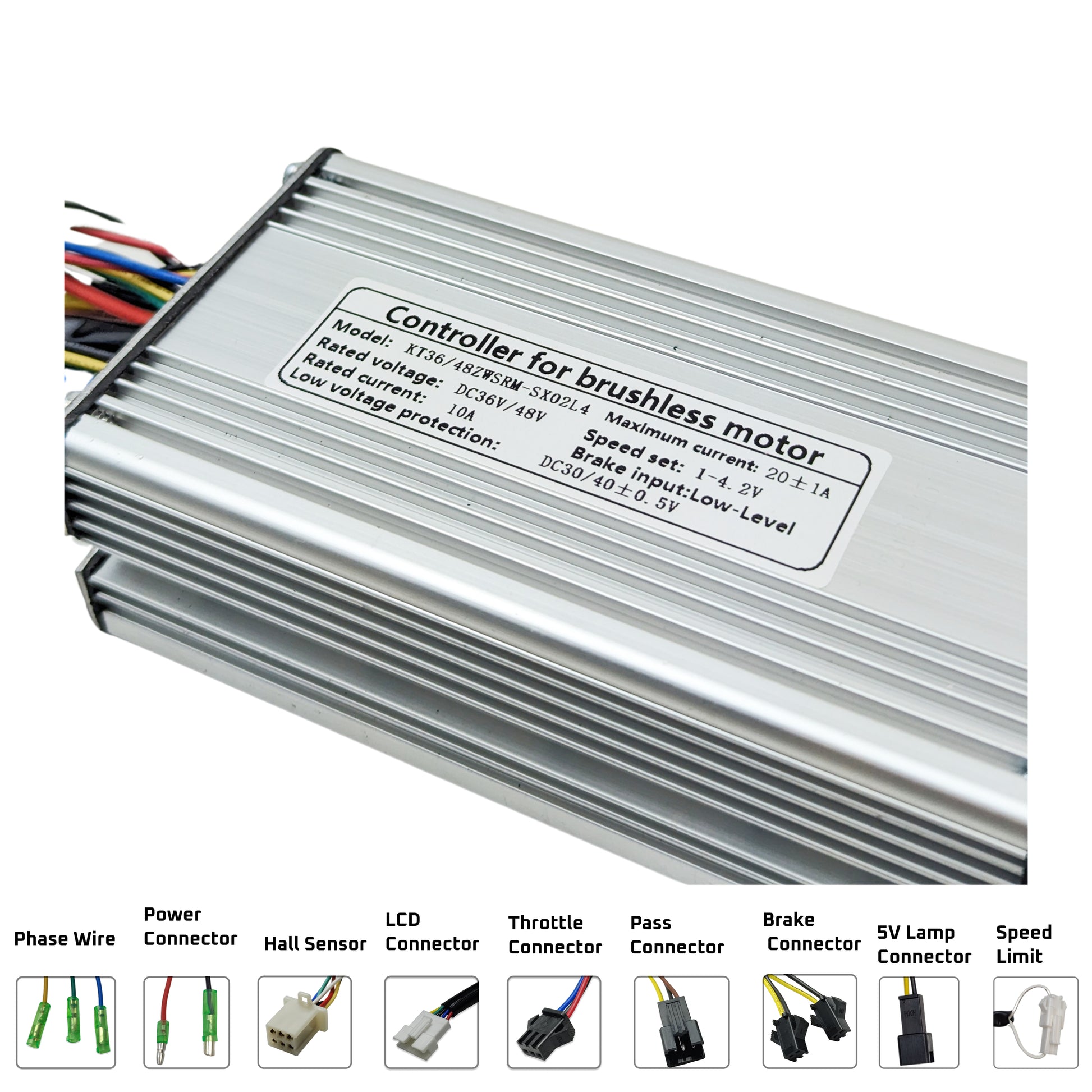

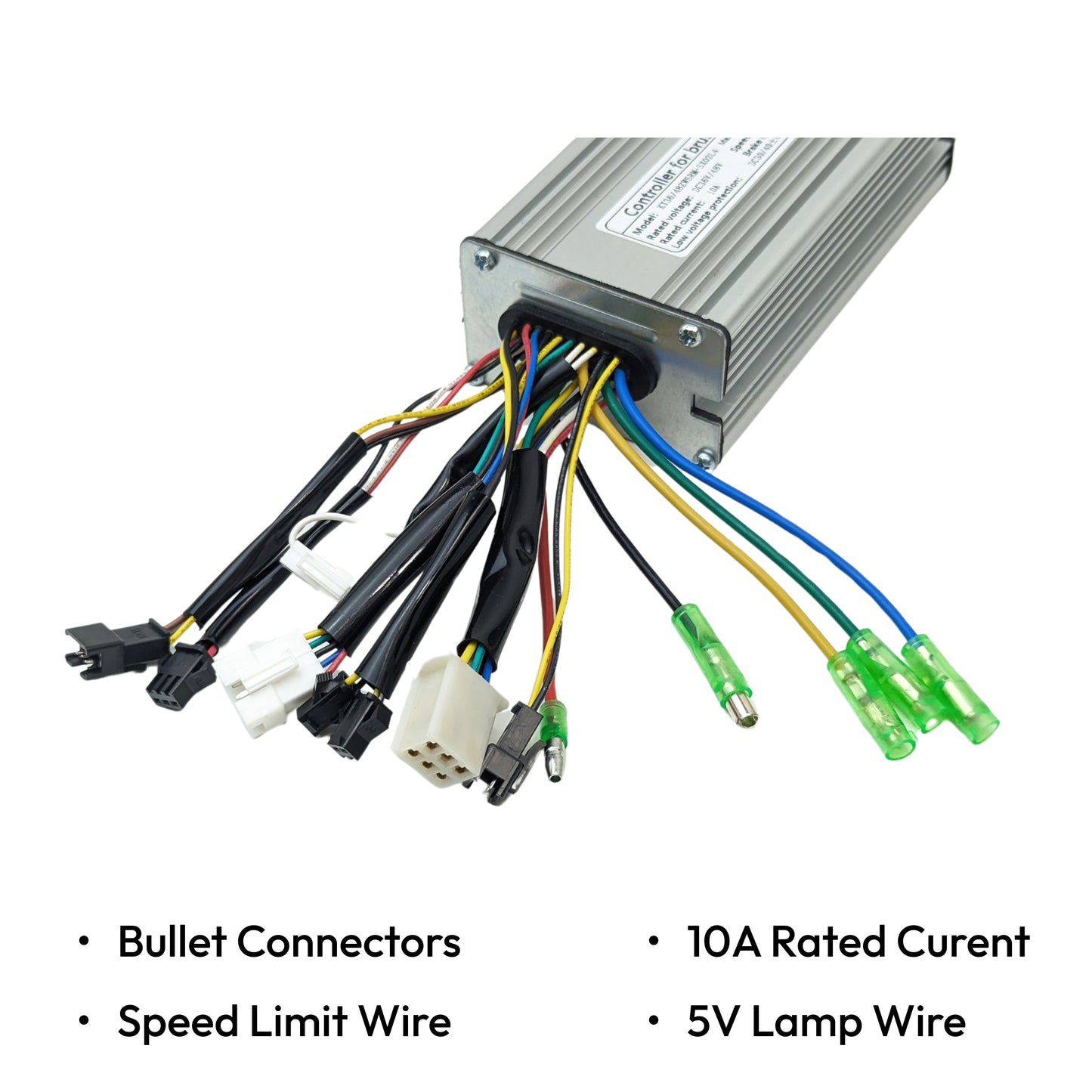

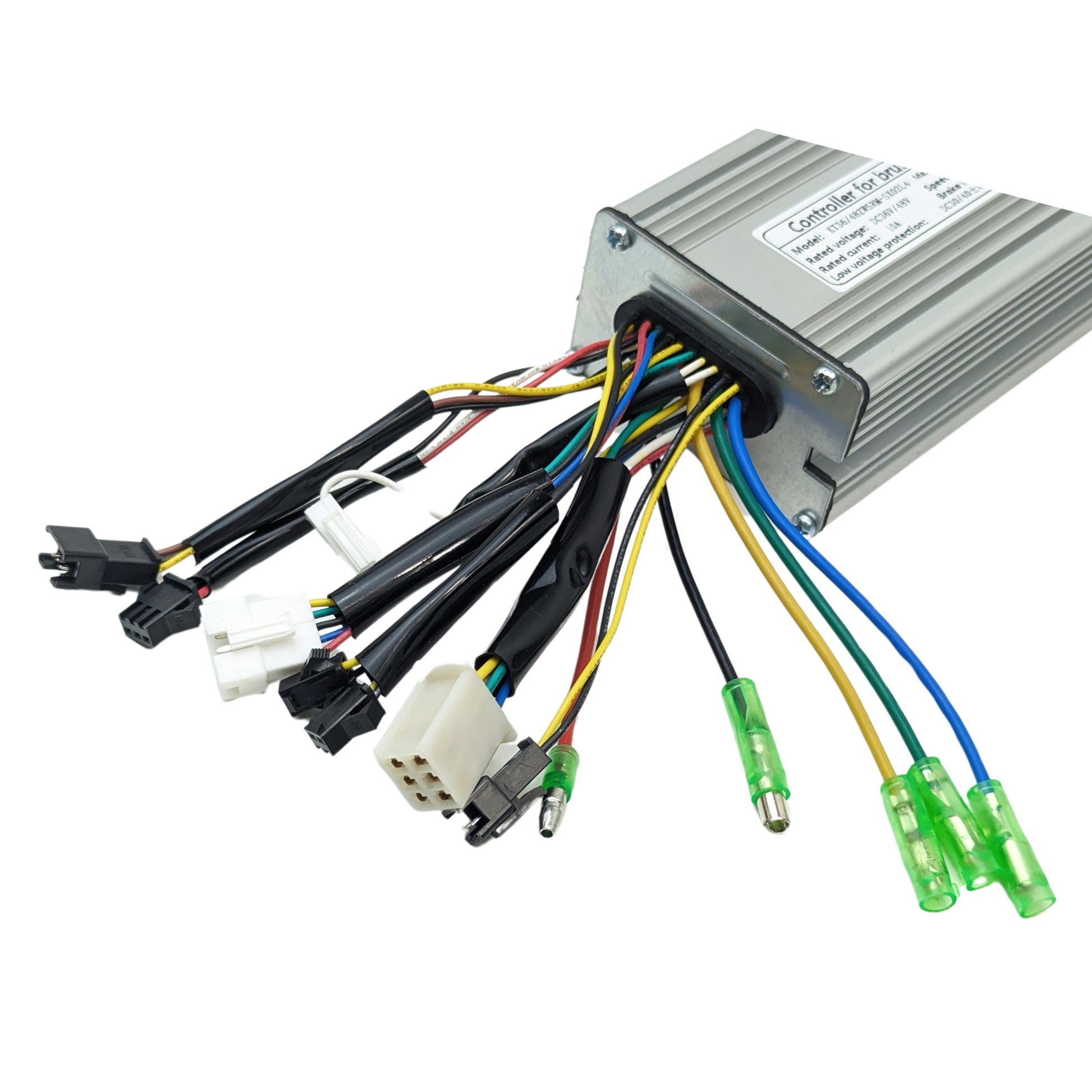

• This is sensored controller, so the controller has three big cables and five sensor wires and one speed sensor wire. you motor must have 8pcs wires or 9pcs wires, If you motor just  three big cable, please buy sensorless controller
• KT controller can work with geared or gearless motors
• This controller is not compatible with SW900 Display

Product details:

• Input Voltage: DC 36V or 48V (Universal)
• Min. Voltage: DC30V/40±0.5V
• Max. Current: 20±1A
• Rated Current: 10A
• Speed set: 1-4.2V
• Brake Input: Low-Level

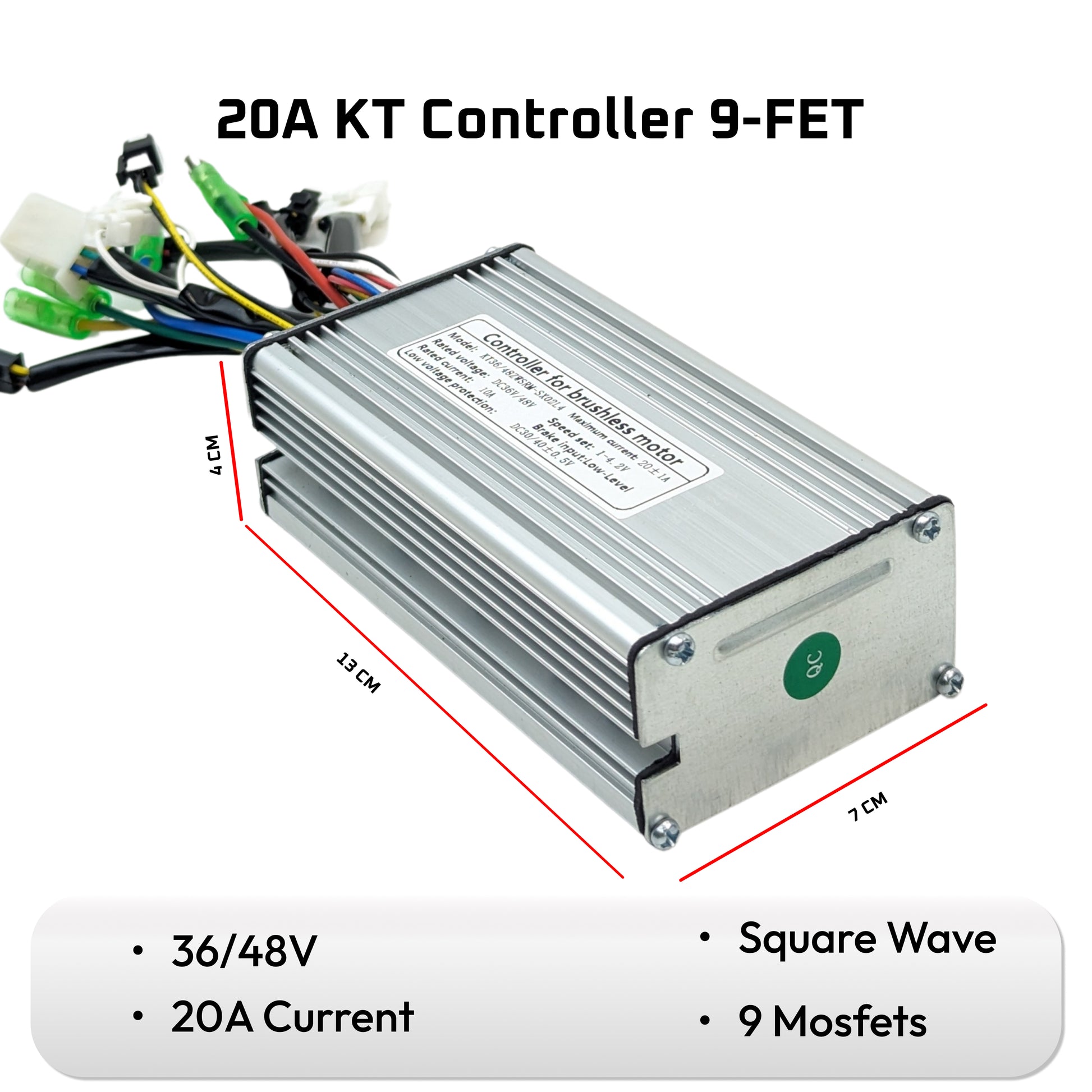

• Size: 128x66x38mm
• Colour: Silver
• Weight: 500g
• 9 pcs stronger MOSFET
• Application: Max. 36V /48V 500W
• Fit Bafang 8FUN 500W motor

Item Features:

• 36V or 48V Universal  (support both voltage)
• This controller can work without the PAS(Pulse Padel Assistant Sensor)
• Torque Simulation Square Wave Controller (more stable, high efficiency, low current consumption, long life)
• Support hydraulic brake sensor or brake sensor connector
• Support LED Control Panel or LCD Control Panel
• Support 36V or 48V Light Control
• Support speed limit to 70%
• Support Cruise Function
• Support led right

Package Included

• 1 X 36V/48V 500W 20A Brushless DC Square Wave Controller
