SM72100 48-72V 100A Sine Wave Controller XT150 Phase Connector

High-Power 8000W Controller – UK Stock, Fast Delivery

OMD Protocol

Product Overview:

The SM72100 is a high-performance sine wave controller designed for electric bikes and scooters. It offers stable operation, high efficiency, low current consumption, and a long lifespan. Ideal for 5000W motors, this controller supports various voltage ranges and features automatic phase identification for seamless integration. Now includes compatibility with alarm systems, self-learning mode for wheel direction correction, a lights connector, and reverse function support.

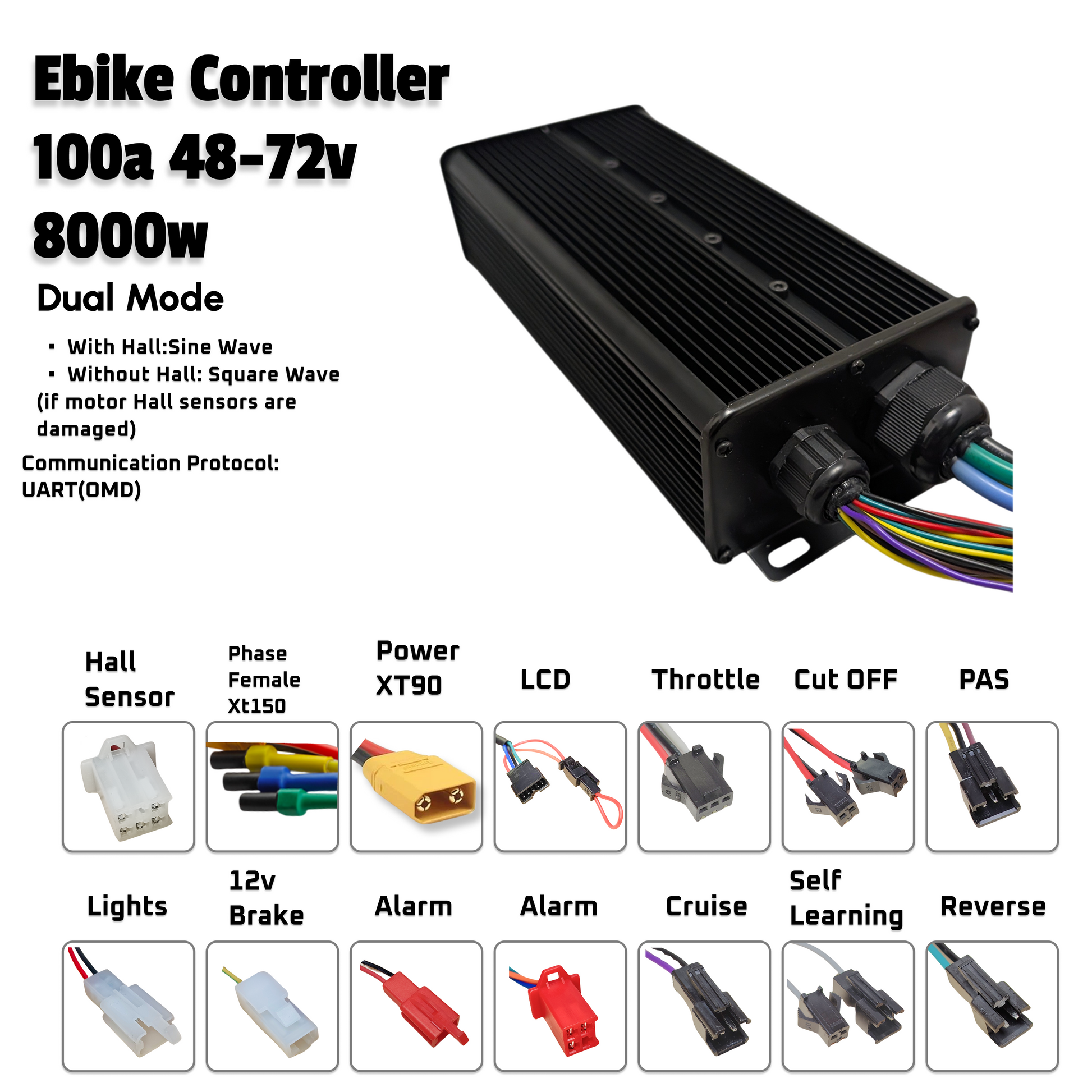

Key Features:

• Sine Wave Controller for smoother and quieter operation
• Rated Current: 100A
• Supports display integration (UKC1 or SW900)
• 3 Mode Controller for versatile performance
• Automatic phase identification (60° / 120° compatible)
• Low brake / high brake compatibility
• Regenerative braking support (when used with compatible displays)
• Self-learning mode: Automatically corrects wheel direction if motor spins incorrectly
• Alarm system compatible: Easily integrates with popular alarm systems
• Lights connector: For convenient headlight/tail light integration
• Reverse function: Enables motor reverse capability for added convenience

Specifications:

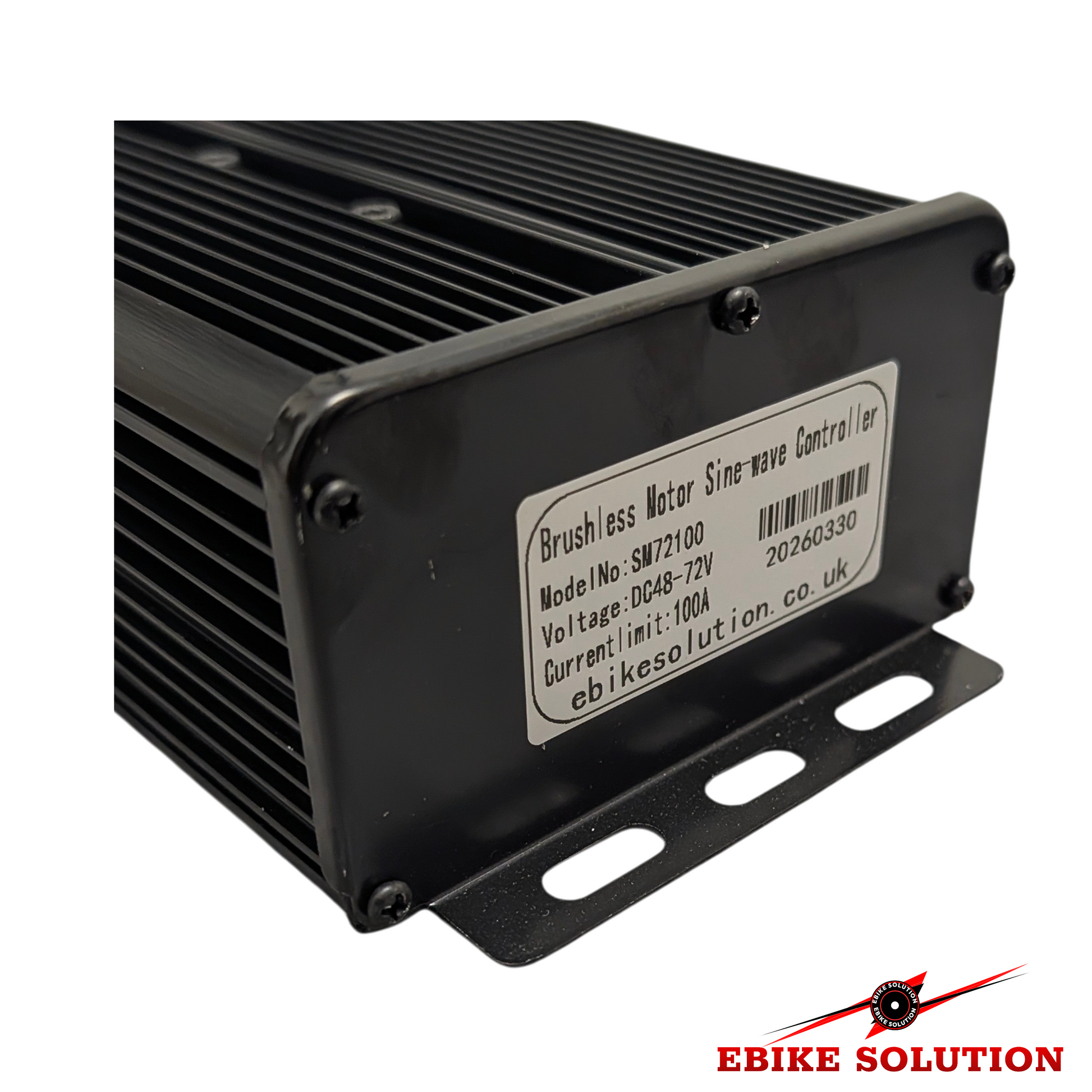

• Model: SM72100
• Power: 5000W (8000 Peak)
• Voltage Range: 48V-84V
• Current Limit: 100A
• Undervoltage: Automatic identification
• MOSFETs: 24
• Phase: Automatic identification (60° / 120° compatible)
• Brakes: Low brake / high brake
• Lights Connector: Yes
• Reverse Function: Yes
• Alarm System Compatible: Yes
• Self-Learning Mode: Yes

Display Options:

This controller is available in the following configurations:

• Controller Only: SM72100 72V 100A Sine Wave Hub Motor Controller

Please select the desired option when placing your order.

Package Includes:

• 1x SM72100 72V 100A Sine Wave Controller Hub Motor
