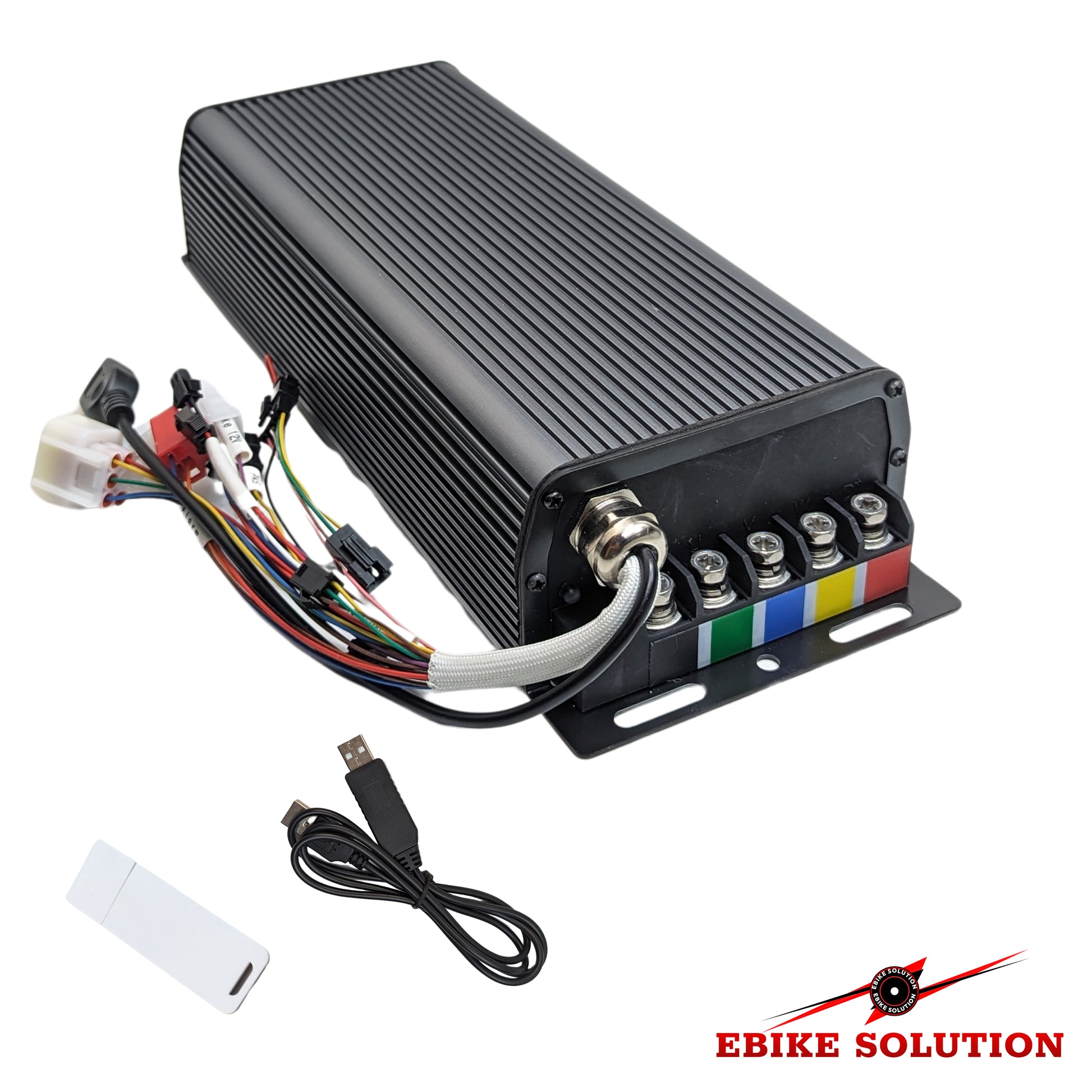

Sabvoton 72V 150A eBike Scooter Controller Stealth Bomber SVMC72150 V1 V2 Support Plug and Play Display

Sabvoton 72V 150A eBike Scooter Controller Stealth Bomber SVMC72150 V1 V2 Support Plug and Play Display

UK Stock Fast Delivery

Software download link

To be able to use this controller you must use the throttle that comes together with the throttle, you must switch on the ignition key and then display will turn on automatically.

Throttle its part of the kit for both options as its mandatory to turn on the controller

If you'd  like to get the display you must select option Sabvoton+ UKC1 Display ,otherwise you'll get only controller and throttle.

PLEASE NOTE: This controller support any plug and play display on APT Protocol

Features

• It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 3000W-4000w.if you want to match with new brand motor, some parameters should be tested by yourself.
• Sabvoton controller only design sine wave type controller so far, it’s brushless DC controller, 120 degree phase angle. Generally, we matched it well with QS Motor, if you want to match with new brand motor, some parameters should be tested by yourself.

Specification

• Sine wave controller, programmable, with regen function
• DC Current Limit: 150A
• Max. Phase Current: 350A
• Protect Phase Current: 450A
• Battery Voltage: 24V-72V rated, Max. 95V
• Thermic Probe: KTY83-122
• Including one controller + USB convertor cable + matched plug
• controller size: 275mm*120mm*65mm
• Net weight: 2.2kg
• Default including bluetooth adapter and usb programing cable
• Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, cruise.

Package Included

• 1 X As per chosen option controller with or without display

Shipping information: We offer free shipping on most of our items,dispatched same day Monday to Friday before 3PM.We can offer next day delivery on some of our items depending on availability and shipping address.

Guarantee: Offer a money-back guarantee or warranty to give the customer peace of mind when making a purchase.

Feedback:Your satisfaction and positive feedback is very important for us, if you have any problems, don't hesitate to contact us. We'll do our best to serve you.
