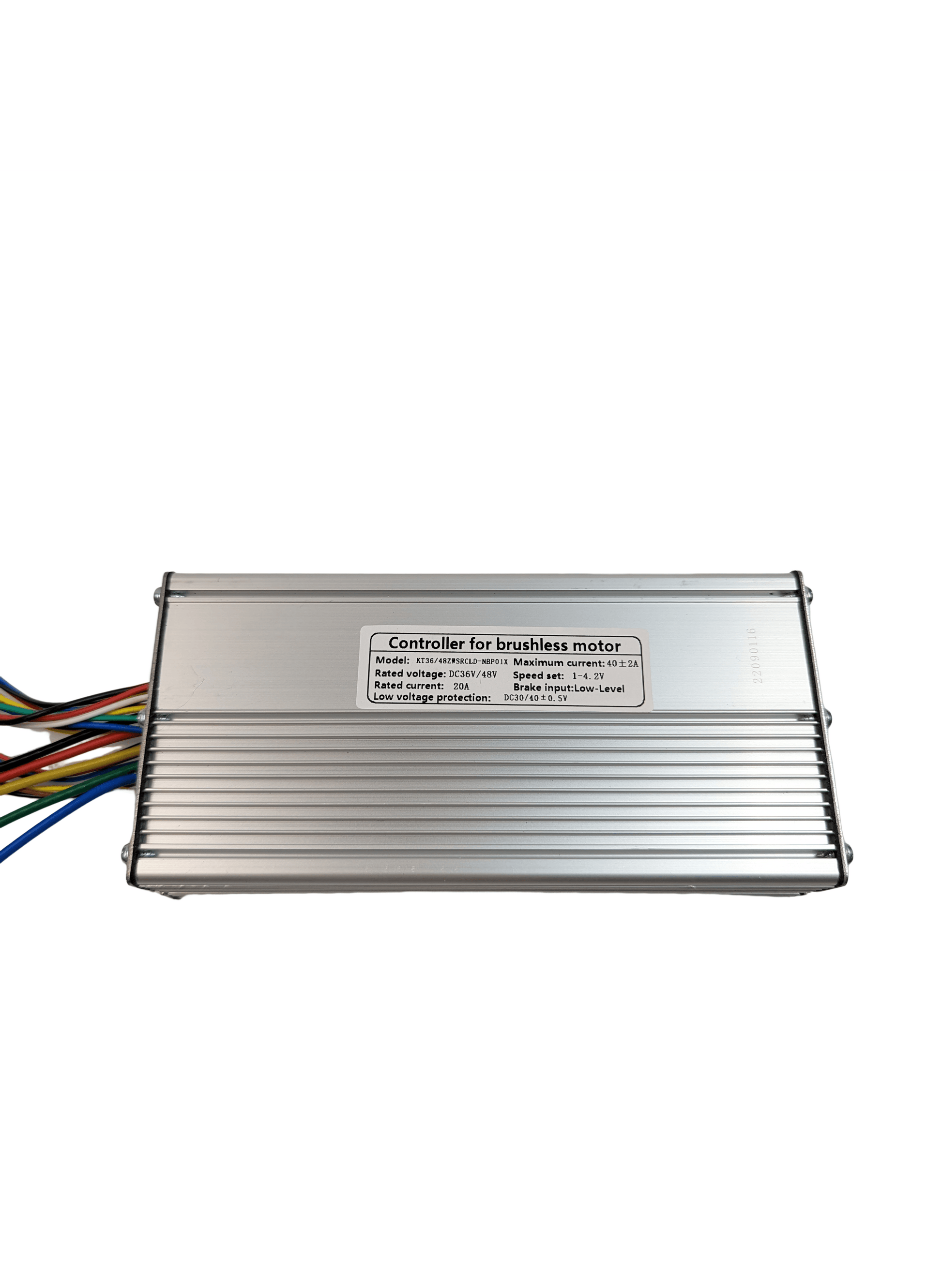

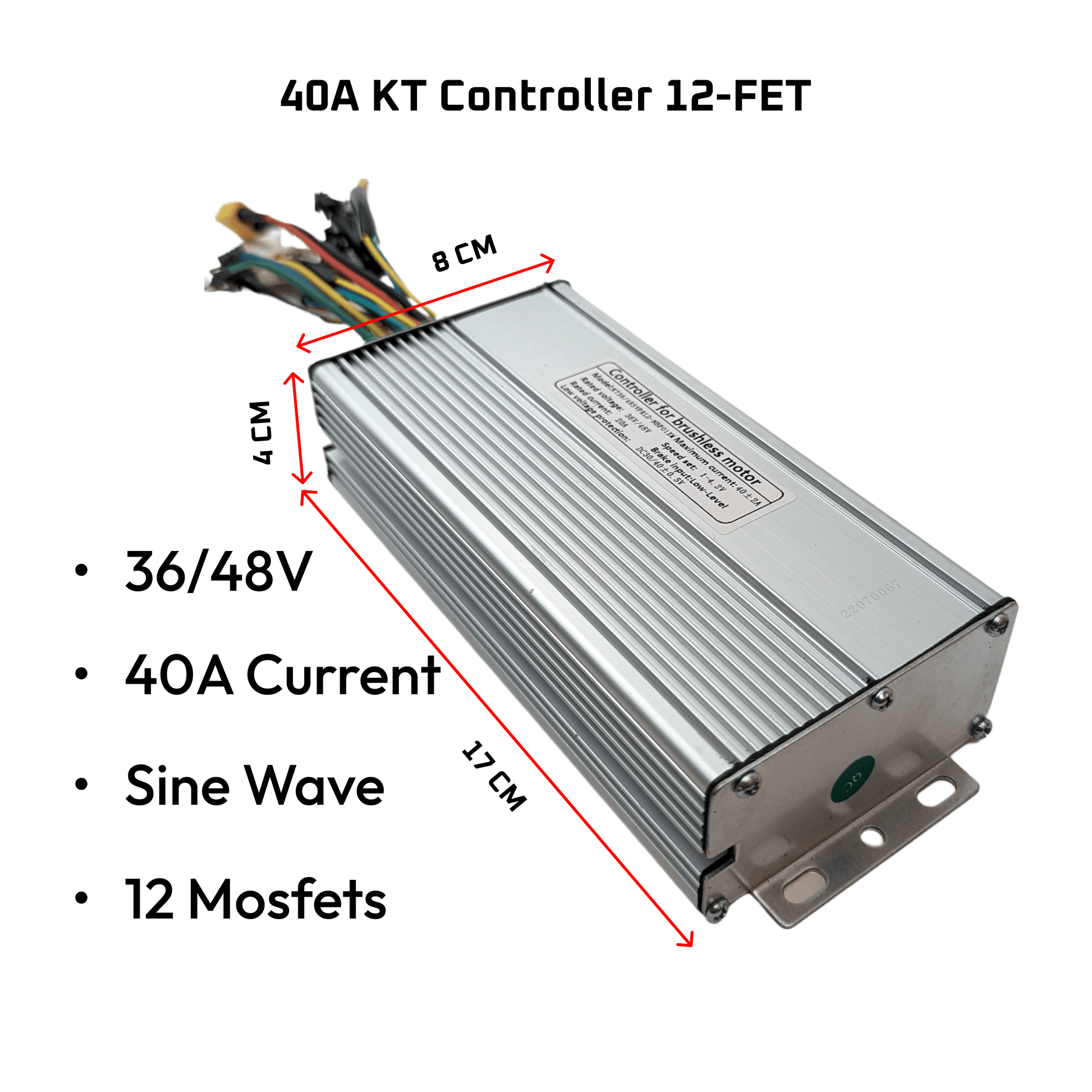

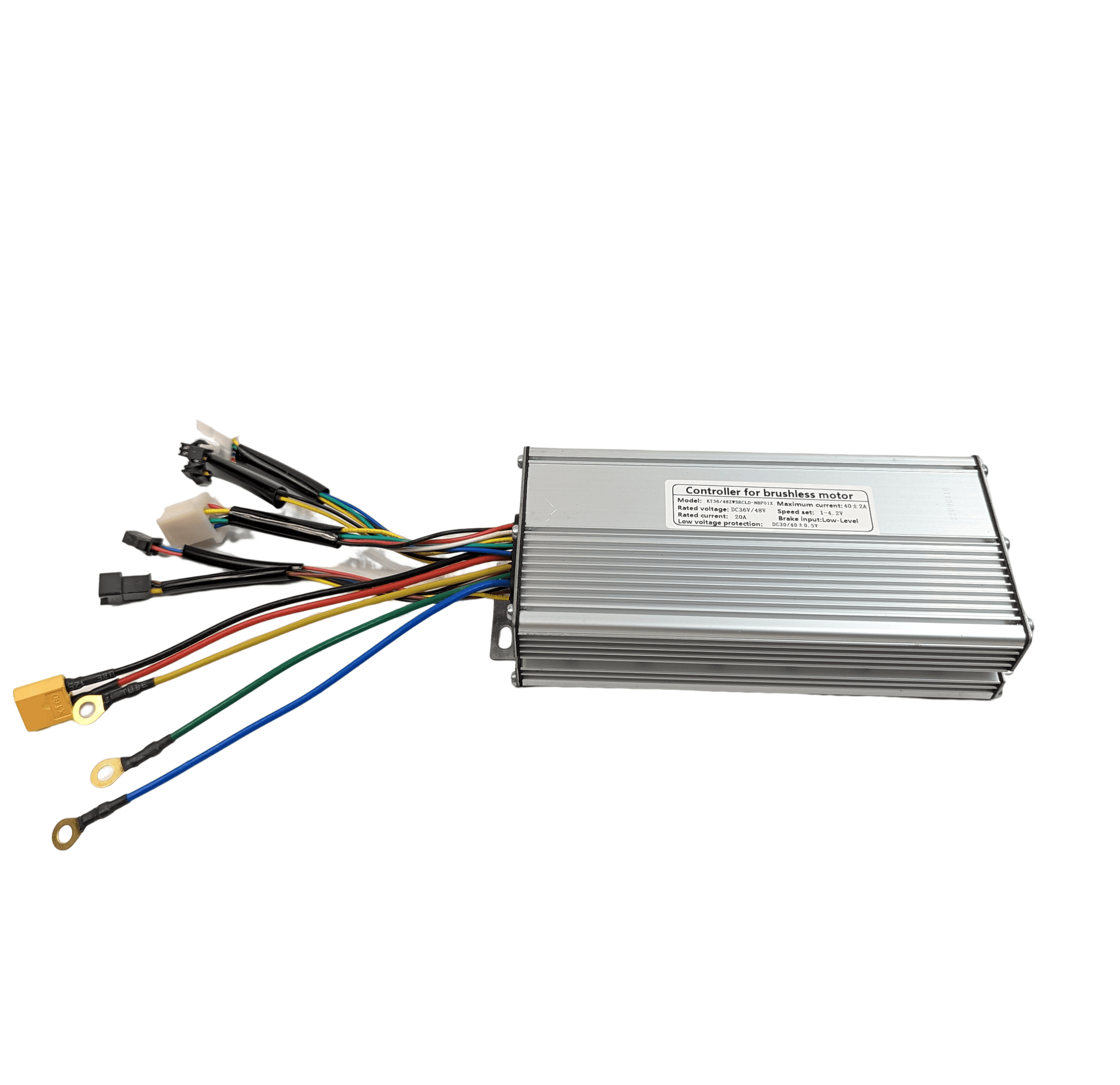

Brushless Motor KT Controller DC 36V/48V 1500-2000W 40A KT Sine Wave

Ebike Brushless Motor Controller 48/52V 1500/2000W 12-FET 40A KT Sine Wave

UK Stock Fast Delivery

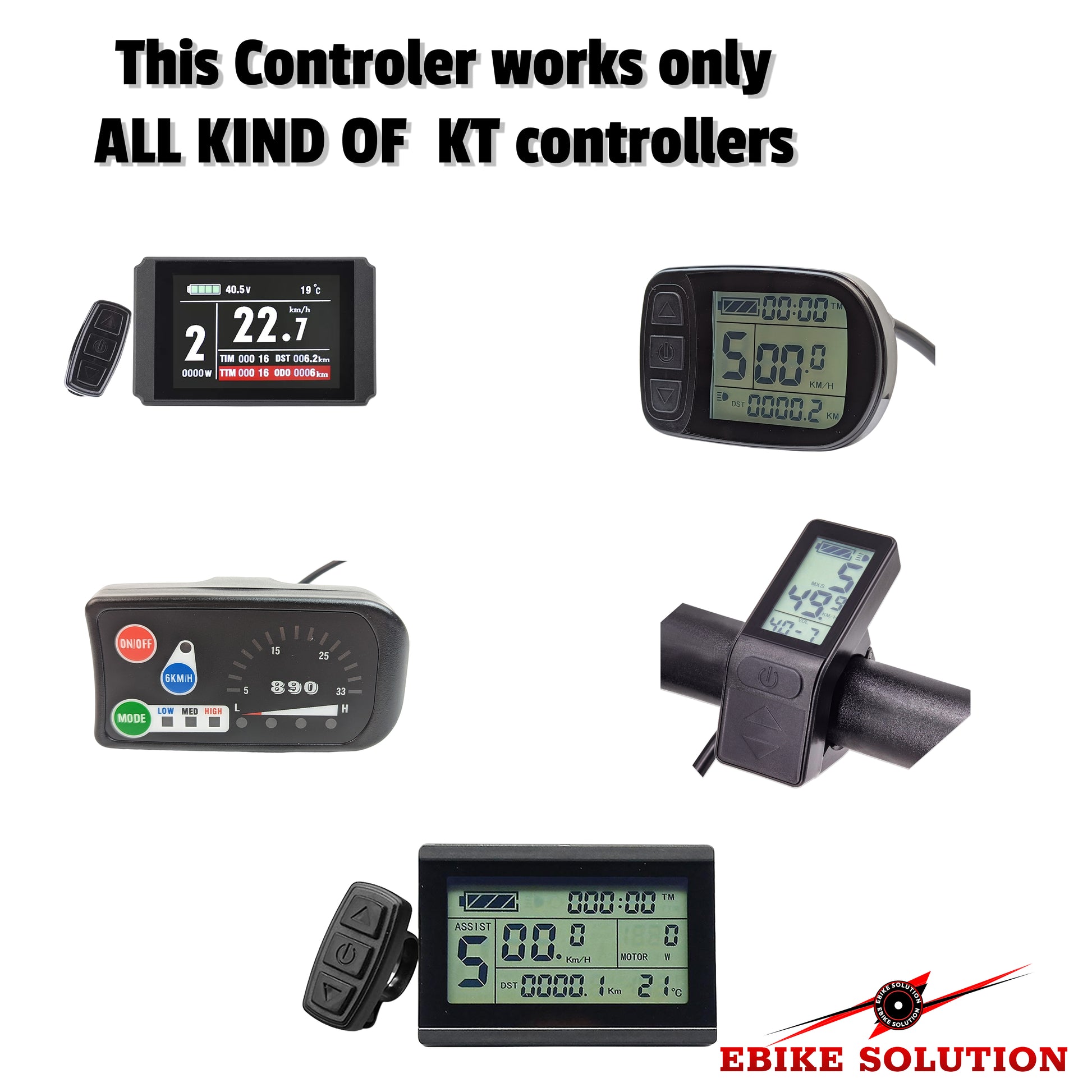

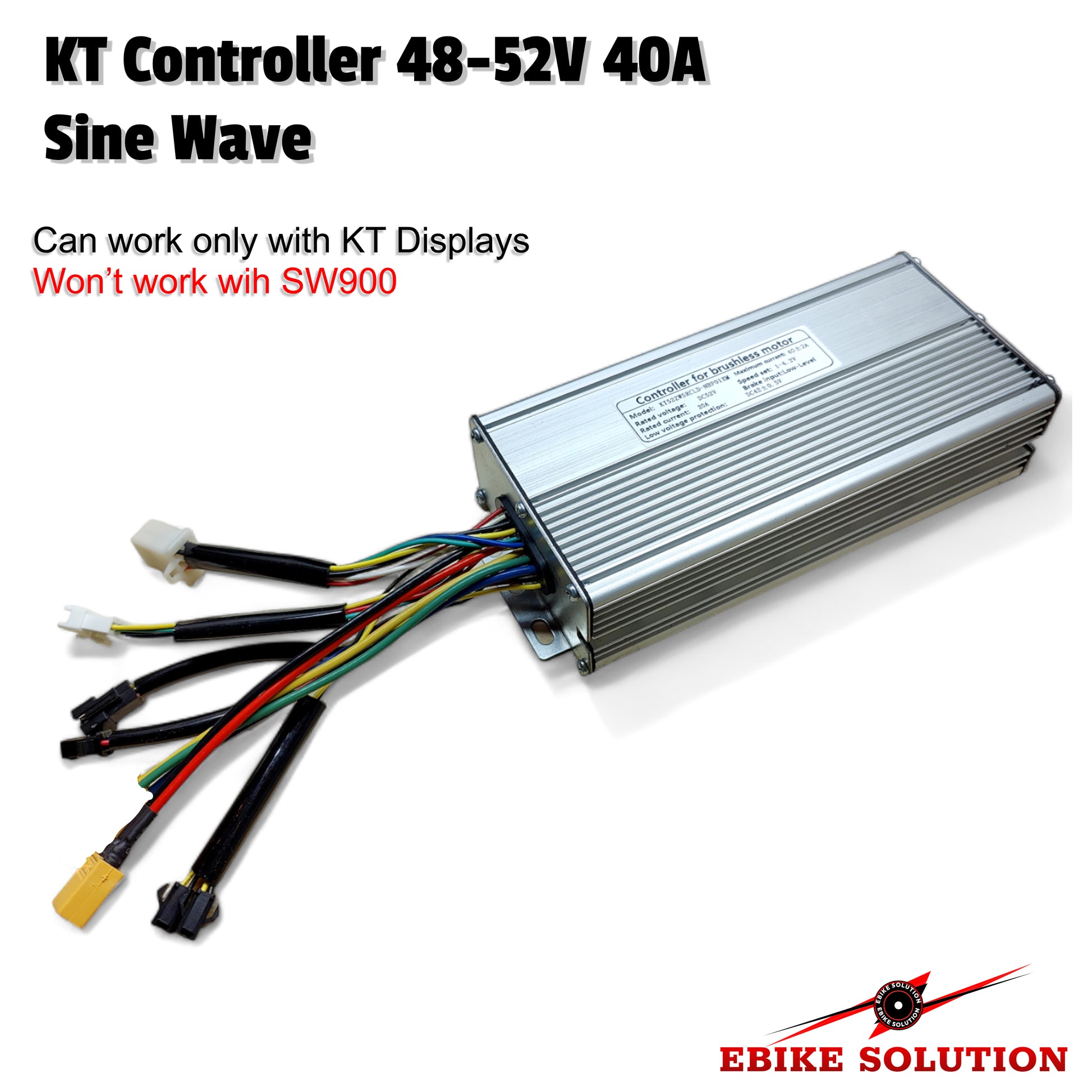

• Can work only with KT Displays (won't work with SW900 Displays)

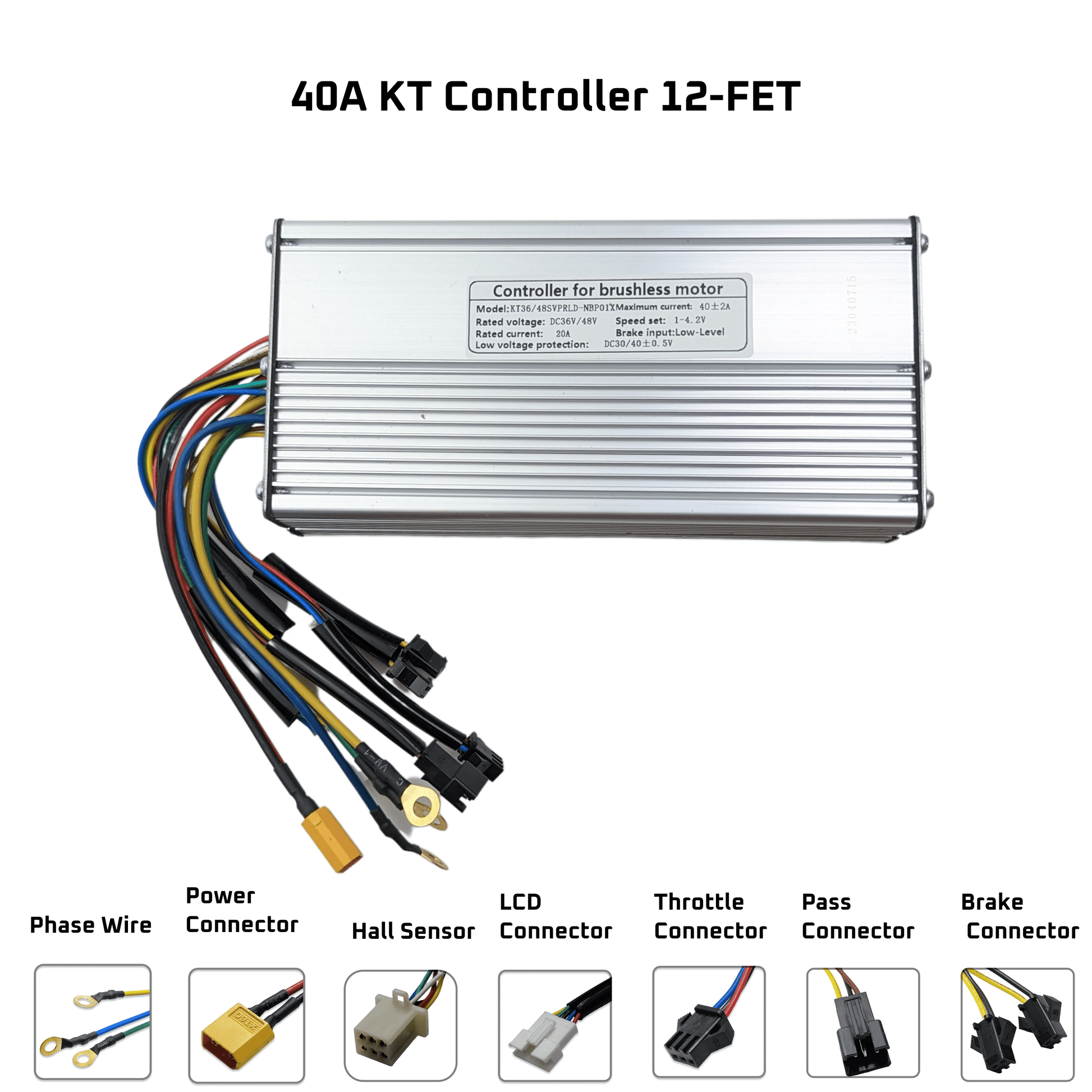

• This is sensored controller(with hall plug), so controller has three big cable and five sensor wires and one speed sensor wire. you motor must have 8pcs wires or 9pcs wires, If you motor just  three big cable, please buy sensorless controller

Product details:

•  Sine Wave Controller (more stable, high efficiency, low current consumption, long life)Support KT LED Control Panel or KT LCD Control Panel or without any Control Panel (Universal)Support 48V Light Control Rated current: 20+-2A Maximum Current: 40A
• It only applies to hub motors with Hall sensors.
• Note: This controller is only suitable for electric bicycles. It cannot be used for electric scooters.

Specifications:

• Electric Bicycle 48/52V 1500W/200W  KT-40A Sine Wave Brushless Controller
• Weight: 550g (Approx)
• Power: 1500W/2000W
• Cable length: 10-16cm (Approx)
• Model: 12 mosfets
• Maximum current: 40±2A
• Rated voltage: DC48V/52V
• Speed setting: 1-4.2V
• Rated current: 20A
• Brake input: Low Level
• Low voltage protection: DC30/40±0.5V

Package Included

• 1 X 48/52V 1500/2000W 12-FET 40A KT Sine Wave Controller
