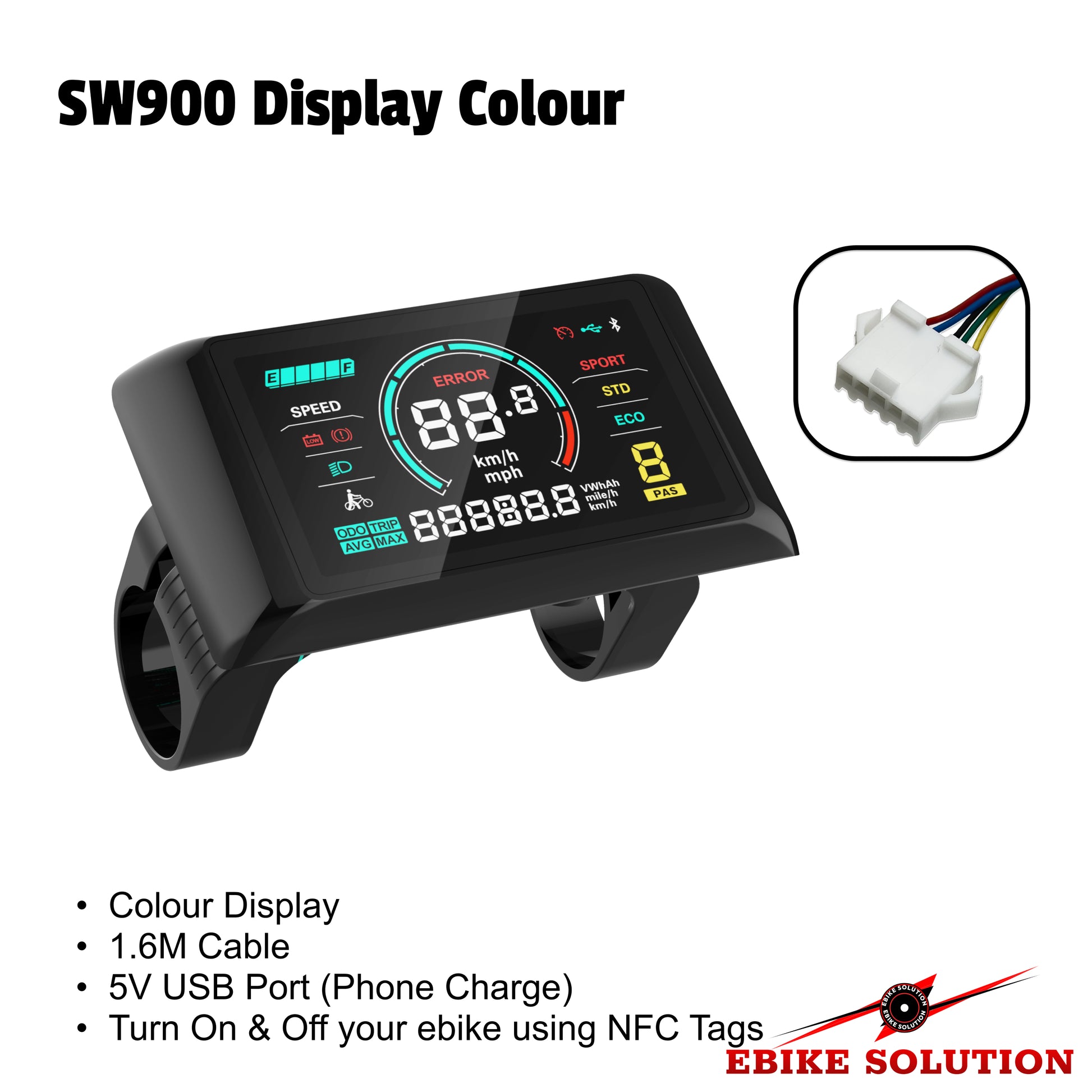

Ebike Colour SW900 LCD Display Control Electric Bicycle Speed Meter 36-72V

Ebike Colour SW900 LCD Display Control Electric Bicycle Speed Meter 36-72V

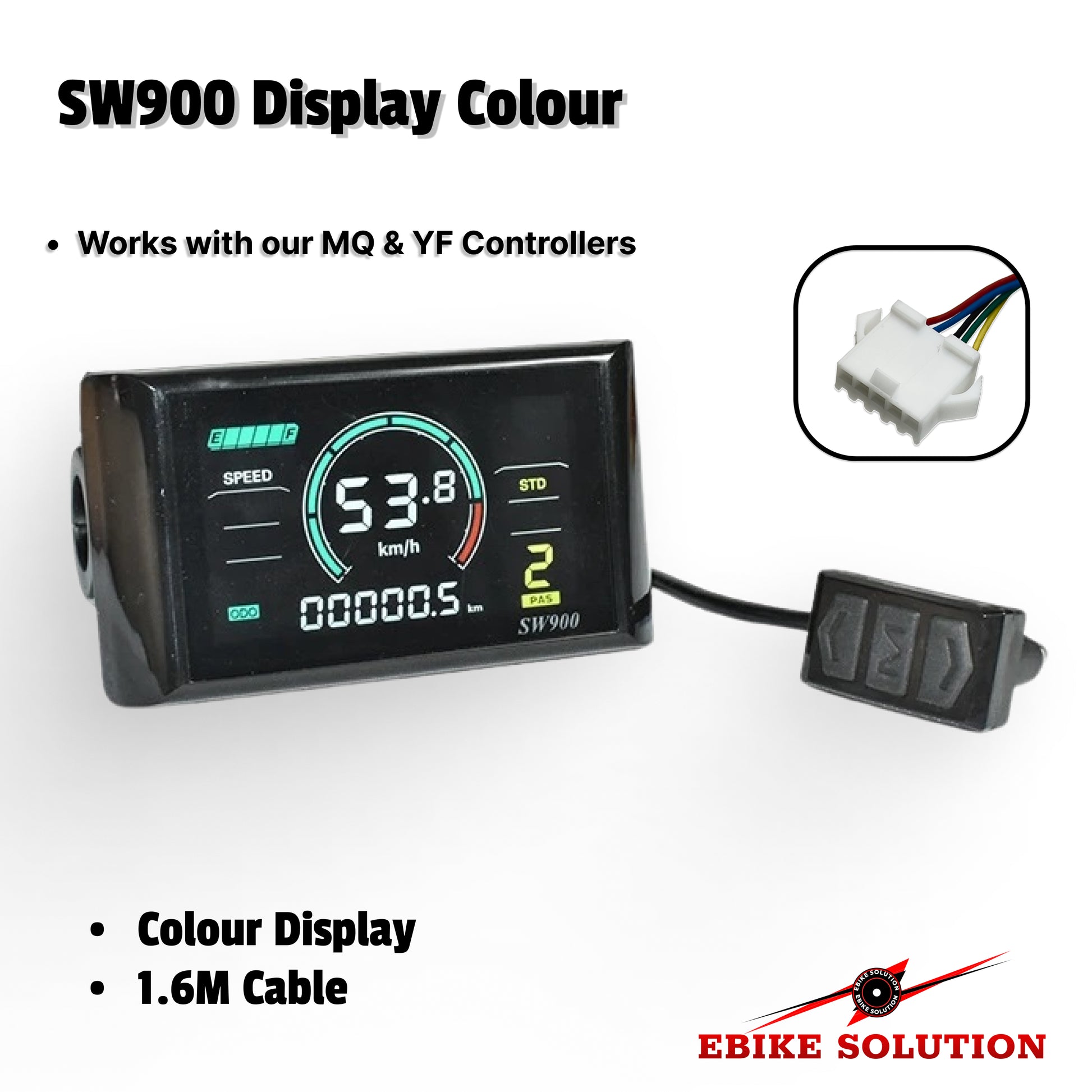

Can work with our MQ & YF controllers

Display Function:

• Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.

Control/Setting Function:

• Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Harness Description:

• Red (P+) meter power cord
• Blue (VCC) electric door lock wire
• Black (GND) negative wire
• Green (RX) Meter data receiving
• Yellow (TX) Meter data transmission

Meter Setting Function：

• Long press the up and down buttons of the meter to enter the meter settings.
• P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.
• P02: Mileage unit, 0: KM; 1: MILE.
• P03: Voltage level: 24V, 36V, 48V.
• P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes.
• P05: Power assist gear 1-9
• P06: Wheel diameter: unit, inch; precision: 0.1.
• P07: Number of speed magnets: range: 1-100.
• P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.
• P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start.
• P10: Drive mode setting 0: power-assisted drive (the handle is invalid).

1: Electric drive (by turning the handle to drive, the power gear is invalid at this time).

2: Power-assisted drive and electric drive coexist at the same time.

• P11: Assist sensitivity setting range: 1-24.
• P12: Assist start intensity setting range: 0-5.
• P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single Hall power-assisted sensors.
• Setting 12 is used for dual Hall assist sensors.
• P14: This function is not available yet.
• P15: This function is not available yet.
• P16: ODO reset setting, Long press the up button for 5 seconds ODO

Package Includes:

1 X SW900 Display Colour
