EN06 Ebike LCD Display Control Panel 36V/48V For Electric Bicycle Scooter 5 Pin

EN06 Ebike LCD Display Control Panel 36V/48V For Electric Bicycle Scooter 5 Pin

Description:

• Brand new and high quality
• Made of high-quality material, durable, and practical to use
• Non-communications status (panel-controlled):
  • When the current speed exceeds the speed limit, the PWM output will be shut down.
  • When the current speed falls below the speed limit, the PWM output will be activated, and the driving speed will be set as the current speed ±1km/h (only applies to assist power speed, not applicable to the handlebar speed).
• Communications status (controller-controlled):
  • The driving speed will be kept constant as the limited value.
  • Error value: ±1km/h (applicable to both the assist power/handlebar speed).
• The voltage is adjustable, default is generally 36V.

Specification:

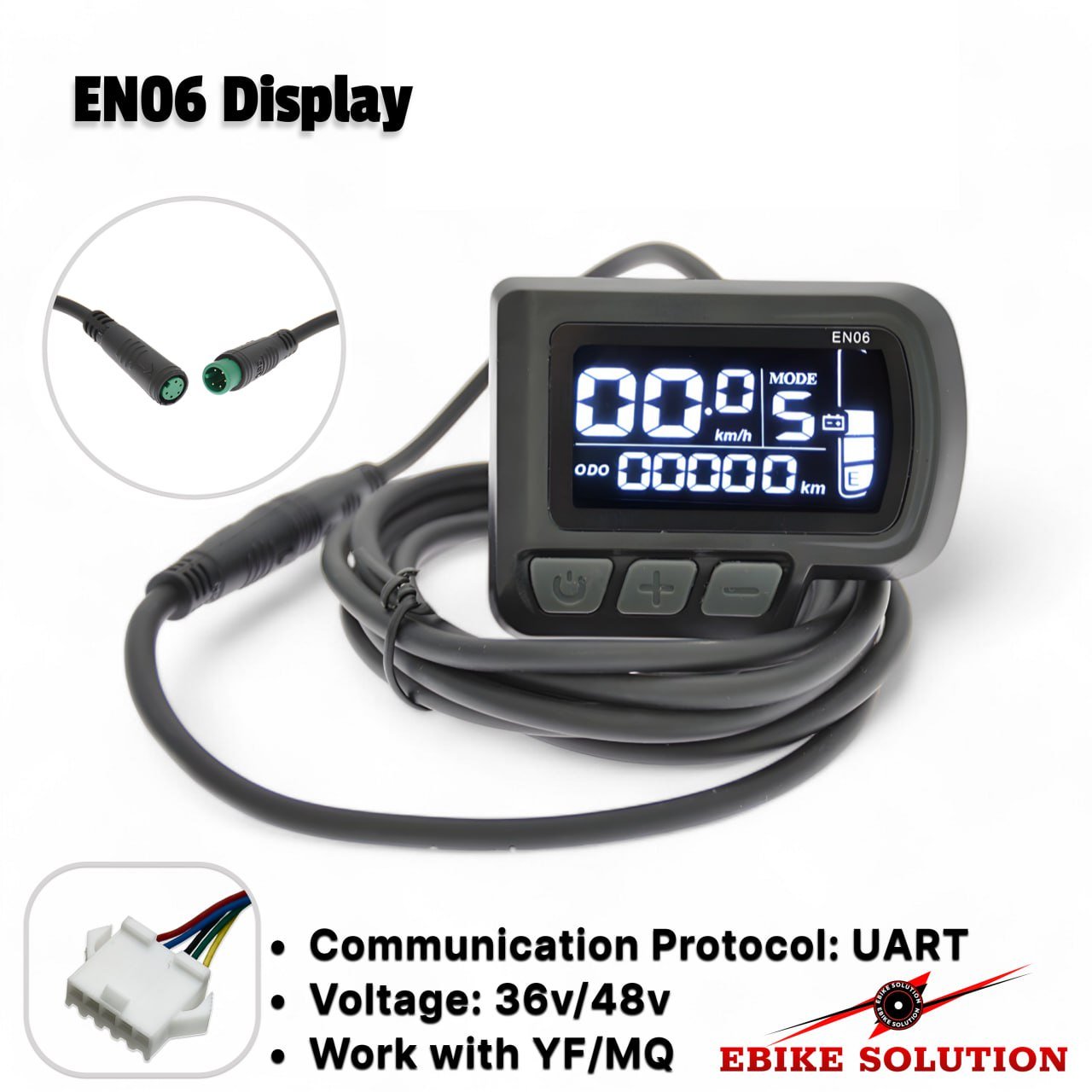

• Product Type: EN06 Display
• Material: ABS
• Color: Black
• Voltage: 24V/36V/48V

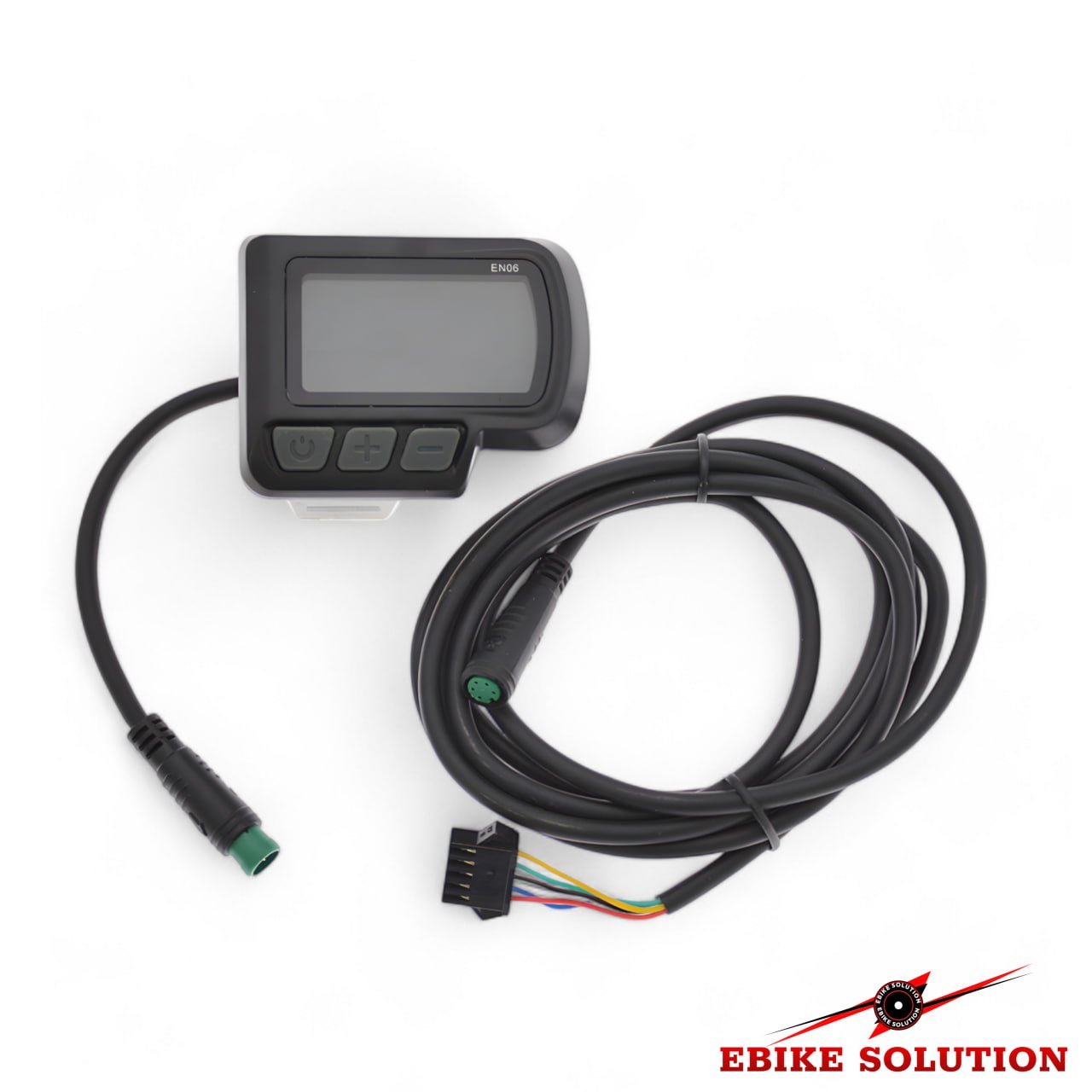

• Cable length: 180cm (Full length) / 19cm (WP)
• Plug: 5 Pin
• Weight: About 96g
• Communication protocol: UART#2

Settings for LCD EN06:

• P01: Backlight Brightness (1: darkest; 3: brightest)
• P02: Mileage Unit (0: KM; 1: MILE)
• P03: Voltage Class (24V/36V / 48V/60V, default is 36V)
• P04: Auto-Sleep Time (0: never, other values mean display sleep interval) - Unit: minute
• P05: Power Assist Gear
  • 0/3 Gear Mode: Gear 1: 2V, Gear 2: 3V, Gear 3: 4V
  • 1/5 Gear Mode: Gear 1: 2V, Gear 2: 2.5V, Gear 3: 4V, Gear 4: 3.5V, Gear 5: 4V
• P06: Wheel Diameter - Unit: inch, Precision: 0.1
• P07: Magnet Steel Number (for Speed Test) - Range: 1-100
• P08: Speed Limit - Range: 0-50km/h (parameter 50 indicates no speed limit)

Additional Settings:

• P09: Direct Start / Kick-to-Start Setting
  • 0: Direct Start
  • 1: Kick-to-Start
• P10: Drive Mode Setting
  • 0: Power Assist – The specific gear of the assist drive decides the assist power value. The handlebar does not work in this status.
  • 1: Throttle Mode – The vehicle is driven by the handlebar. The power gear does not work in this status.
  • 2: Power Assist + Throttle – Electric drive does not work in zero-start status.
• P12: Power Assist Intensity – Range: 0-5
• P13: Power Magnet Steel Number – 5/8/12pcs
• P14: Current Limit Value – 12A by default; Range: 1-20A
• P15: Under-voltage: Choose according to your set
• P16: ODO Zero-Out

Note:

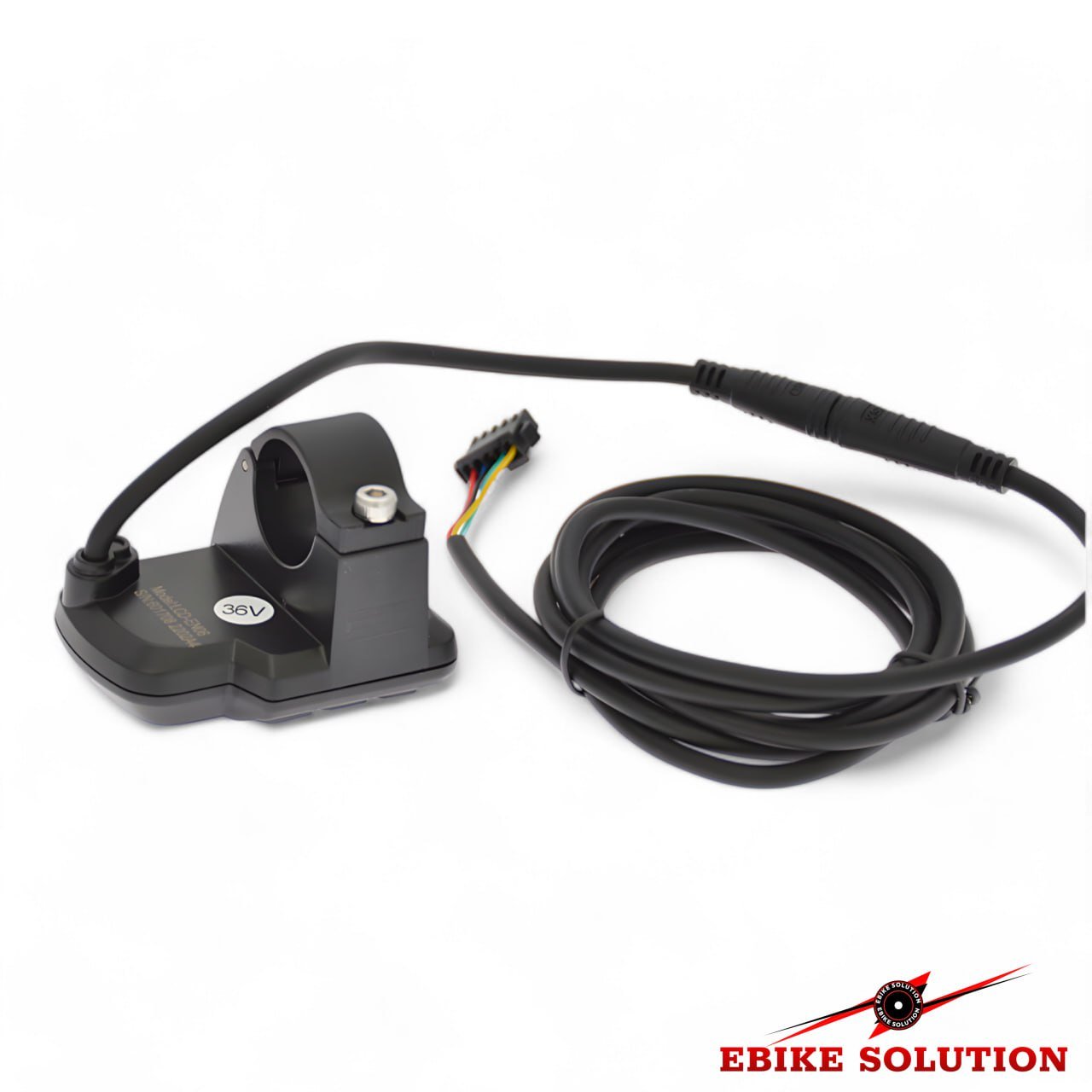

• If you need to use the waterproof 5PIN connector (cable length 19CM), just remove the SM connector and you can use the 5PIN waterproof connector together with the controller with waterproof connector.

Package includes:

• 1 * EN06 Display
• 1 * Instruction manual
