FarDriver ND72680 Controller 48-72V, 350A Line 680 Phase
FarDriver ND72680 Controller 48-72V, 350A Line 680 Phase
Low stock: 1 left
Couldn't load pickup availability
FarDriver ND72680 Programmable Motor Controller – 350A DC / 680A Phase
The FarDriver ND72680 is a powerful programmable sine-wave motor controller designed for compatible high-performance brushless motor systems. With a maximum 350A DC battery current and up to 680A phase current, it provides strong acceleration, smooth motor control and adjustable performance for demanding applications.
The controller features self-learning motor matching and supports parameter adjustment through compatible FarDriver software or the mobile application when used with the correct communication adapter. Current limits, throttle response, speed settings, motor parameters and other functions can be configured to suit a compatible battery, motor and vehicle setup.
Maximum Current Notice: The 350A DC and 680A phase figures are maximum controller settings. Actual output depends on programming, battery capability, BMS limits, motor specification, wiring, temperature and installation conditions.
Compatibility Notice: This is not a universal plug-and-play replacement. Please confirm the battery voltage, fully charged voltage, motor type, Hall-sensor wiring, throttle, connectors, wiring harness and display compatibility before ordering.
Key Features
- High-Current Performance: Supports a maximum DC battery current of 350A and a maximum phase current of 680A.
- Sine-Wave Motor Control: Provides smooth and controlled power delivery with reduced motor noise and vibration when correctly configured.
- Programmable Settings: Allows compatible users to adjust current limits, throttle response, speed settings and other operating parameters.
- Self-Learning Function: Assists with matching the controller to a compatible Hall-sensor brushless motor.
- Bluetooth App Support: Parameters can be monitored and adjusted using a compatible FarDriver mobile application when the required Bluetooth adapter is fitted.
- Flux-Weakening Support: Provides additional motor-speed adjustment when correctly configured for a compatible system.

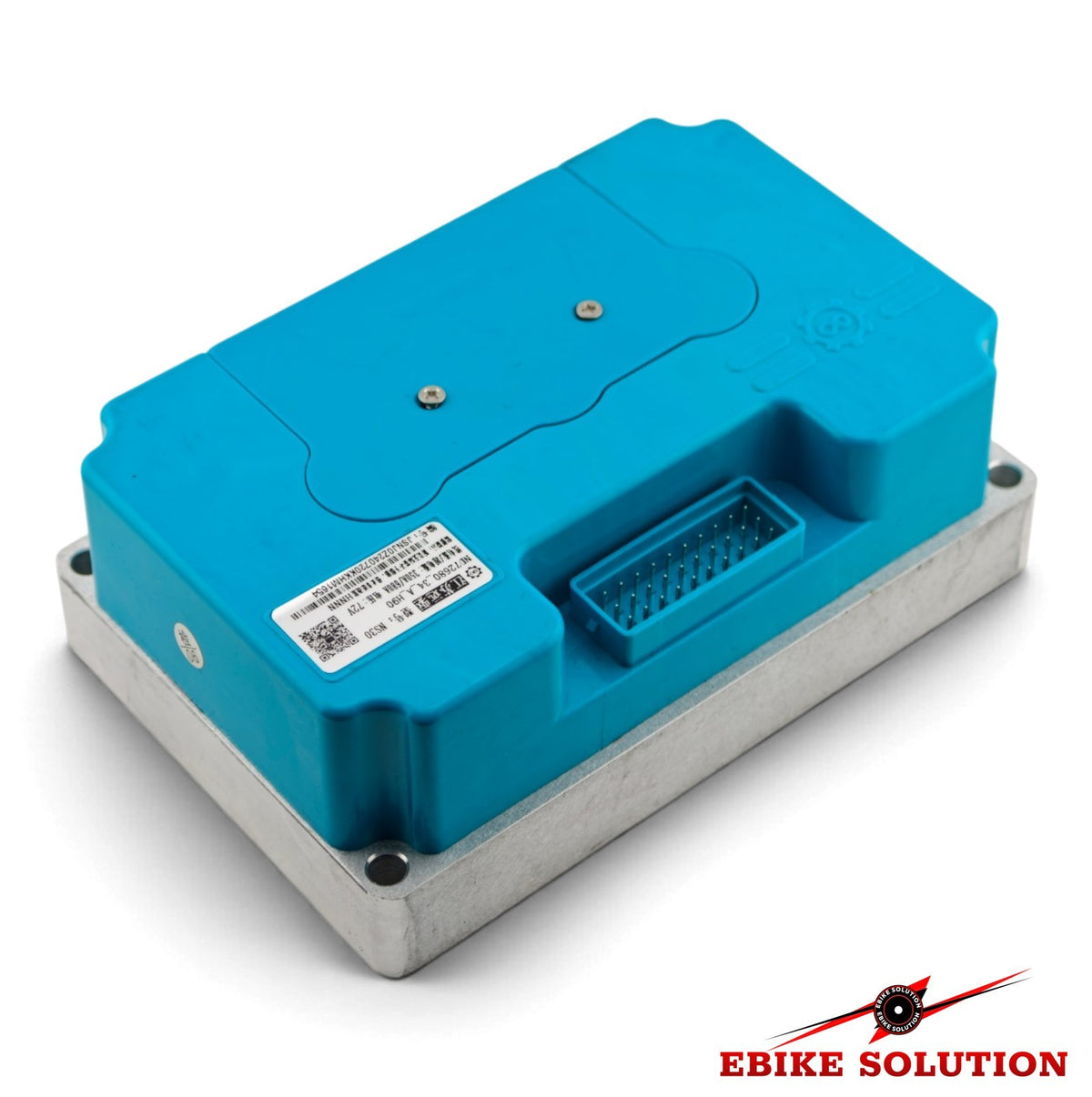

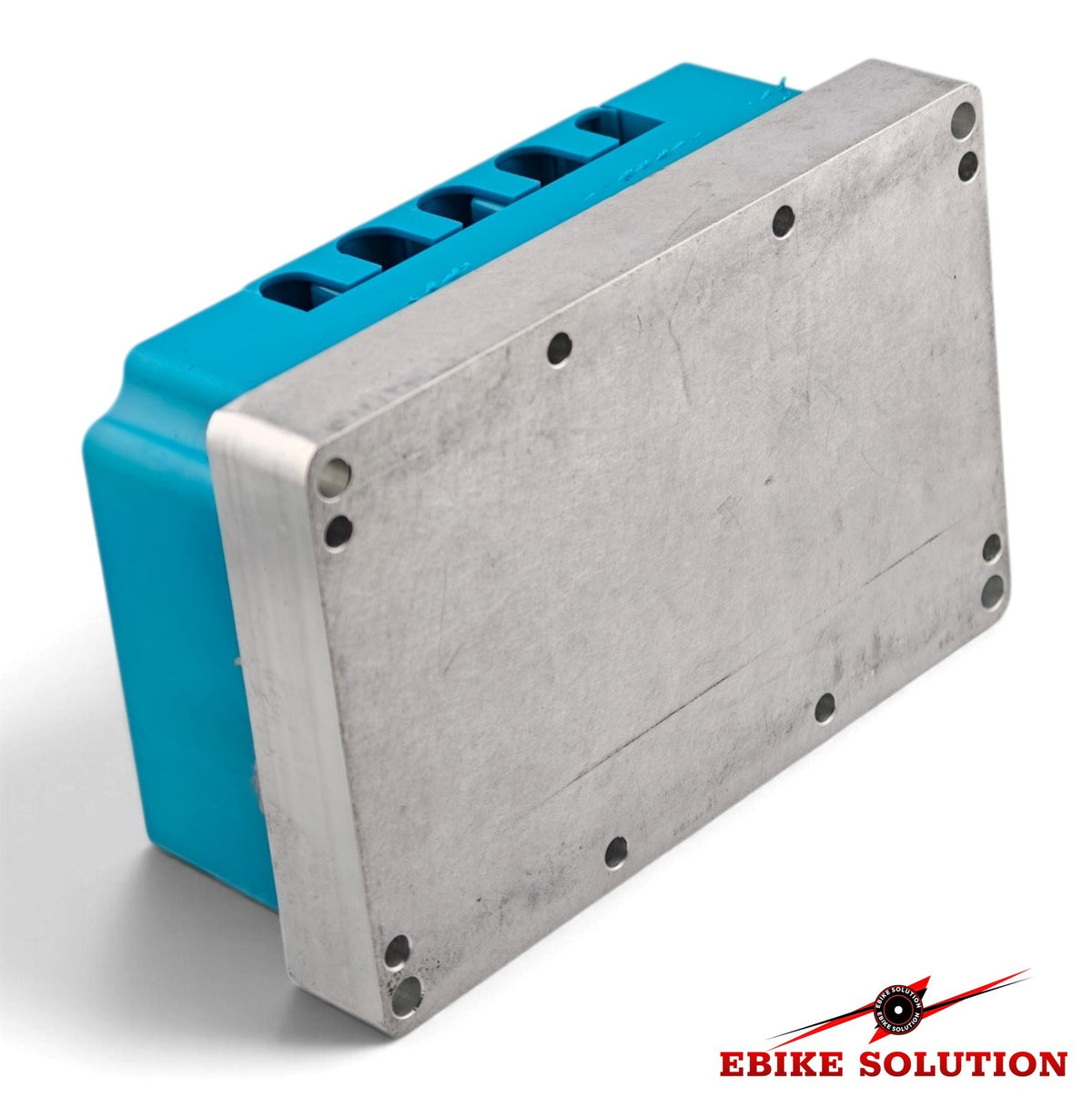

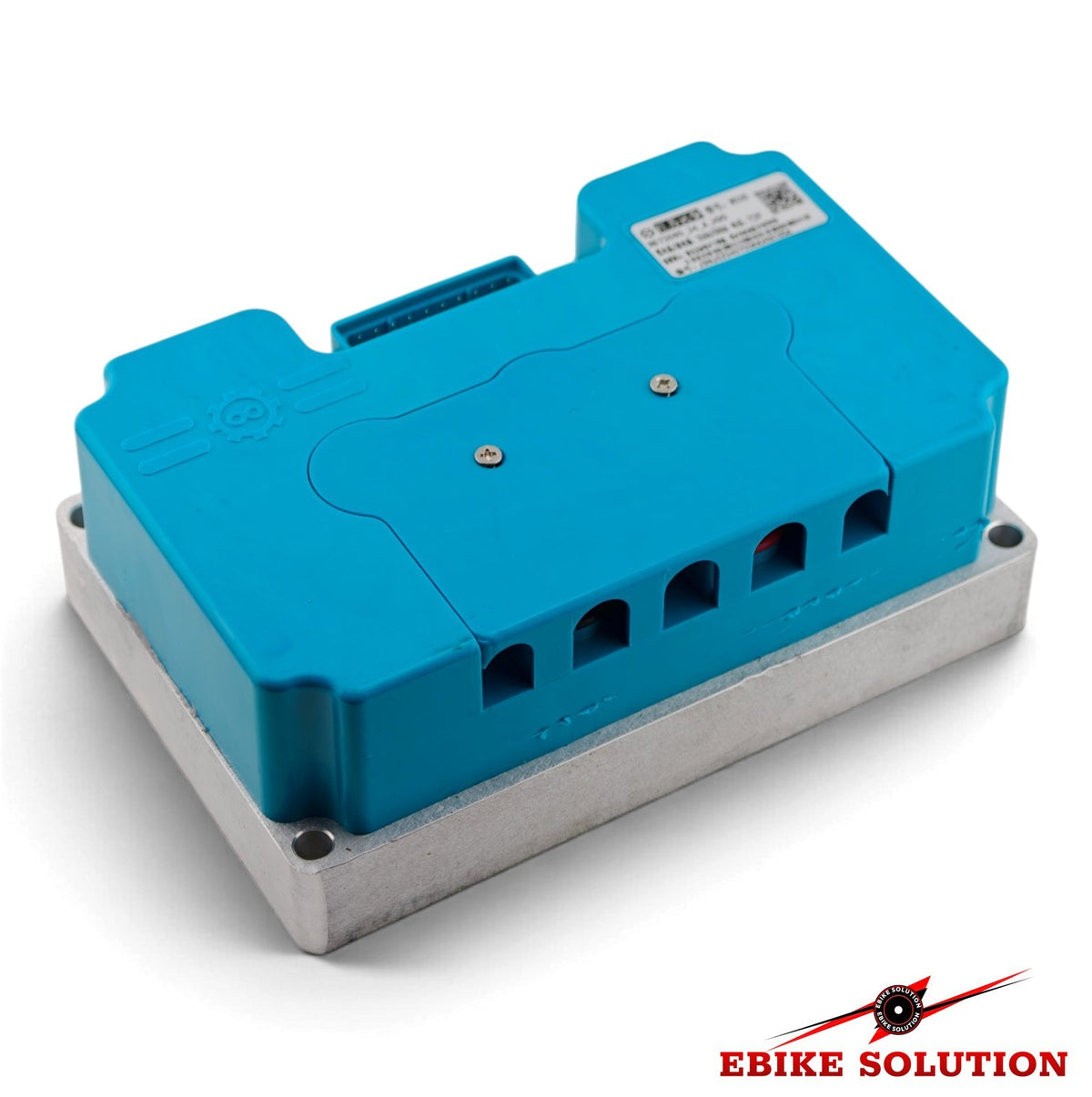

- Protective Aluminium Housing: Strong metal casing assists with controller protection and heat dissipation.
- Wide Application: Suitable for compatible high-power motorcycles, scooters, go-karts, buggies, ATVs and custom brushless motor projects.
Technical Specifications
| Brand | FarDriver |
| Model | ND72680 |
| Controller Type | Programmable sine-wave brushless motor controller |
| System Class | 72V-class compatible systems |
| Maximum Controller Voltage | 88V peak – confirm the battery's fully charged voltage before connection |
| Maximum DC Current | 350A battery / bus current |
| Maximum Phase Current | 680A |
| Suggested Motor Range | Approximately 6–8kW, depending on the complete system and configuration |
| Motor Feedback | Hall-sensor motor version as standard; check the exact version supplied |
| Programming | Compatible FarDriver mobile application or PC software with the required communication hardware |
| Protection Rating | Manufacturer-stated IP67 |
| Housing Material | Aluminium alloy |
Installation and Safety Information
- The controller must be correctly programmed for the battery, motor and vehicle before full-power operation.
- The battery, BMS, contactor, fuse, connectors and power cables must safely support the programmed battery-current limit.
- Never reverse the positive and negative battery connections, as incorrect polarity may permanently damage the controller.
- Install the controller securely in a ventilated position with adequate heat transfer and protection from impact.

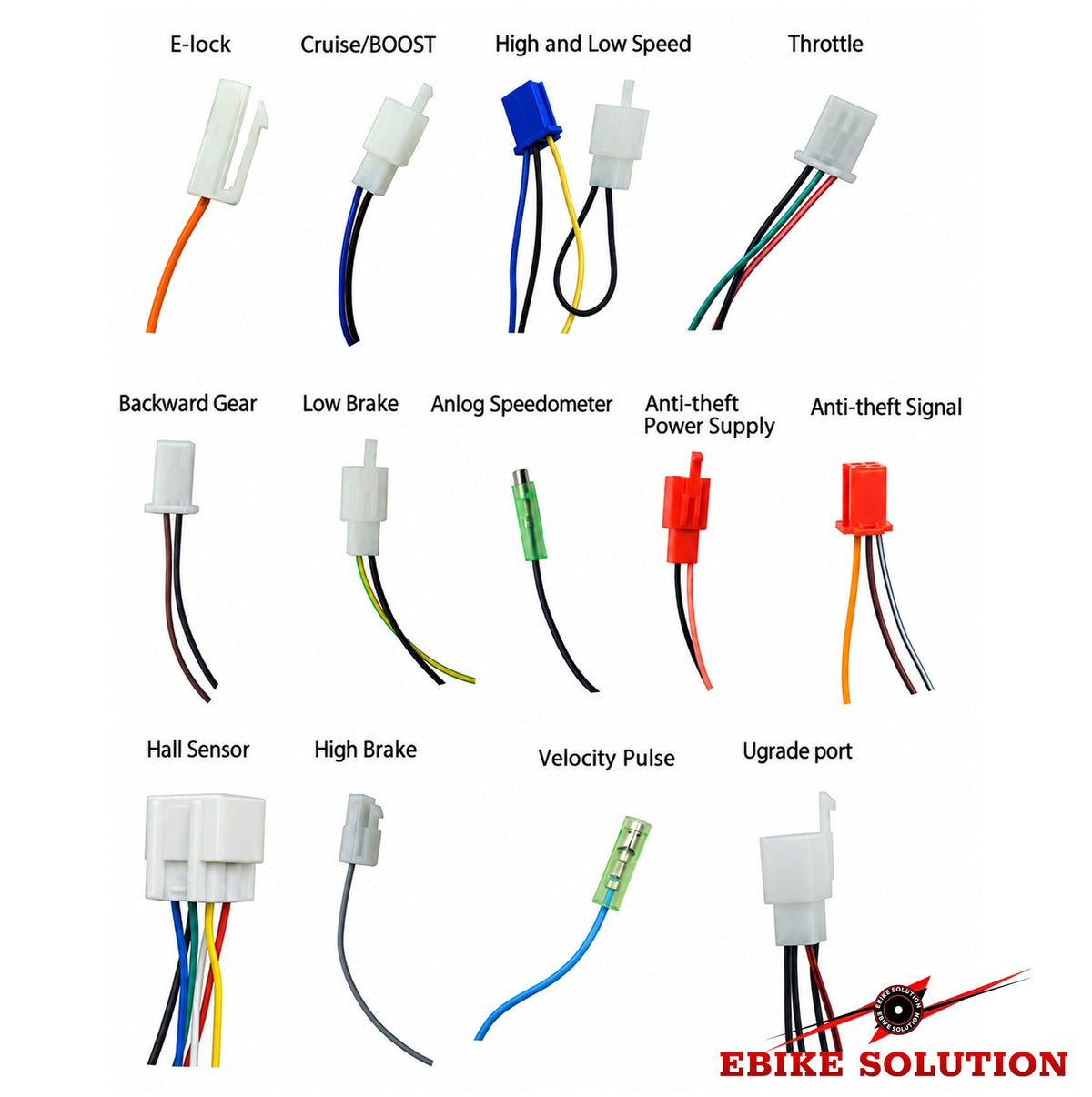

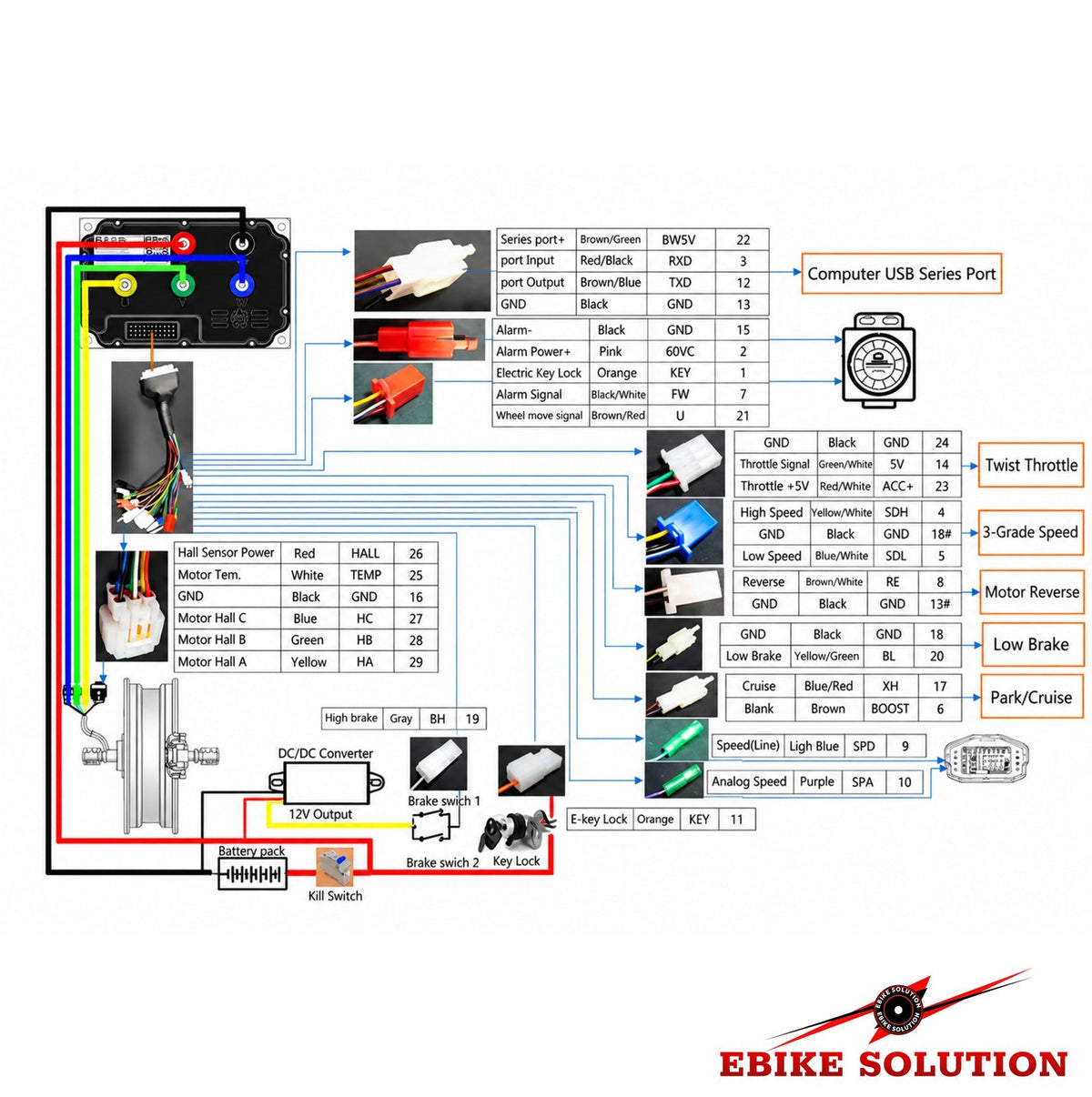

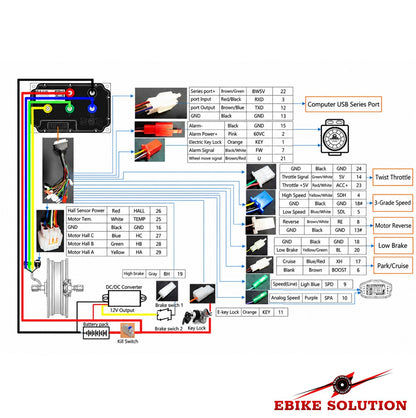

- Do not assume compatibility with an existing display, throttle or wiring harness. Connector shape alone does not confirm the correct pin arrangement.
- Professional installation and programming are strongly recommended due to the high voltage and current capability of this controller.
Package Contents

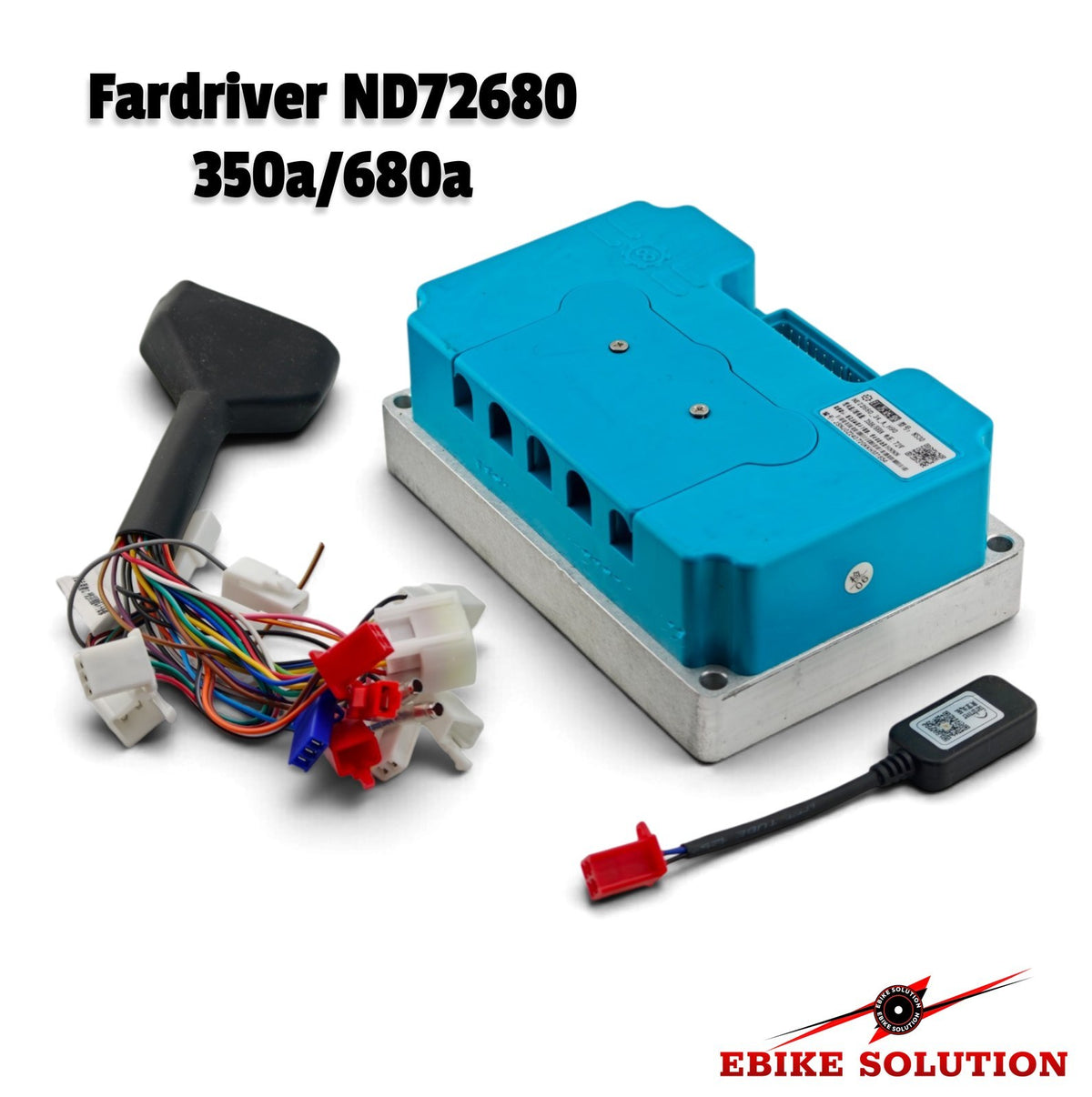

- 1 x FarDriver ND72680 motor controller set
