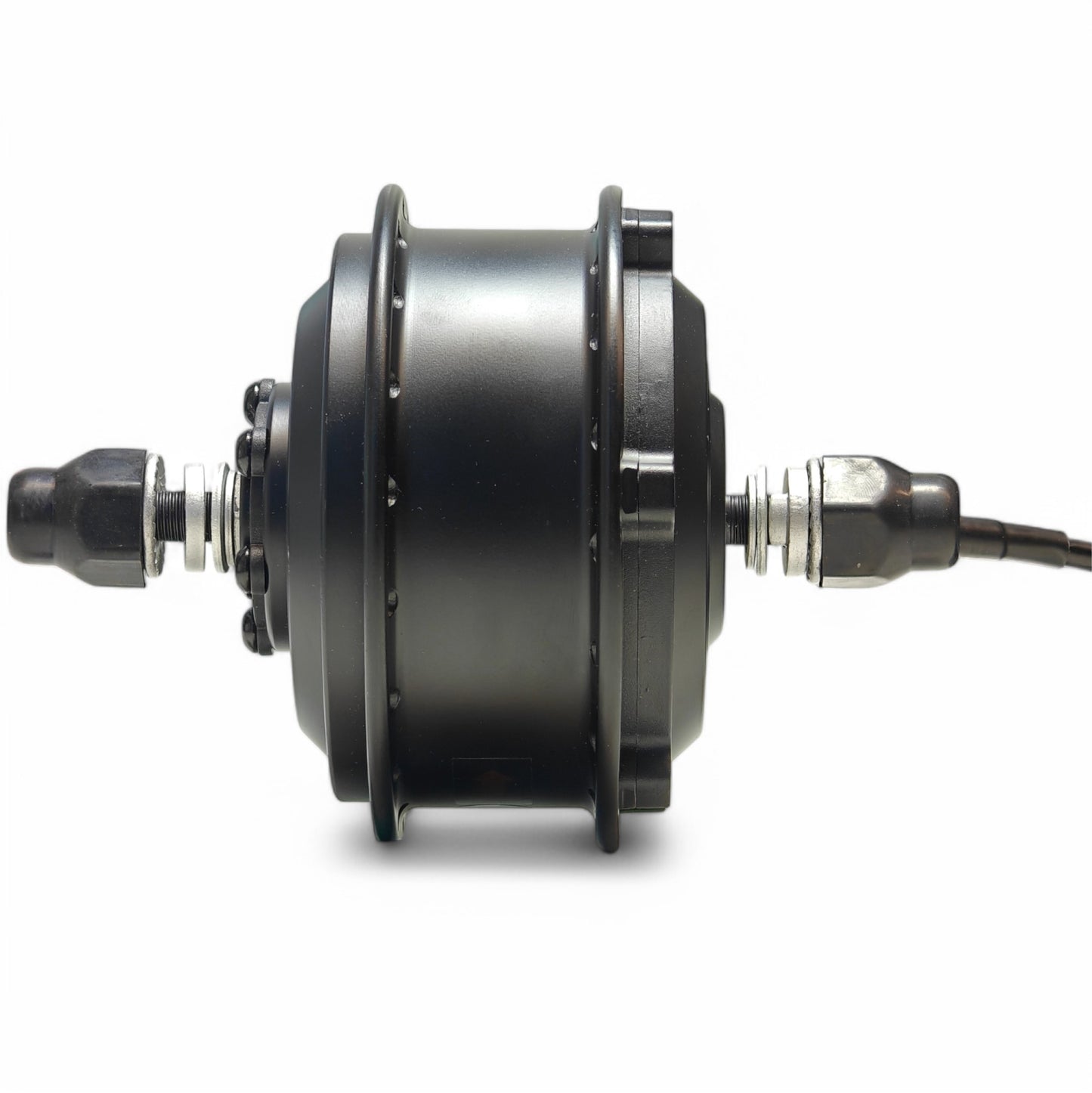

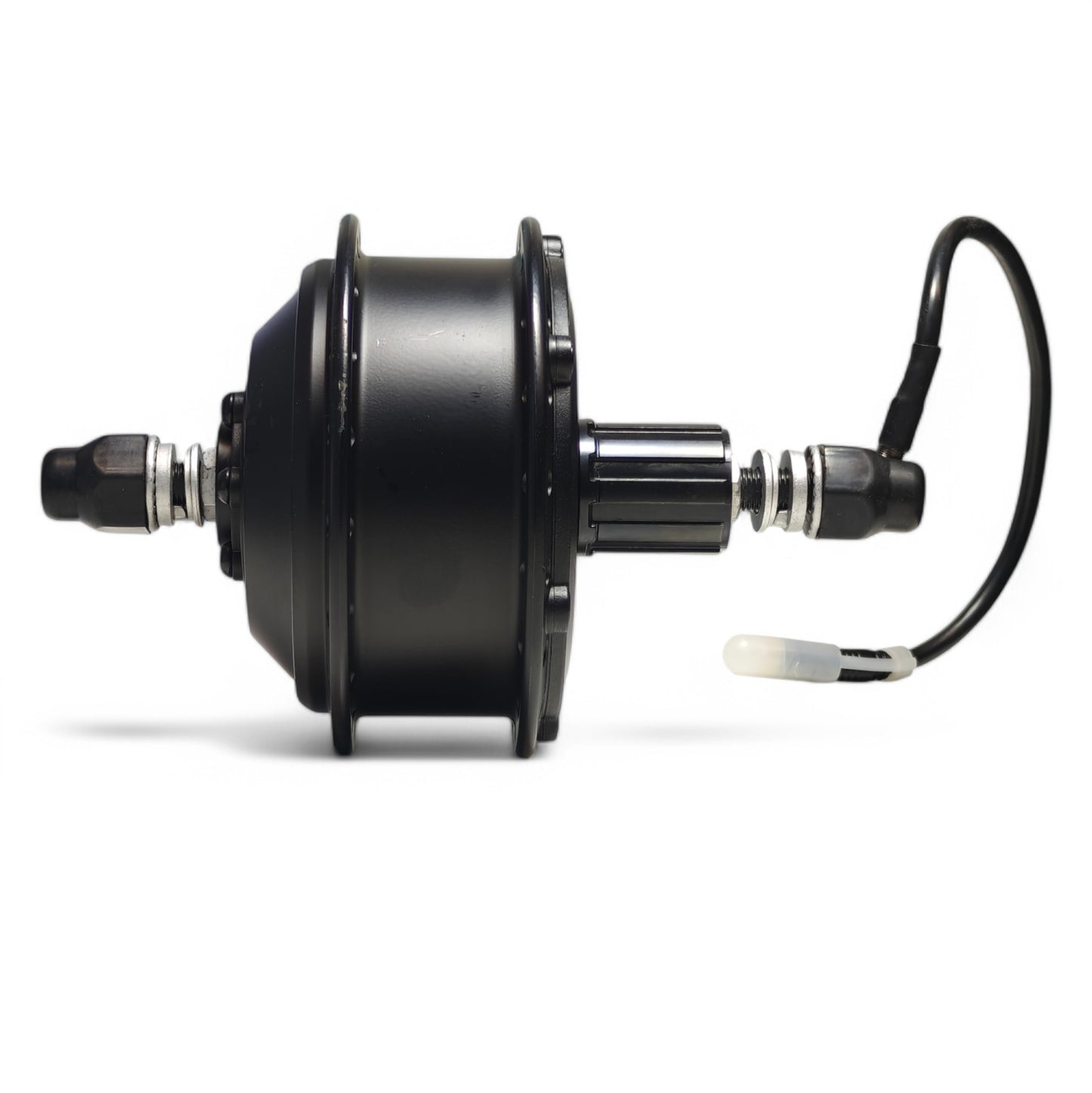

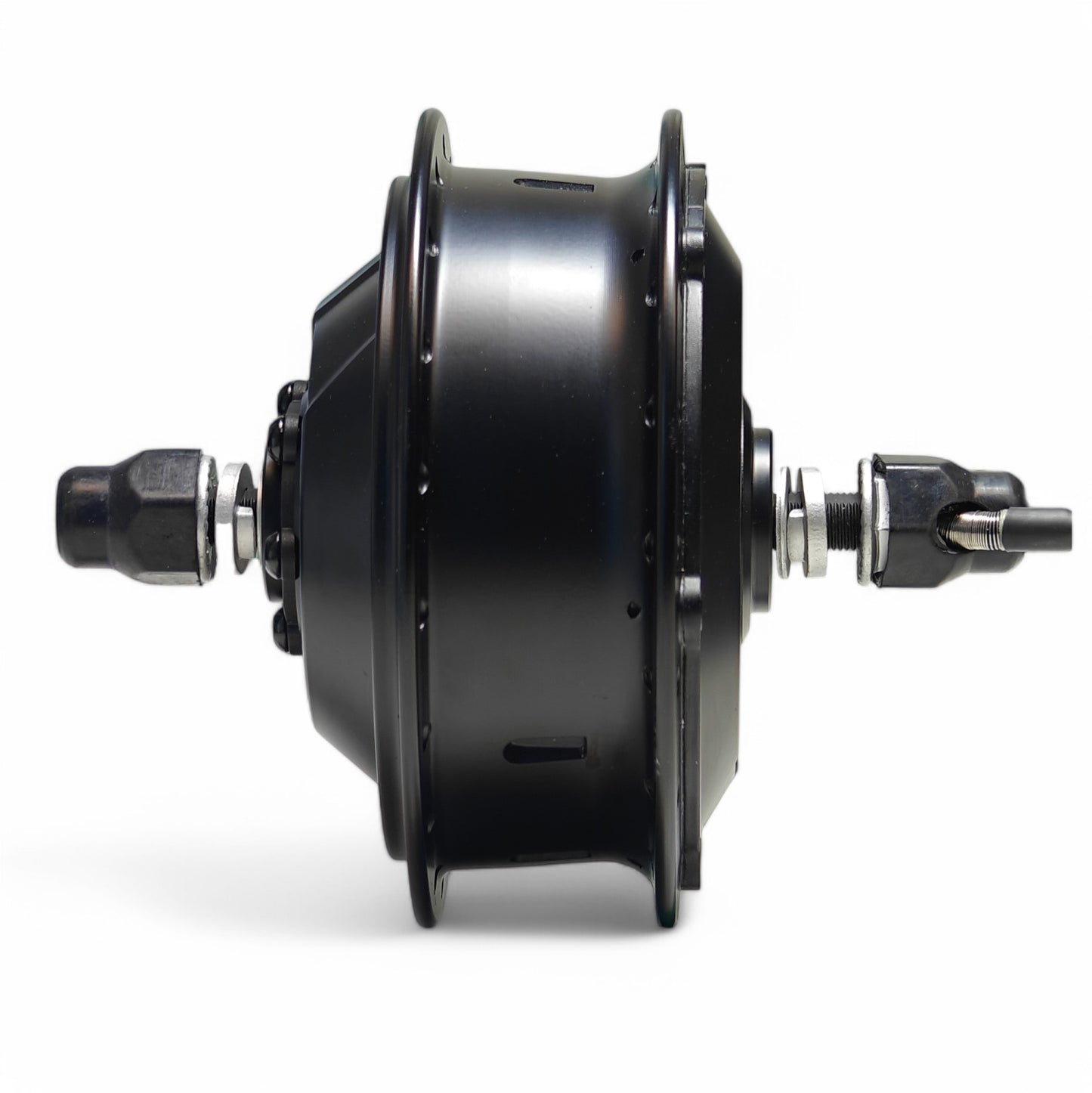

MXUS 36V 48V 250W 350W 500W High Speed Brushless Gear Hub Motor

MXUS 36V 48V 250W 350W 500W High Speed Brushless Gear Hub Motor

£115.00 GBP
£115.00 GBP
Sale Sold out
Tax included. Free Shipping
Model

Low stock

Motor Specifications

Model Position Voltage (V) Power (W) Weight (Kg) Reduction Ratio Wheel Diameter (Inch) Speed (RPM) Magnet Poles (2P) Fork Size (mm) Freewheel Brake Type Efficiency (%) IP Grade

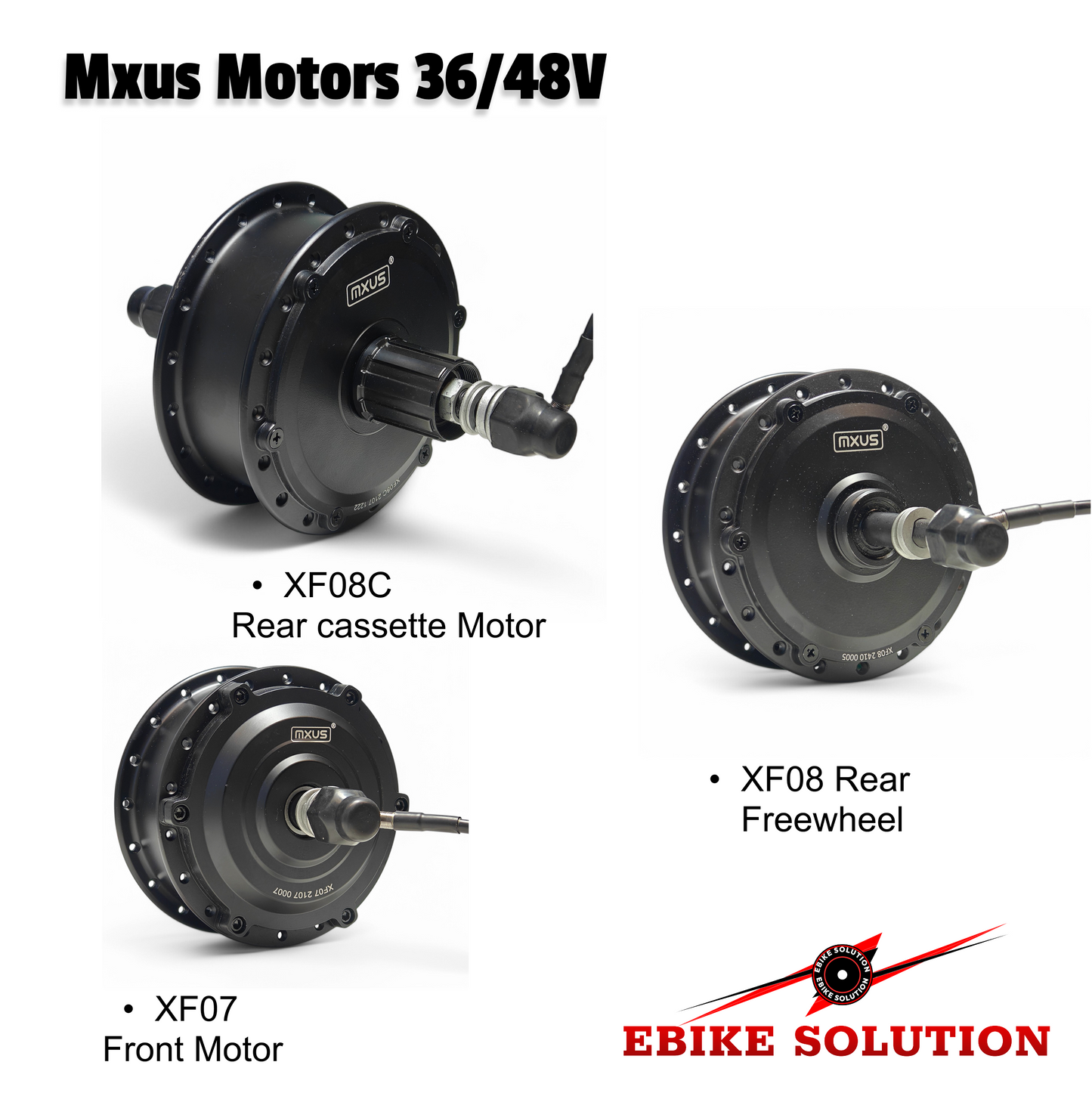

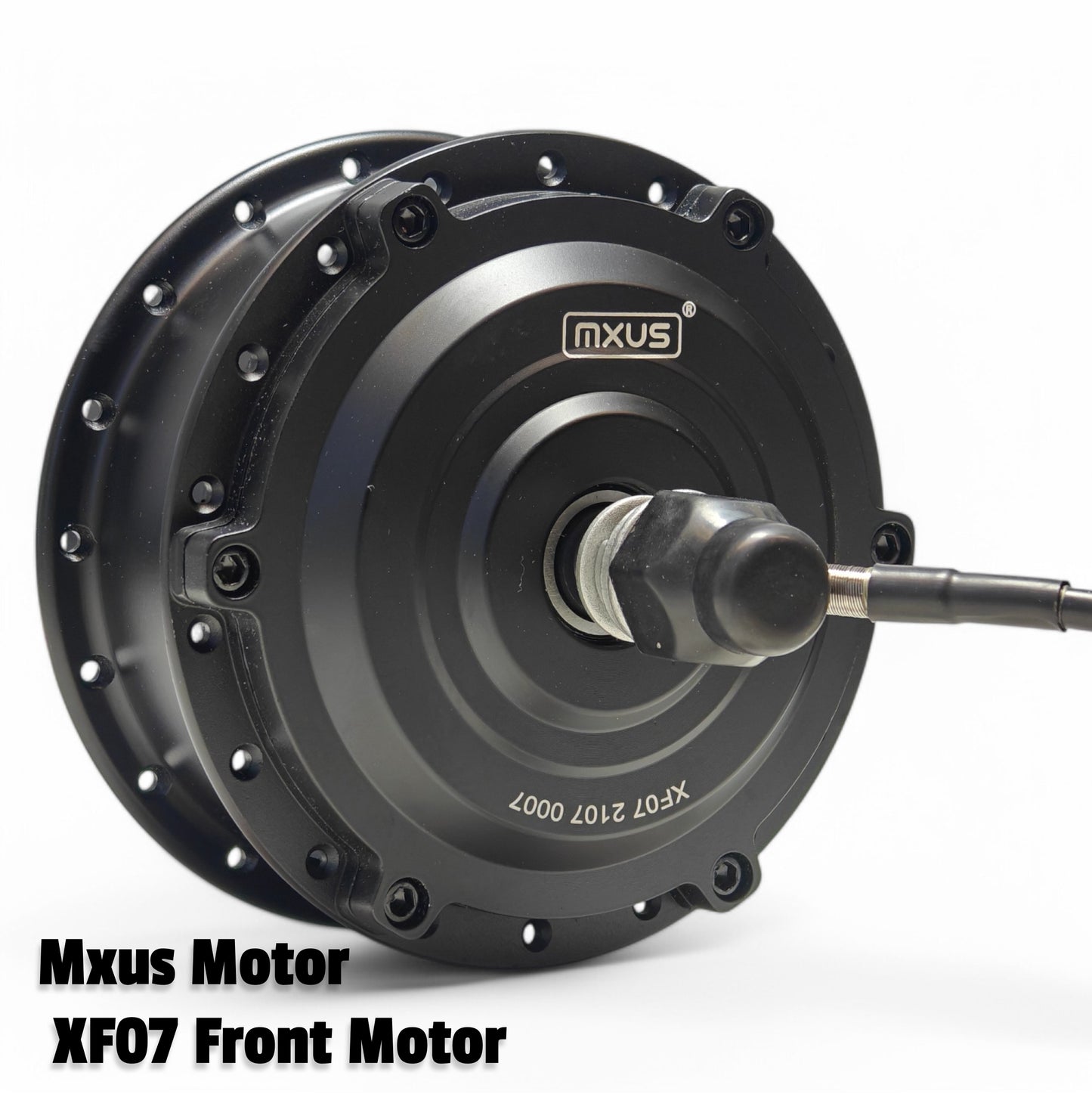

XF07 Front 36 250 2.8 1:4.4 20-28 270 10 100 - V/Disk brake ≥ 78% IP54

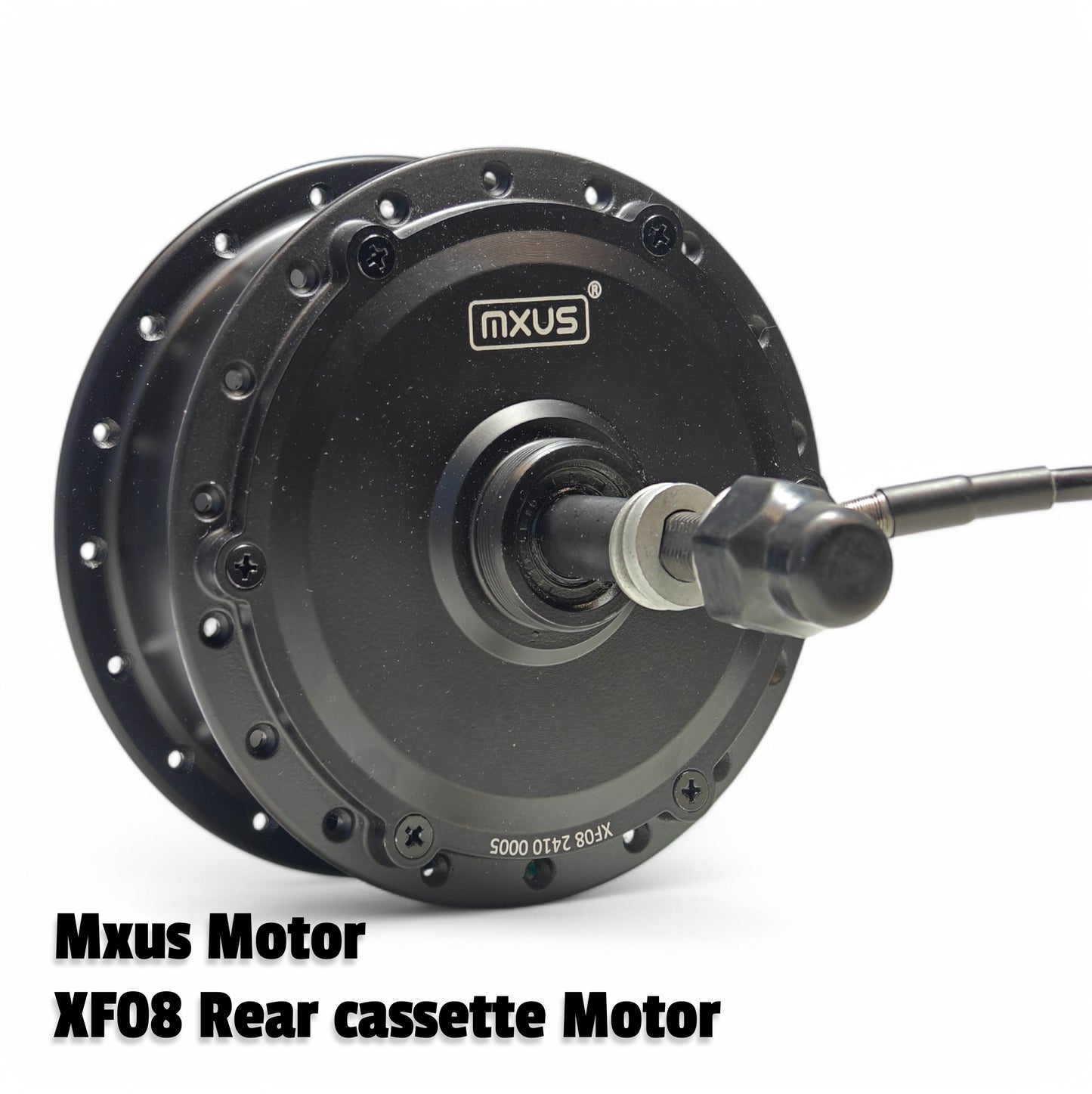

XF08 Rear 36 250 2.8 1:4.4 20-28 270 10 136 6s-9s V/Disk brake ≥ 78% IP54

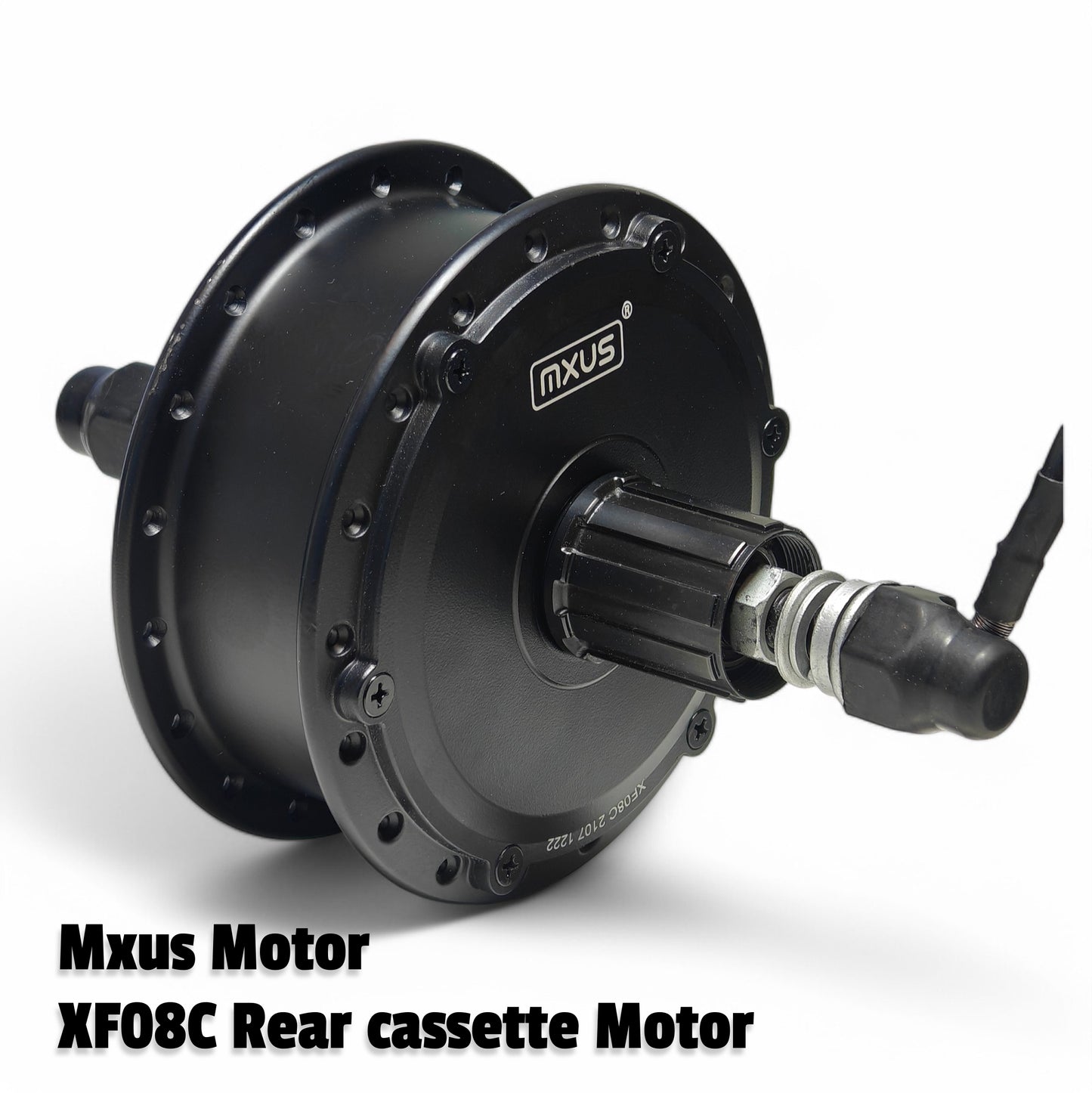

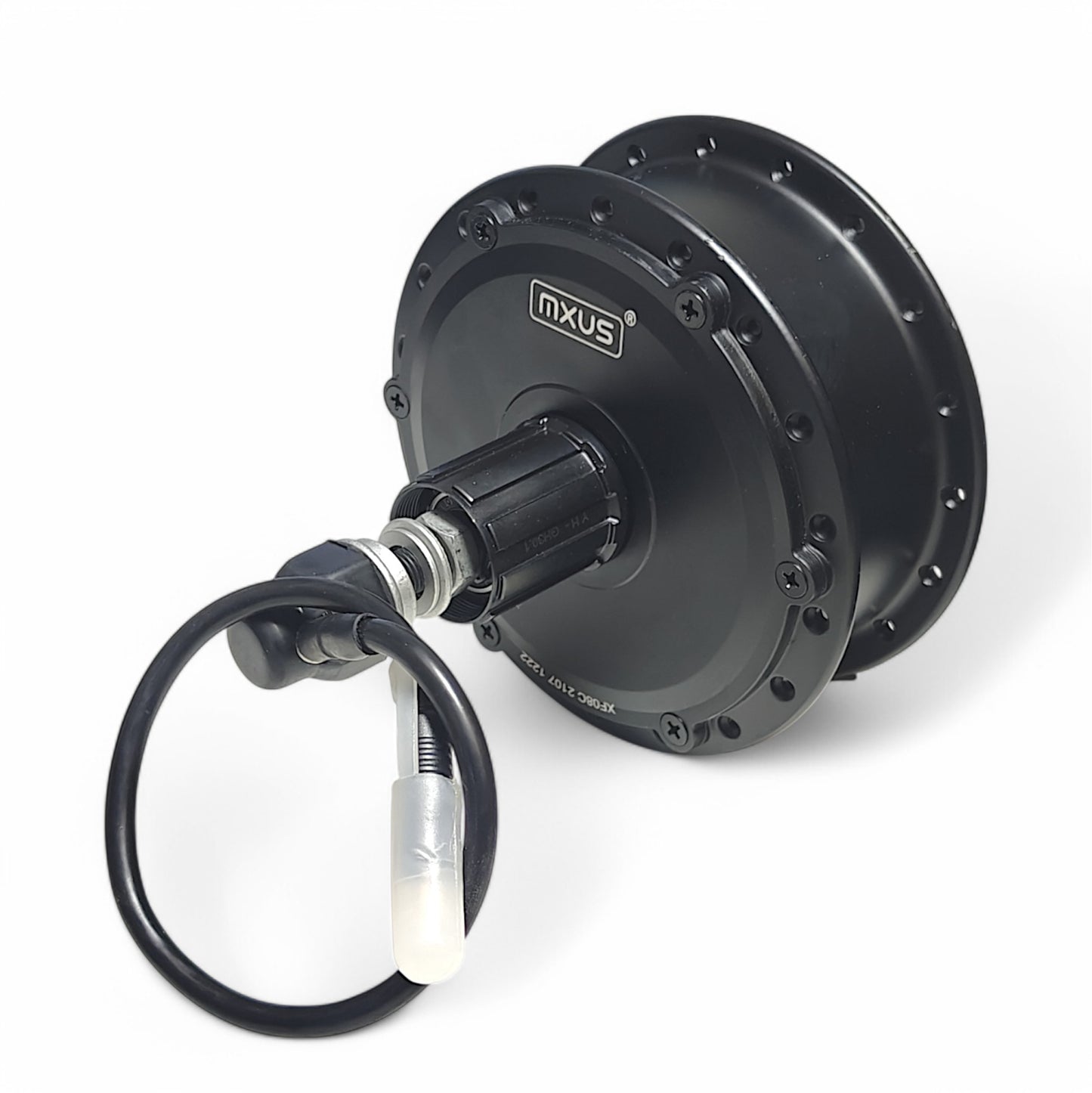

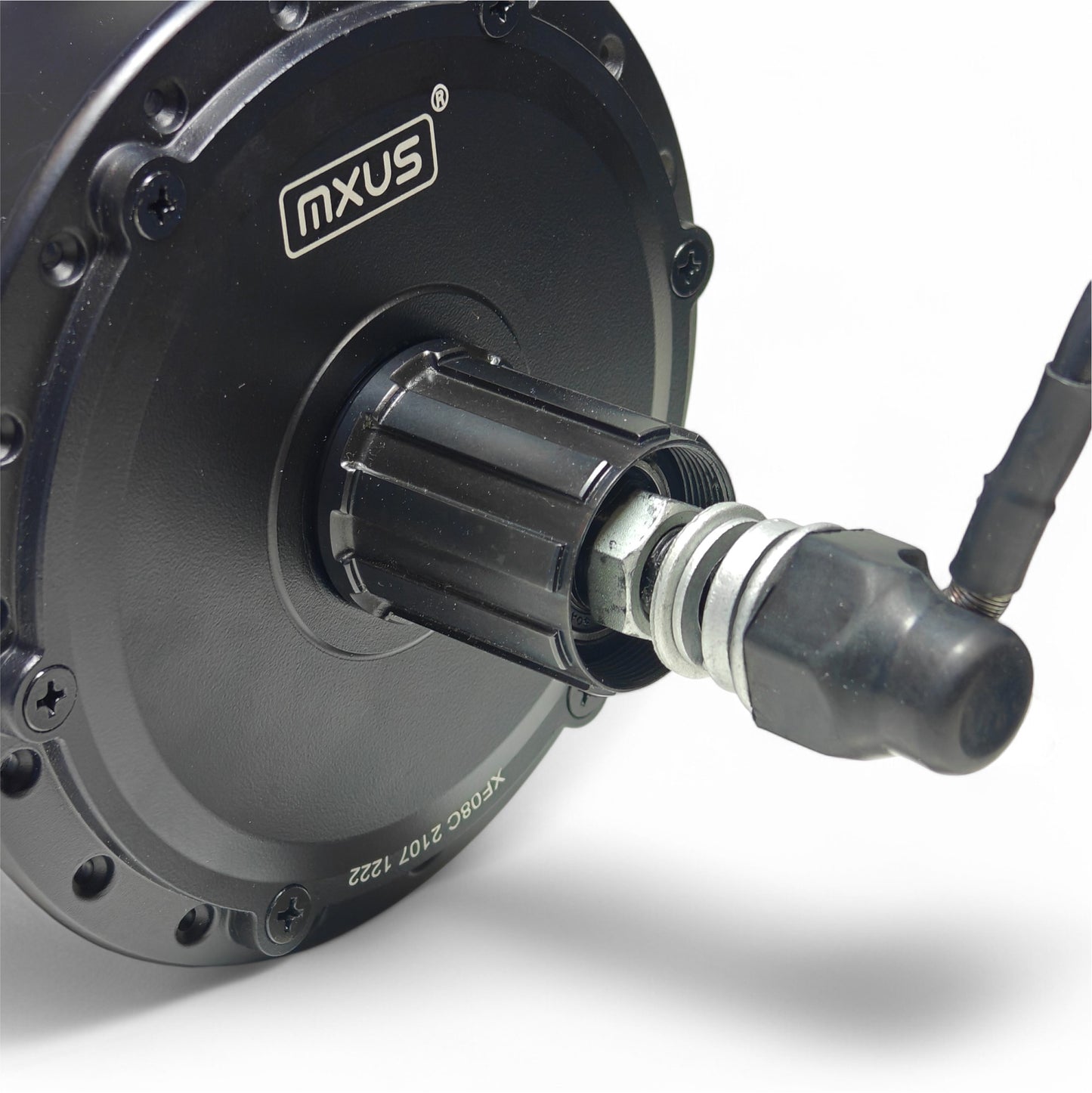

XF08C Rear 36 250 3 1:4.4 20-28 270 10 144 8s-10s cassette V/Disk brake ≥ 78% IP54
XF15F Front 48 500 3.7 1:5 20-28 380 10 100 - V/Disk brake ≥ 78% IP54
XF15R Rear 48/36 500/350 3.7 1:5 20-28 380 10 139 6s-9s V/Disk brake ≥ 78% IP54
XF15C Rear 48/36 500/350 3.9 1:5 20-28 380 10 145 8s-10s cassette V/Disk brake ≥ 78% IP54


    Packing List

    • 1 pcs MXUS Motor

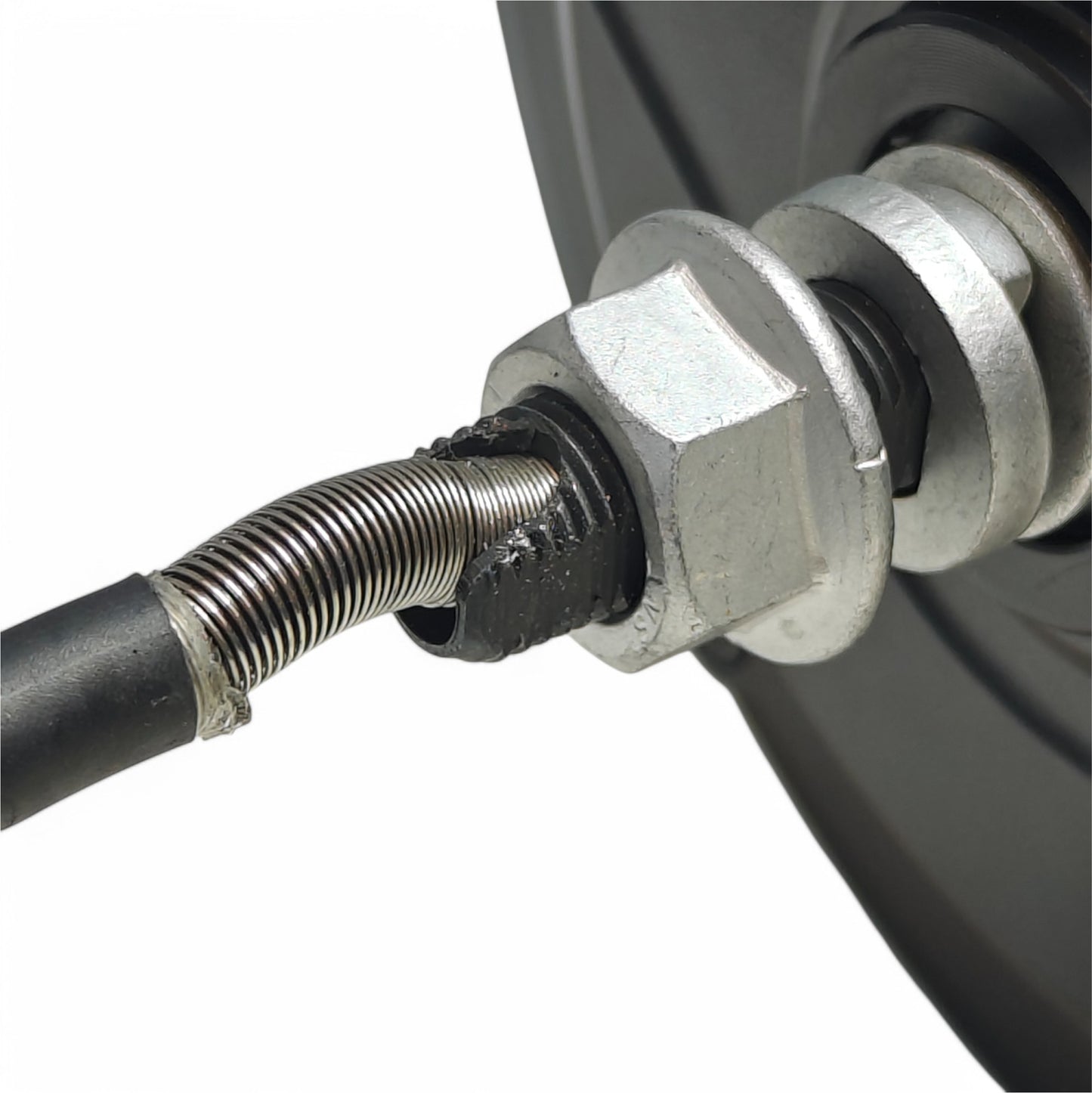

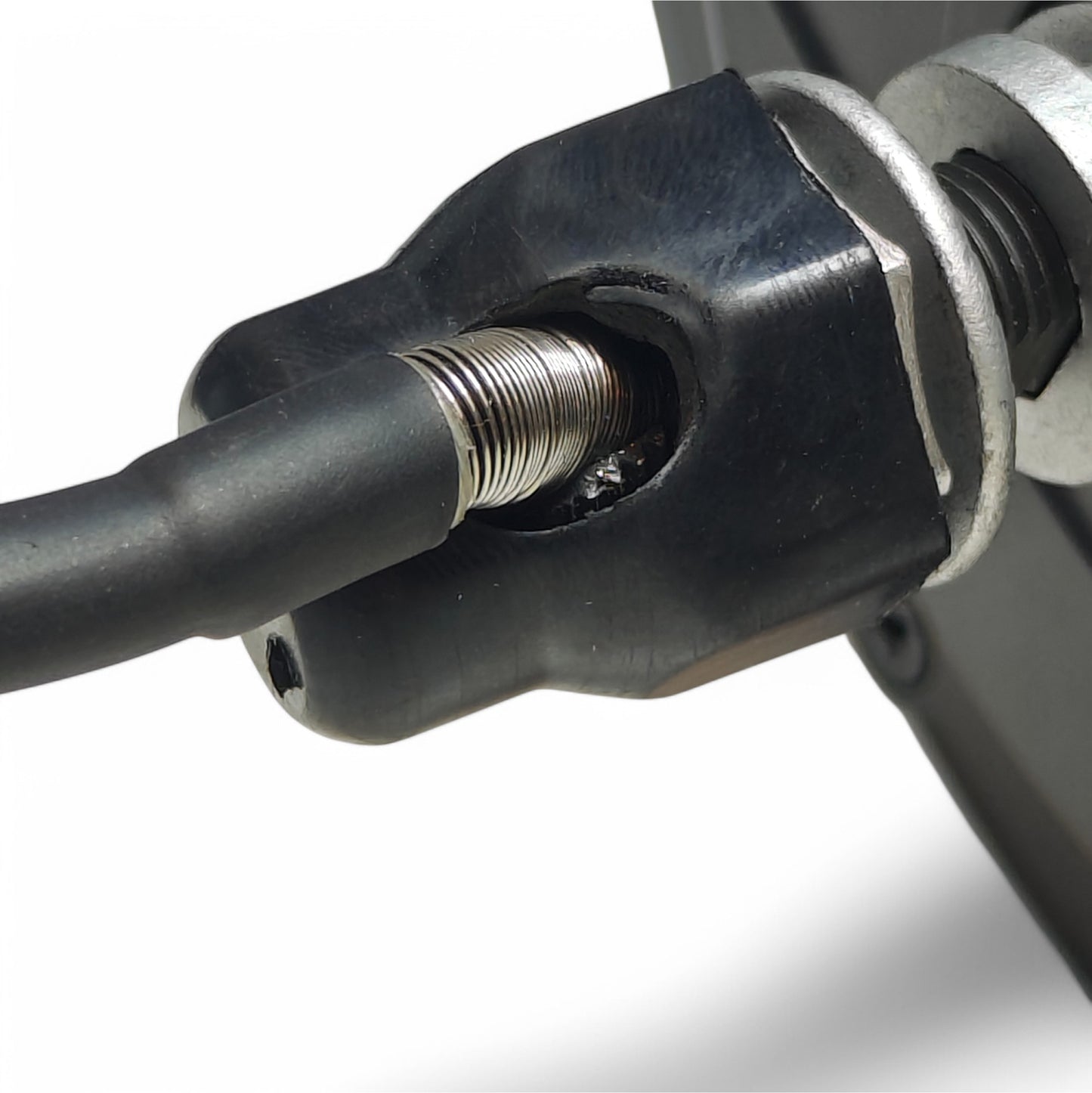

    • Motor Cable:
      • Front motor: 1.5M 9 PIN Waterproof cable
      • Rear Freewheel and Rear Cassette Freewheel motor: 1M 9 PIN Waterproof cable

    Model Torque (NM)

    Model Torque (NM)
    XF07 36V350W 35
    XF08 36V250W 35
    XF08C 36V250W 35
    XF15F 48V350W 65
    XF15R 48V500W 65
    XF15C 48V500W 65
    XF15C 36V350W 50
    XF15R 36V350W 50



    Package Includes:

    •  1 x Motor
