Sine Wave Controller 40A 36V 48V 60V Dual Mode DC Hub Motor For SW900

Product Description:

• Dual Mode Operation: Designed to work seamlessly with or without the hall sensor plug for maximum flexibility.
• High Power Delivery: Engineered for high performance, pushing up to 2000W of power with a 40A peak current and 20A rated current.
• Self-Learning Function: For optimal compatibility, run the self-learning phase to easily pair the controller with your specific hub motor.
• Robust Build: Built with 15 reliable mosfets to ensure stable, long-lasting power management.

Product Overview:

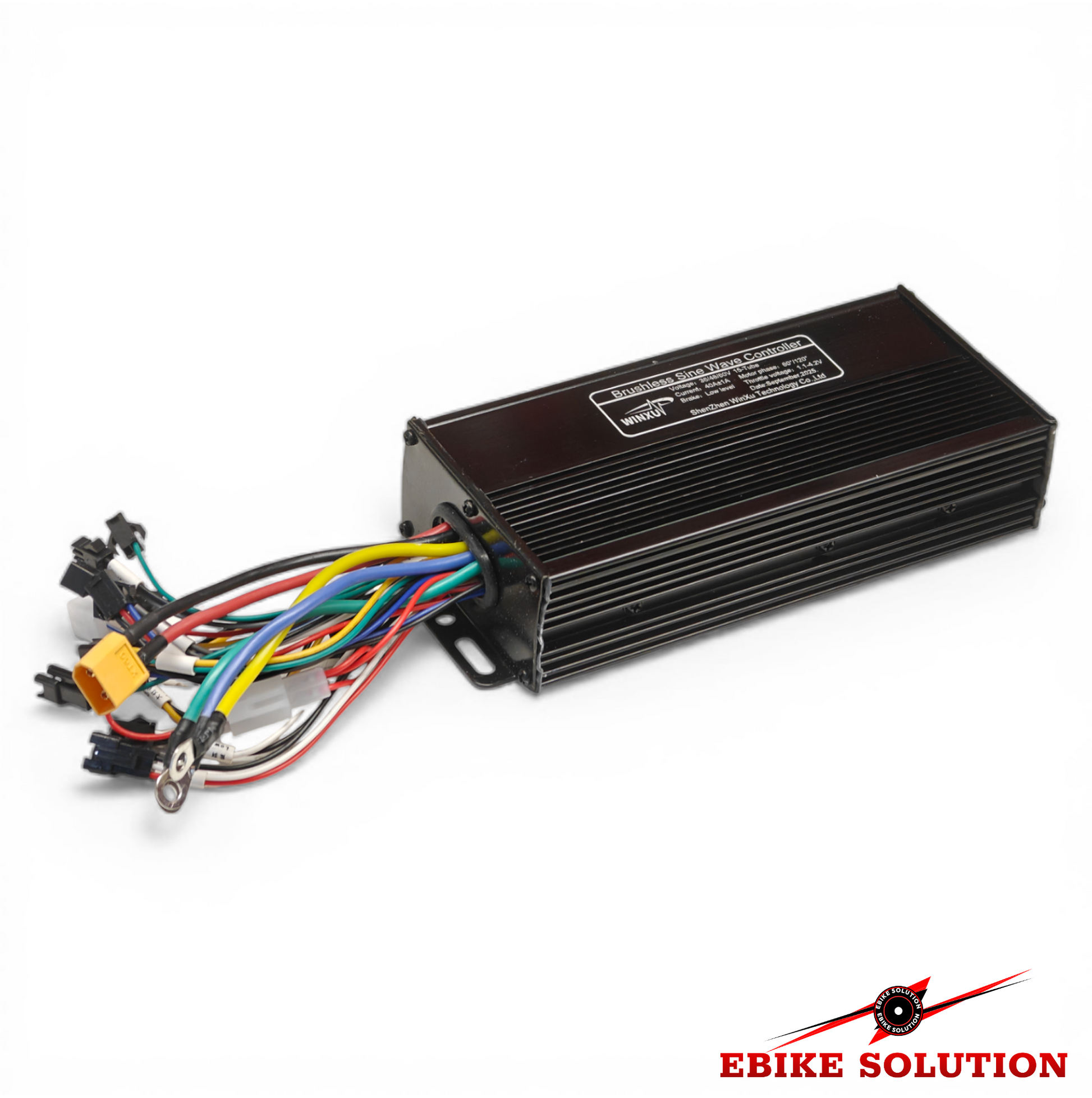

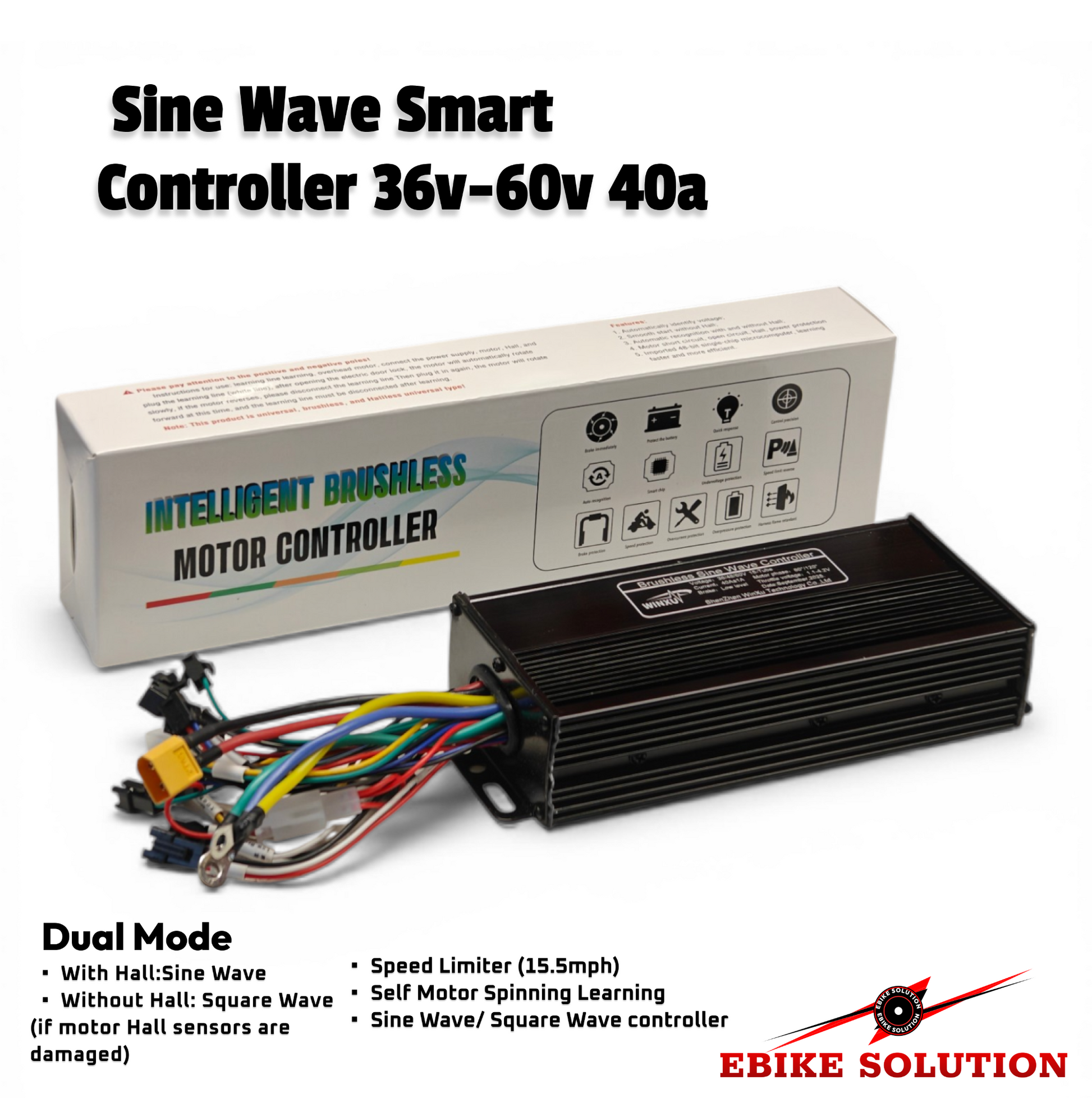

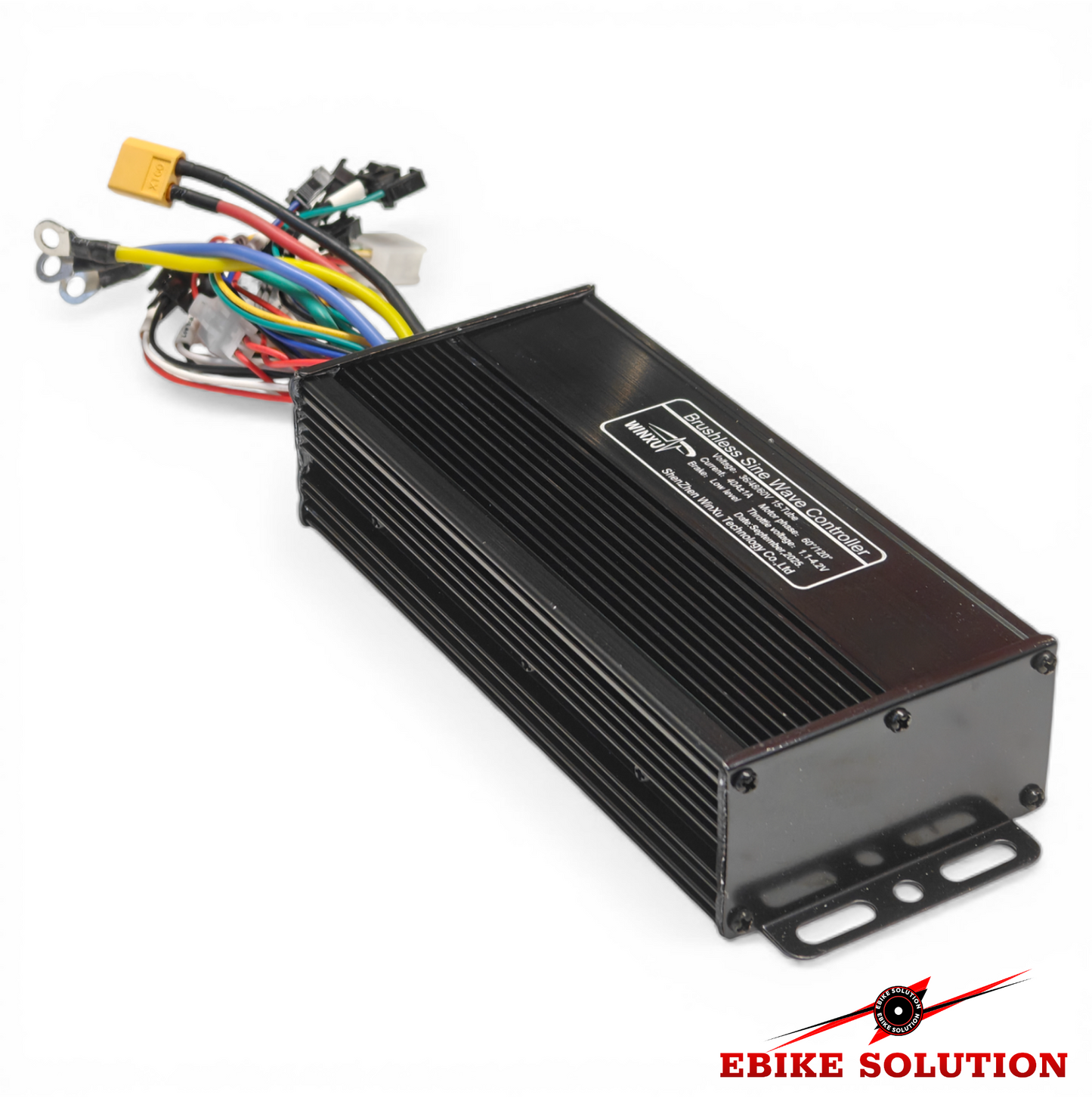

This 40A Sine Wave Dual Mode Controller is a high-performance upgrade or replacement for your e-bike hub motor, delivering up to 2000W of smooth, reliable power. Designed for easy integration, it features a self-learning function for straightforward motor pairing and operates efficiently in both hall and sensorless modes. It is fully compatible with popular displays like the SW900 and UKC1 (OMD Protocol).

Key Features:

• Dual mode functionality (works with or without hall plug)
• Up to 2000W power capacity
• 15-Mosfet design for efficient heat and power management
• Self-learning wires for easy motor pairing
• UK stock with fast delivery

Specifications:

• Type: Brushless Sine Wave Controller (15 Mosfets)
• Rated Voltage: DC 48-60V (Compatible with 36V/48V/60V/72V systems as listed)
• Power Output: Up to 2000W
• Maximum/Peak Current: 40±1A
• Rated Current: 20A
• Speed Setting: 1-4.2V
• Brake Input: Low Level
• Weight: Approx. 650g
• Cable Length: Approx. 10-16cm

Compatibility:

• Displays: Compatible with SW900 and UKC1 (OMD Protocol) displays.
• Motors: Suitable for DC Brushless Hub Motors.

Product Safety & Legal Compliance:

• UK Law: It is illegal to ride electric scooters or electric converted bikes on public roads, pavements, or cycle paths (except under very specific circumstances). They are intended only for use on private land with the owner’s permission.
• Regulations: UK law allows only 250W e-bikes on public roads. This controller is for off-road/private land use or EAPC compliant systems. Not suitable for e-scooters or non-pedal vehicles.
• Battery & Component Safety: Complete systems only (no individual lithium cells). Certified batteries are UN38.3, CE, RoHS, and UKCA approved. Be vigilant for faulty batteries, chargers, or counterfeit plugs lacking essential fuses.
• Charging Safety: Never charge e-bikes overnight while sleeping, and never charge them in escape routes such as corridors or stairwells.
• Installation Safety: Torque arms are required and disc brakes are highly recommended for safety when running high-power setups.

Package Includes:

• 1 × 40A Brushless Motor Controller
