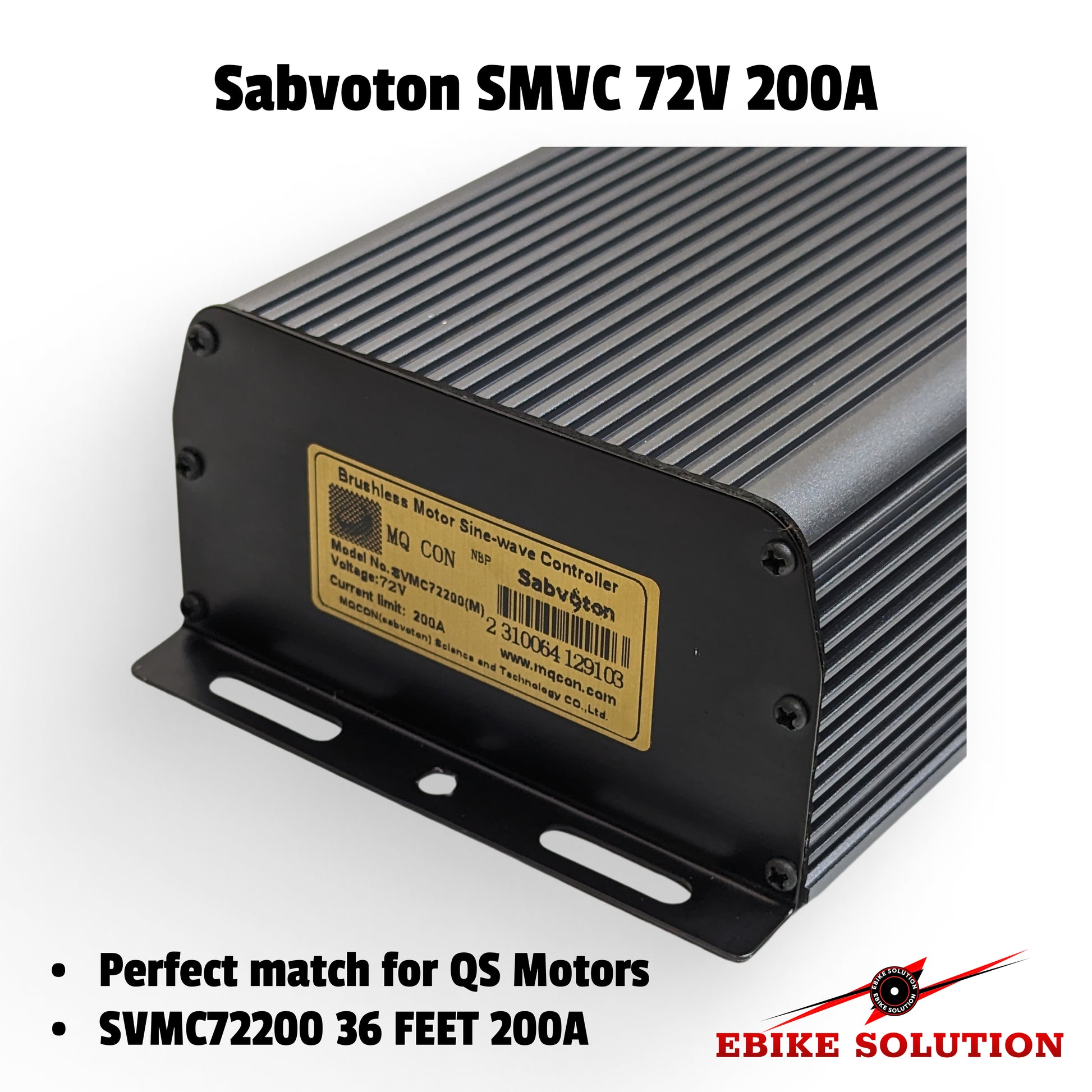

Sabvoton Controller V2 72V 200A Ebike Enduro Stealth Bomber SMVC72200M

• Software download link

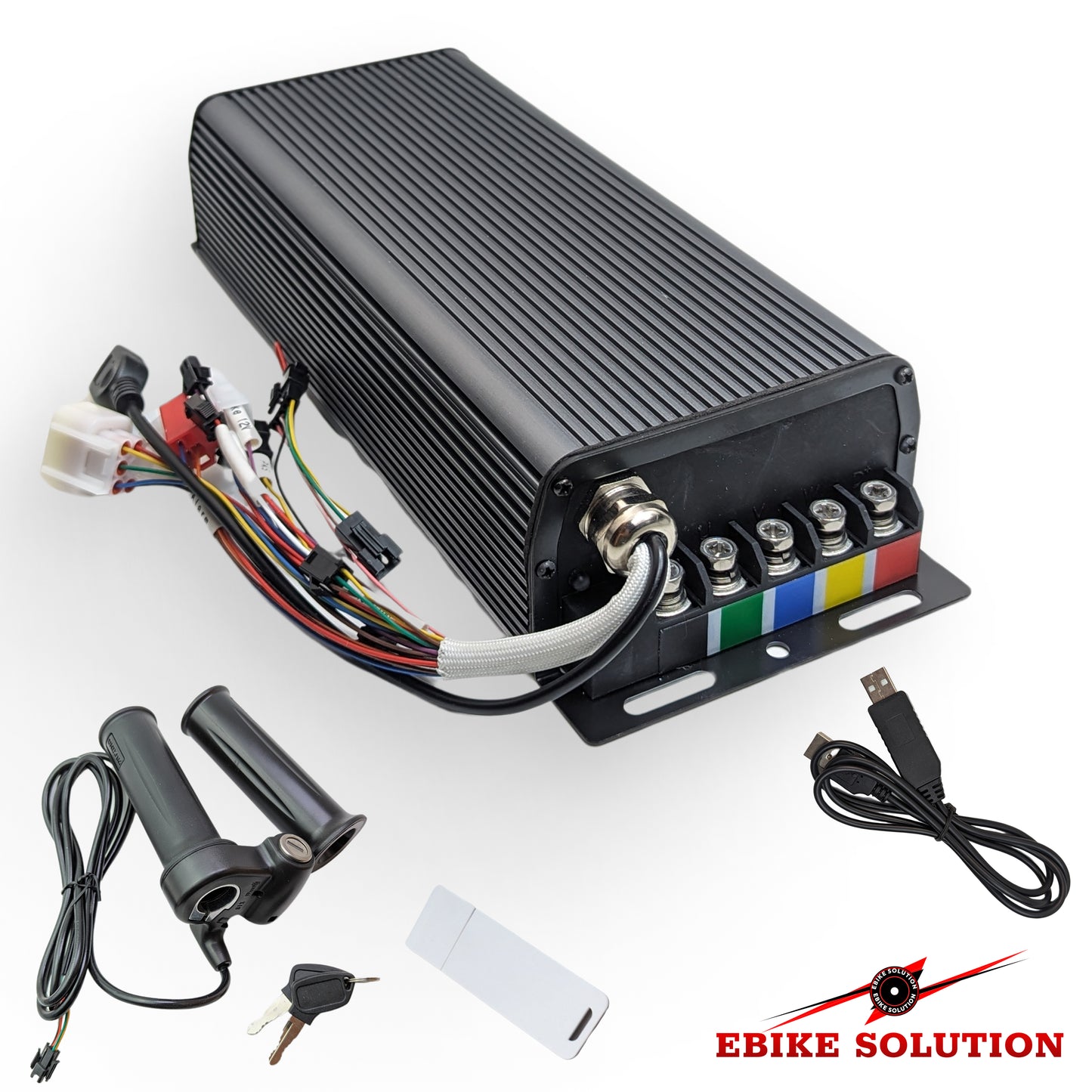

• To be able to use this controller you must use the throttle that comes together with the controller, you must switch on the ignition key and then turn on the display.

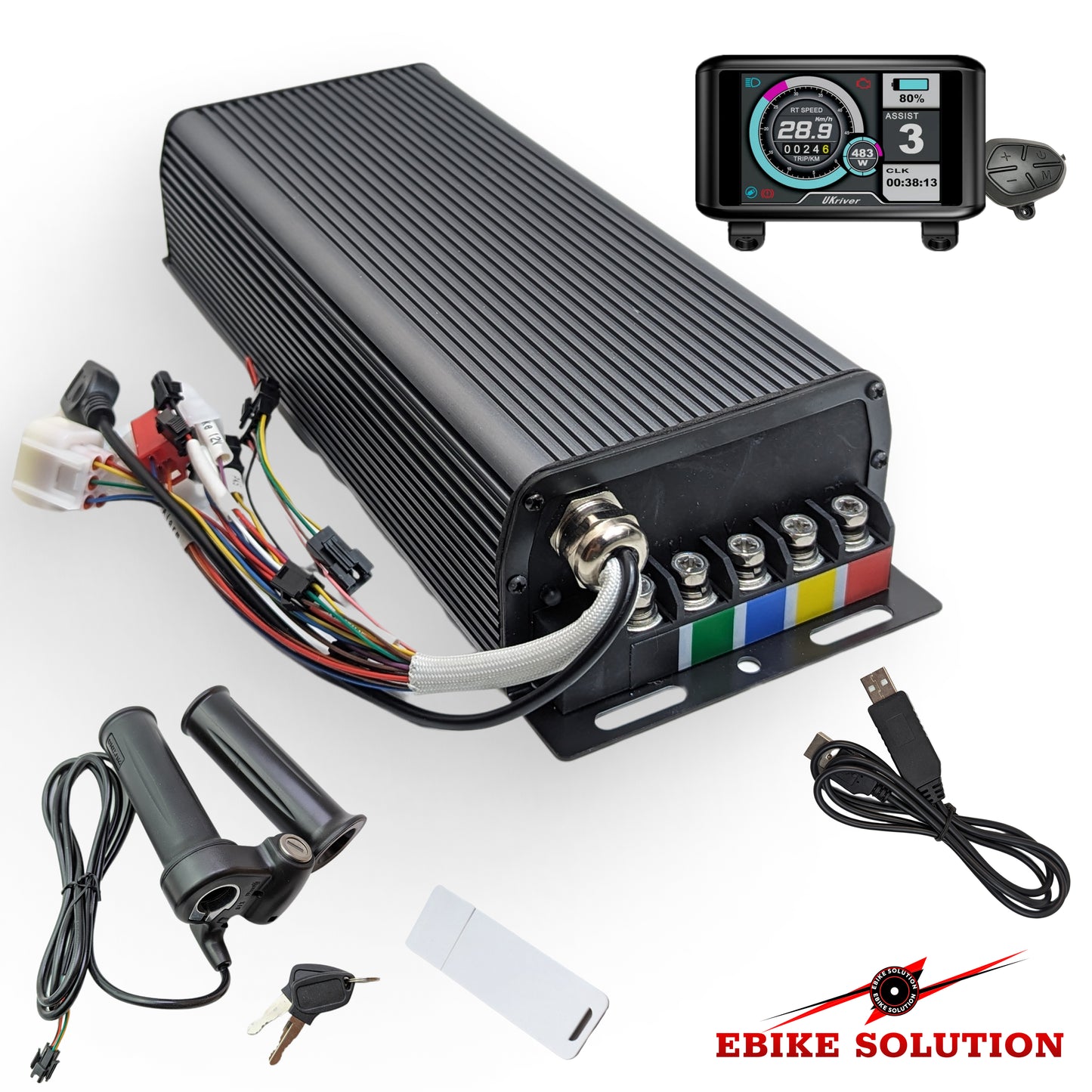

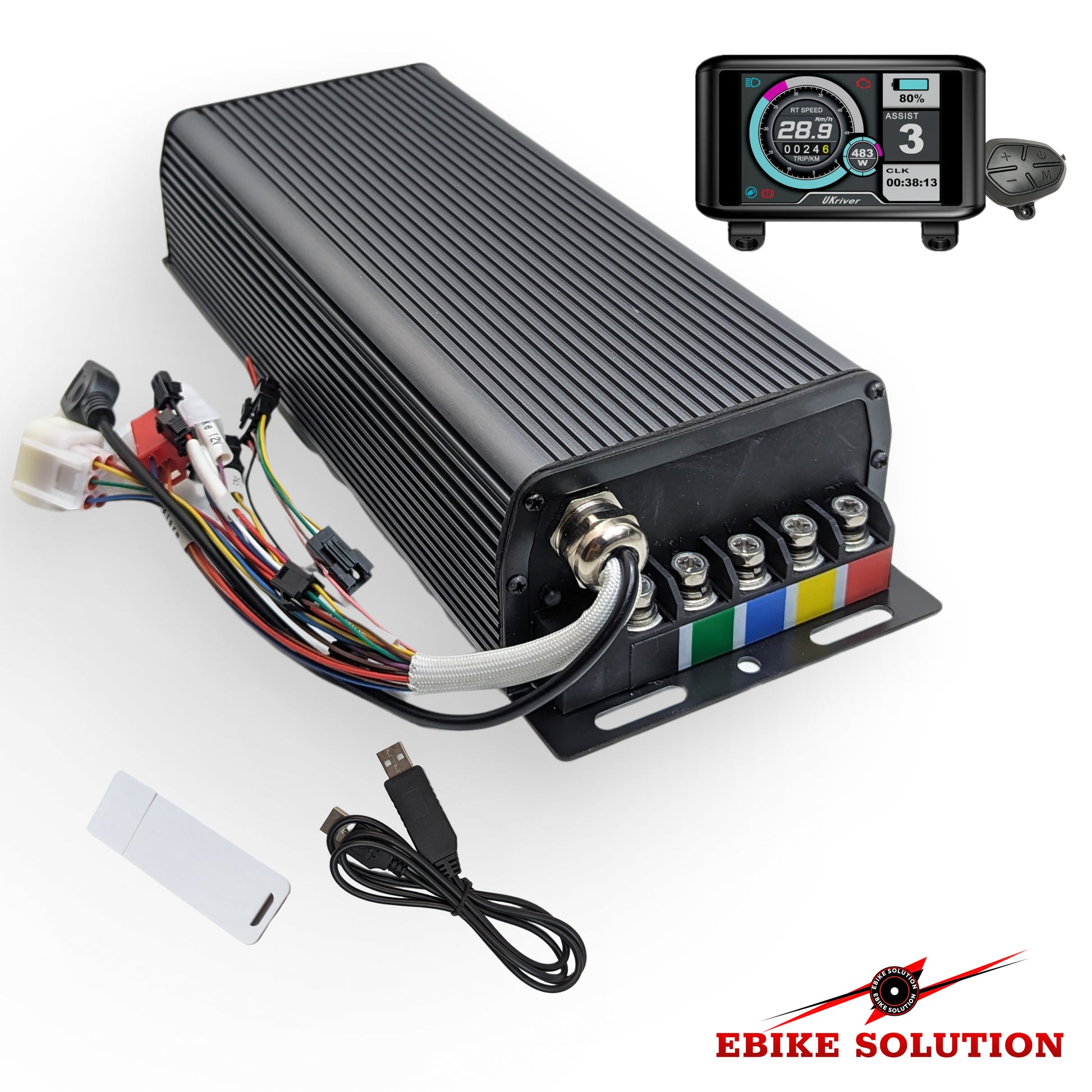

• If you'd  like to get the display you must select option Sabvoton+ UKC1 display ,otherwise you'll get only controller and throttle.
• Throttle its part of the kit for both options as its mandatory to turn on the controller

 Specification:

• Product Description
• DC Current Limit: 200A
• Max. Phase Current: 450A
• Battery Voltage: 24V-72V rated, Max. 90V
• Thermic Probe: KTY83-122

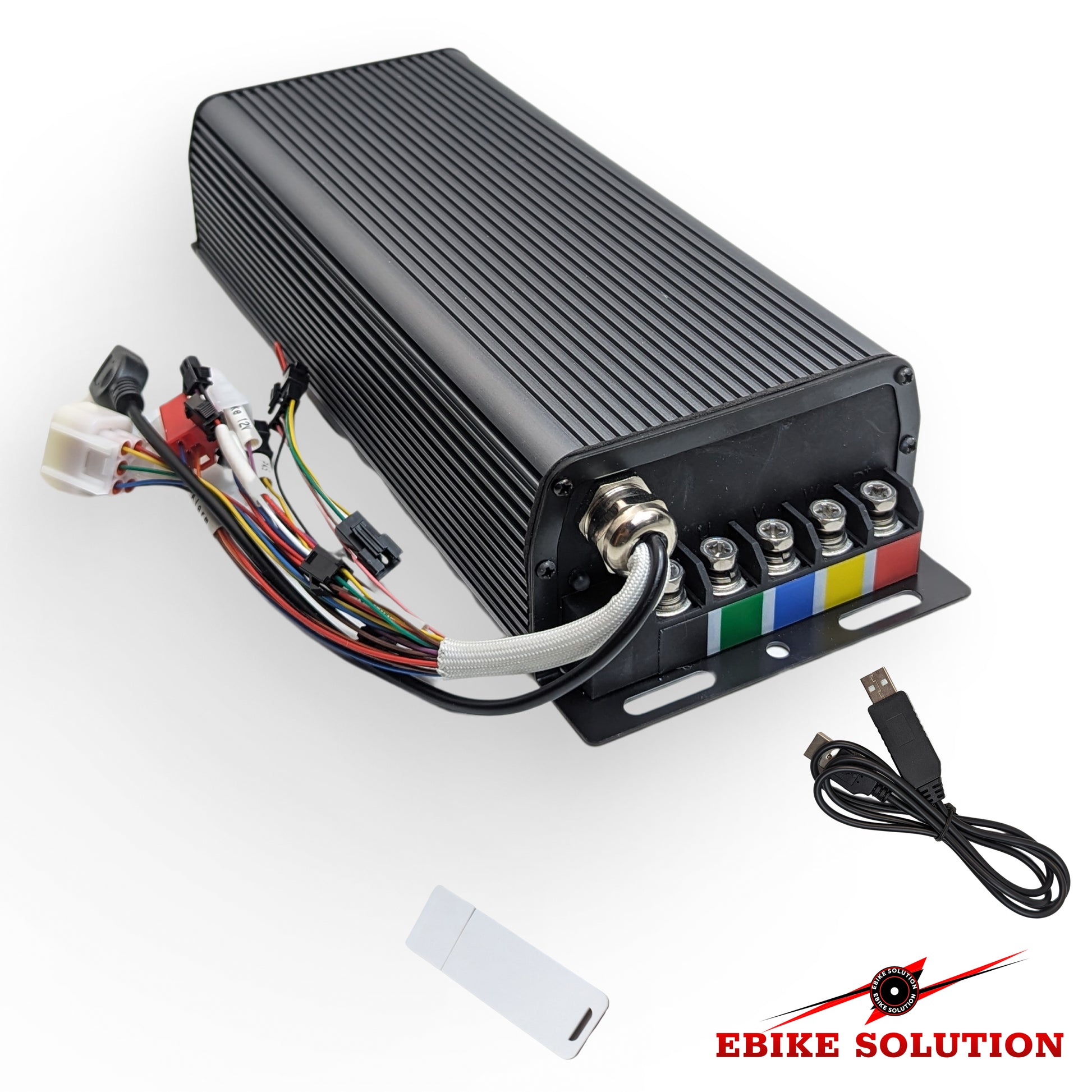

• Including one controller + USB convertor cable
• Default not including bluetooth adapter.

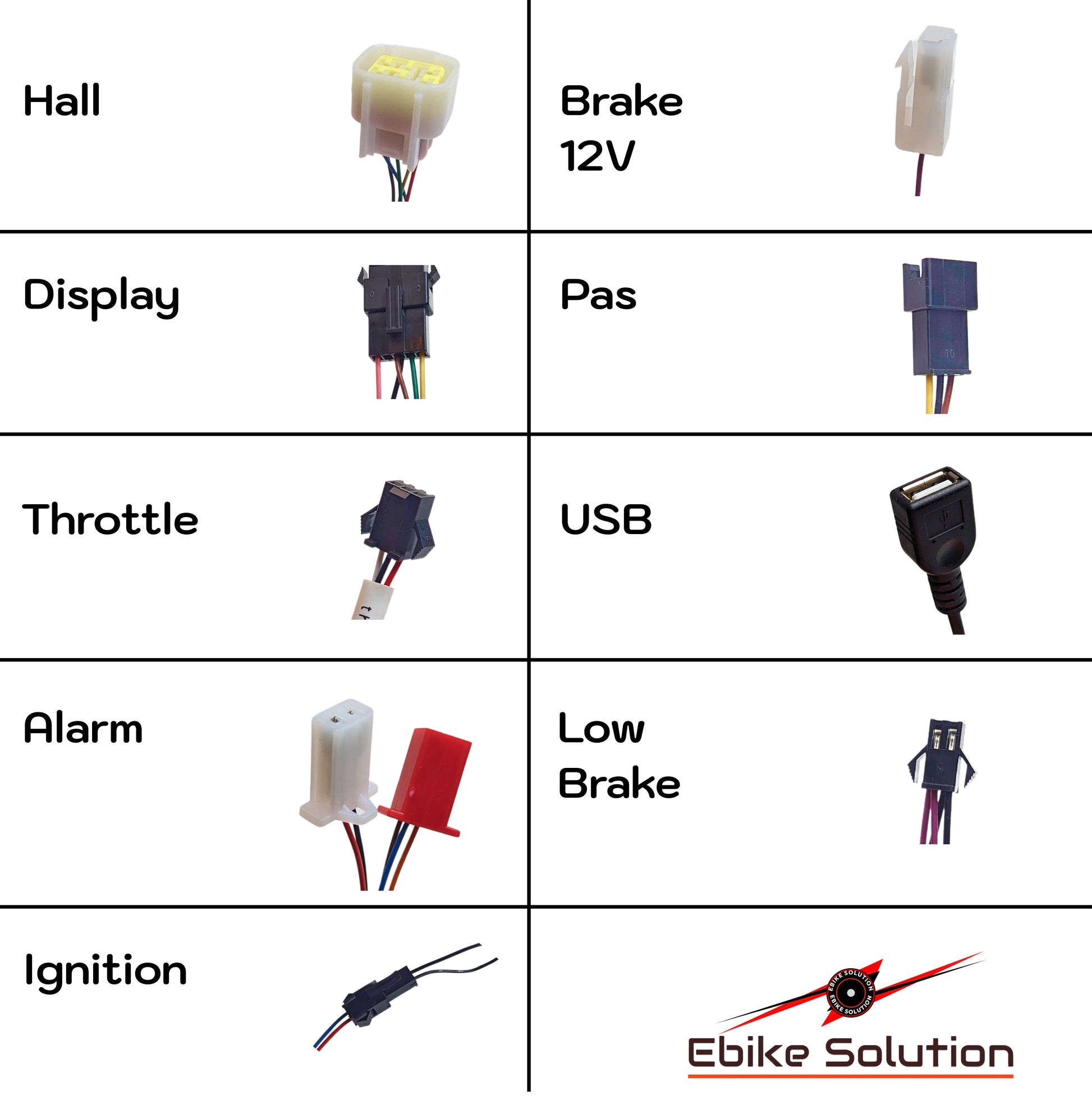

• Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed switch, Hall speedometer.
• Special functions: Reverse, Cruise, Three speed Button, Waterproof, Anti-theft

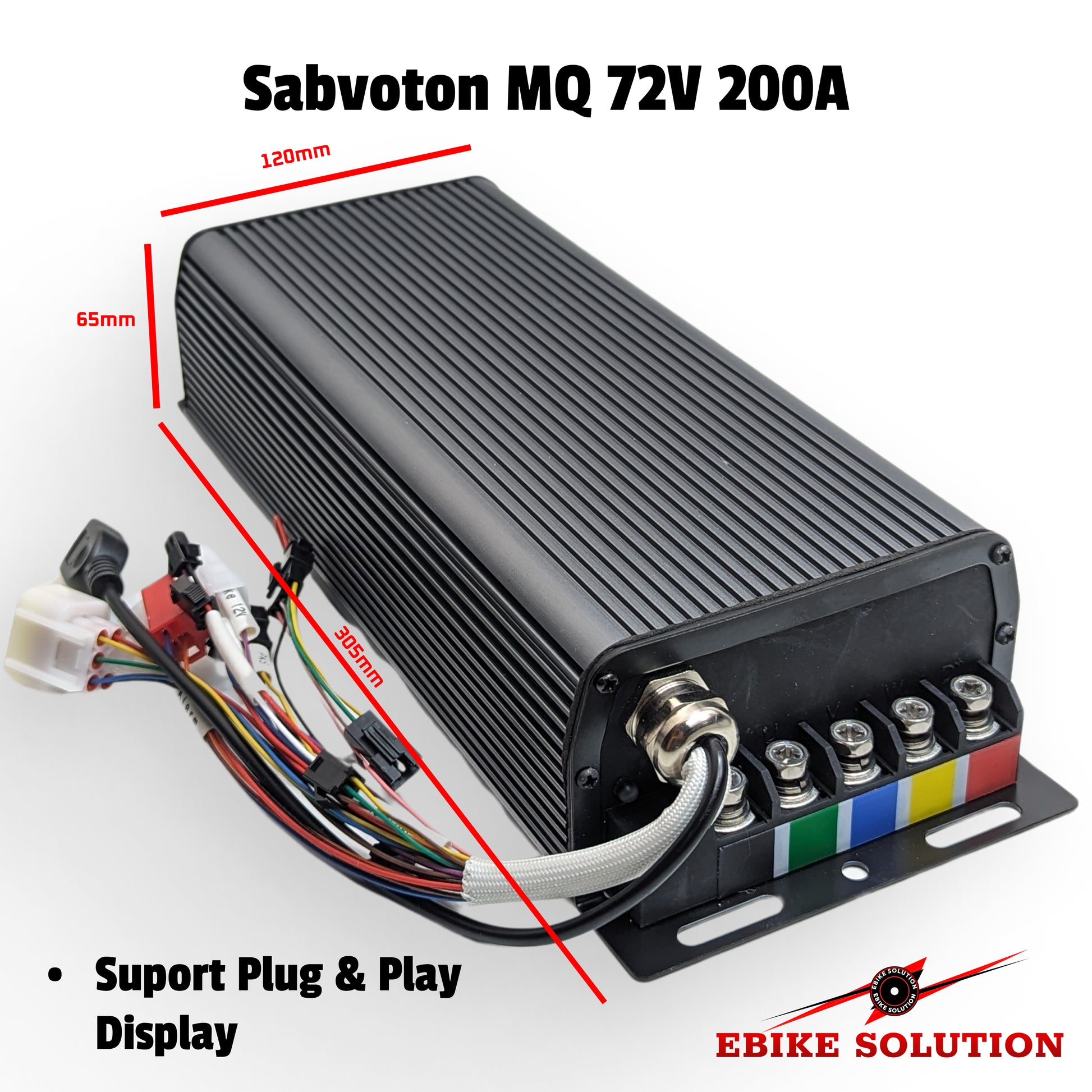

• Product Size: 283x147x62mm
• Net Weight: 2.2 kgs
• Single package size: 30.5 x 6.5 x 12cm

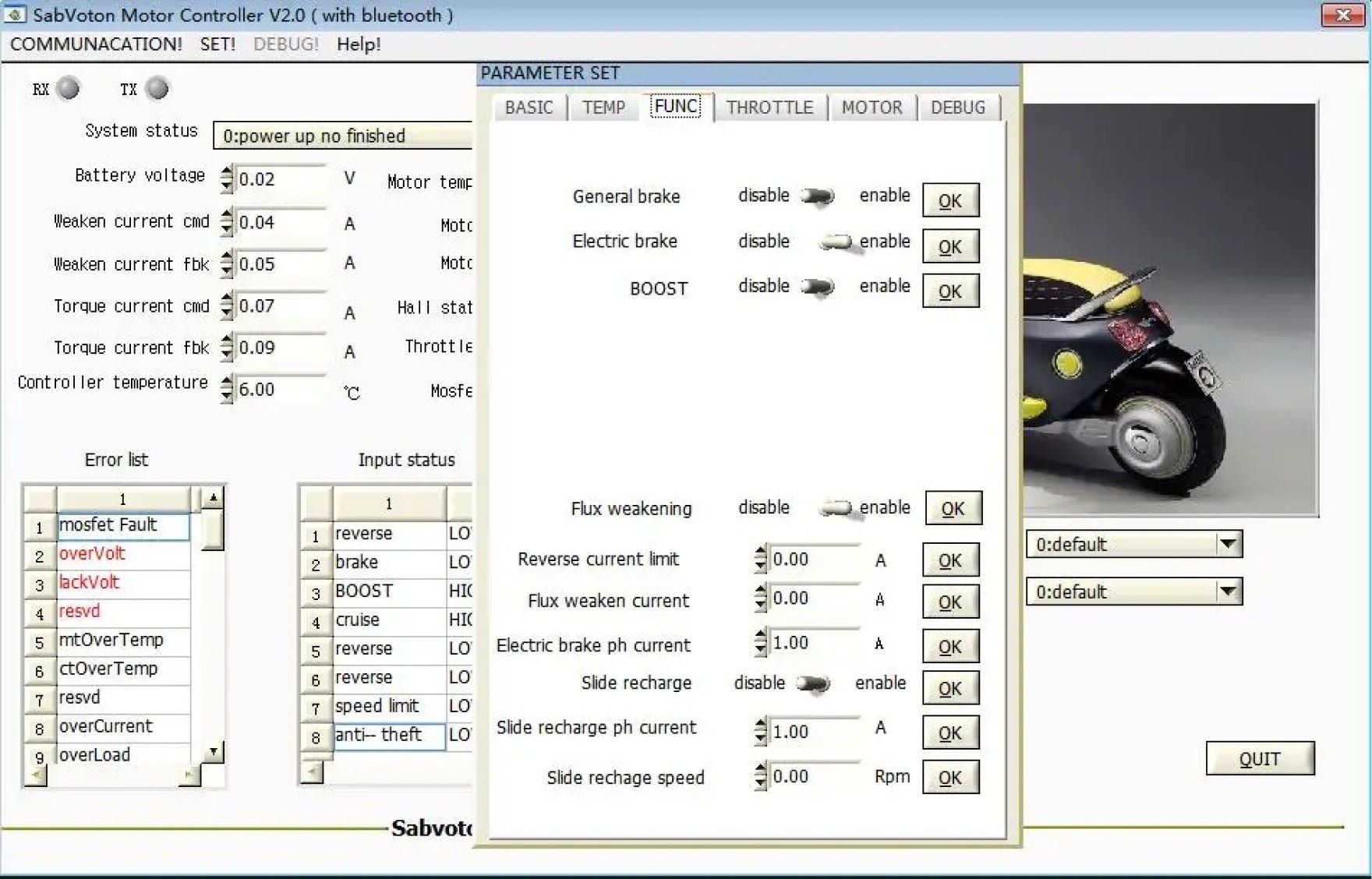

• Phone App or computer software can communicate with the controller to modify parameters
• V2 Mounts (top & bottom)
• Sine wave controller, programmable, with regen function

Features:

• FOC-180° sinusoidal drive controller applied to BLDCM or PMSM..
• It takes only 3 minutes for the motor to be well matched on its best electronic angle at the first time.
• The motor torque ripple will be reduced to the minimum, so as to ensure an electric vehicle to run without any noise and vibration, smoothly, and comfortably.
• The precise current ring can provide accurate torque input to meet the requirement 0f large torque output during vehicle starting and climbing.
• The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage
• Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection ,under-voltage protection and so on, effectively ensuring the safety of electronic control systems and vehicles.
• System status and fault intelligent management systems can effectively monitor the current system operating mode external input state ,the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.
• The rich peripheral interfaces: reverse, cruise, anti-theft, electronic brake, etc.
• Parameter modifications and settings are available through online configuration with online computer
• CAN BUS is optional to communicate with body instrument and BMS

Package Included

• 1 X 72V 200A Sabvoton
