Sabvoton SVMC7245 72V 45A Brushless DC Motor Programmable Controller For Ebike Bicycle

Sabvoton SVMC7245 72V 45A Brushless DC Motor Programmable Controller For Ebike Bicycle

UK Stock Fast Delivery

Software Download Link

Item Features

• FOC-180° sinusoidal drive controller applied to BLDCM or PMSM..
• It takes only 3 minutes for the motor to be well matched on its best electronic angle at the first time.
• The motor torque ripple will be reduced to the minimum, so as to ensure an electric vehicle to run without any noise and vibration, smoothly, and comfortably.
• The precise current ring can provide accurate torque input to meet the requirement 0f large torque output during vehicle starting and climbing.
• The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage
• Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection ,under-voltage protection and so on, effectively ensuring the safety of electronic control systems and vehicles.
• System status and fault intelligent management system can effectively monitor the current system operating mode external input state ,the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.
• The rich peripheral interfaces: reverse, cruise, anti-theft, electronic brake, etc.
• Parameter modifications and settings are available through online configuration with online computer
• CAN BUS is optional to communicate with body instrument and BMS

Product details

• Model: SVMC7245
• Battery Voltage: 48V-72V
• Peak Power: 48V 1500W/ 60V 1800W/ 72V 2200W
• Phase Peak Current: 135A
• DC Current: 45A
• Working Communication: Hall Sensor
• Installing Size: 164mm * 120mm * 62 mm
• Weight: 1.7kg
• Defaut Throttle Working Voltage: 0V - 5V
• Mosfets Detail: 12 FET
• Case Material: Aluminium
• Controller Design: Sine Wave Brushless DC Motor Controller
• Support Programmable by PC & Phone
• Certification: CE, CCC
• Dimensions: 150mm X 95mm X 70mm

Packaging List:

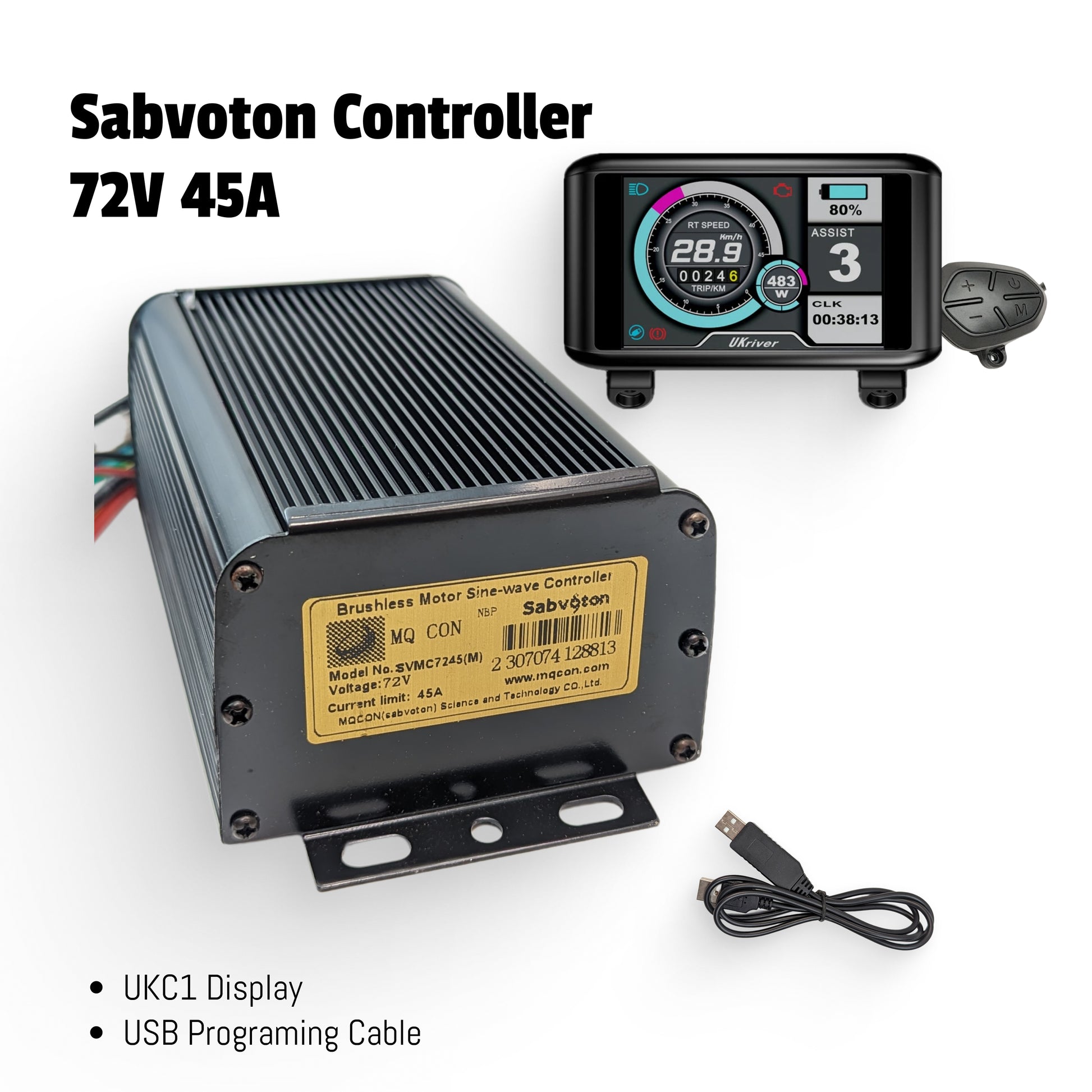

• 1 X Sabvoton Controller 45A with Display optional, throttle, usb cable
