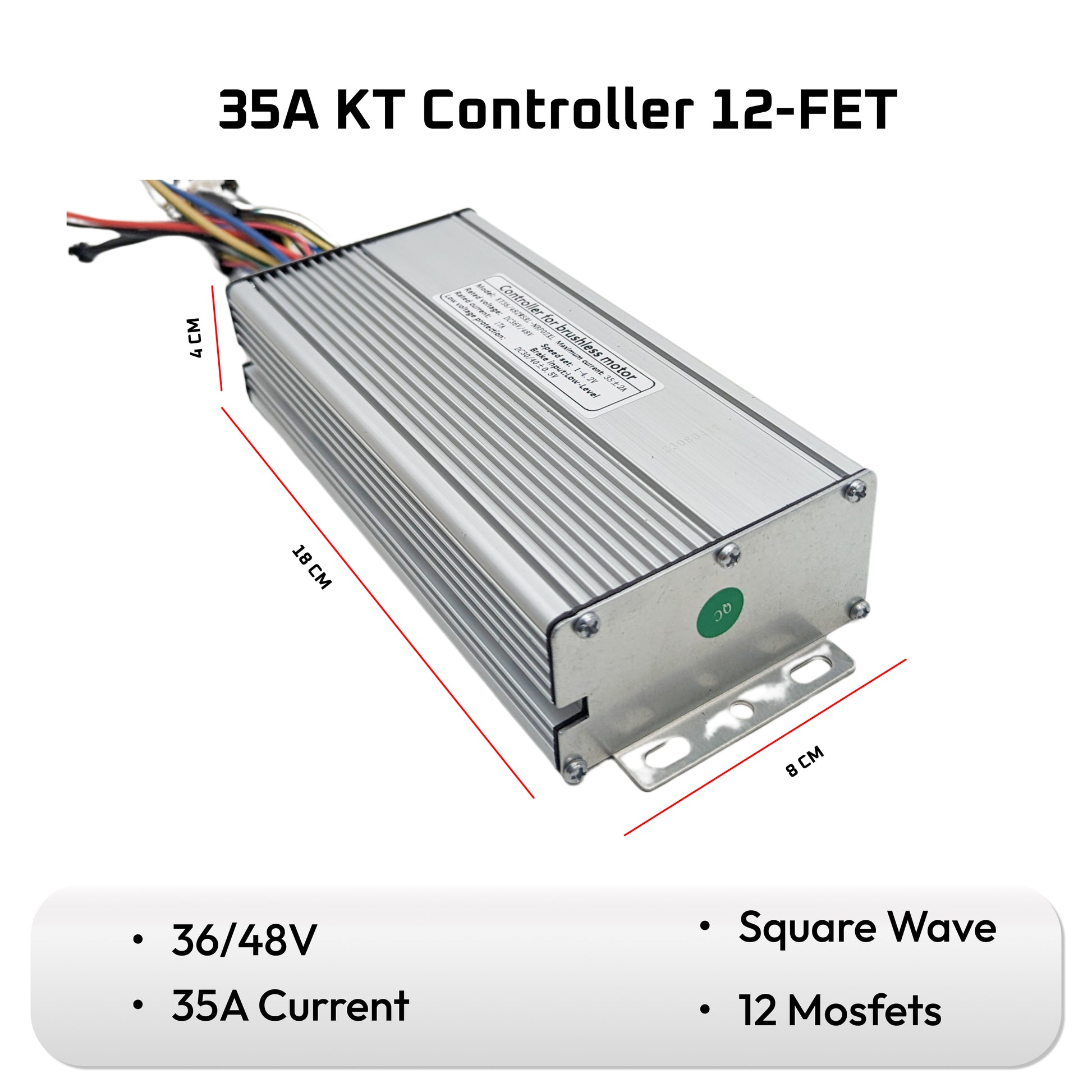

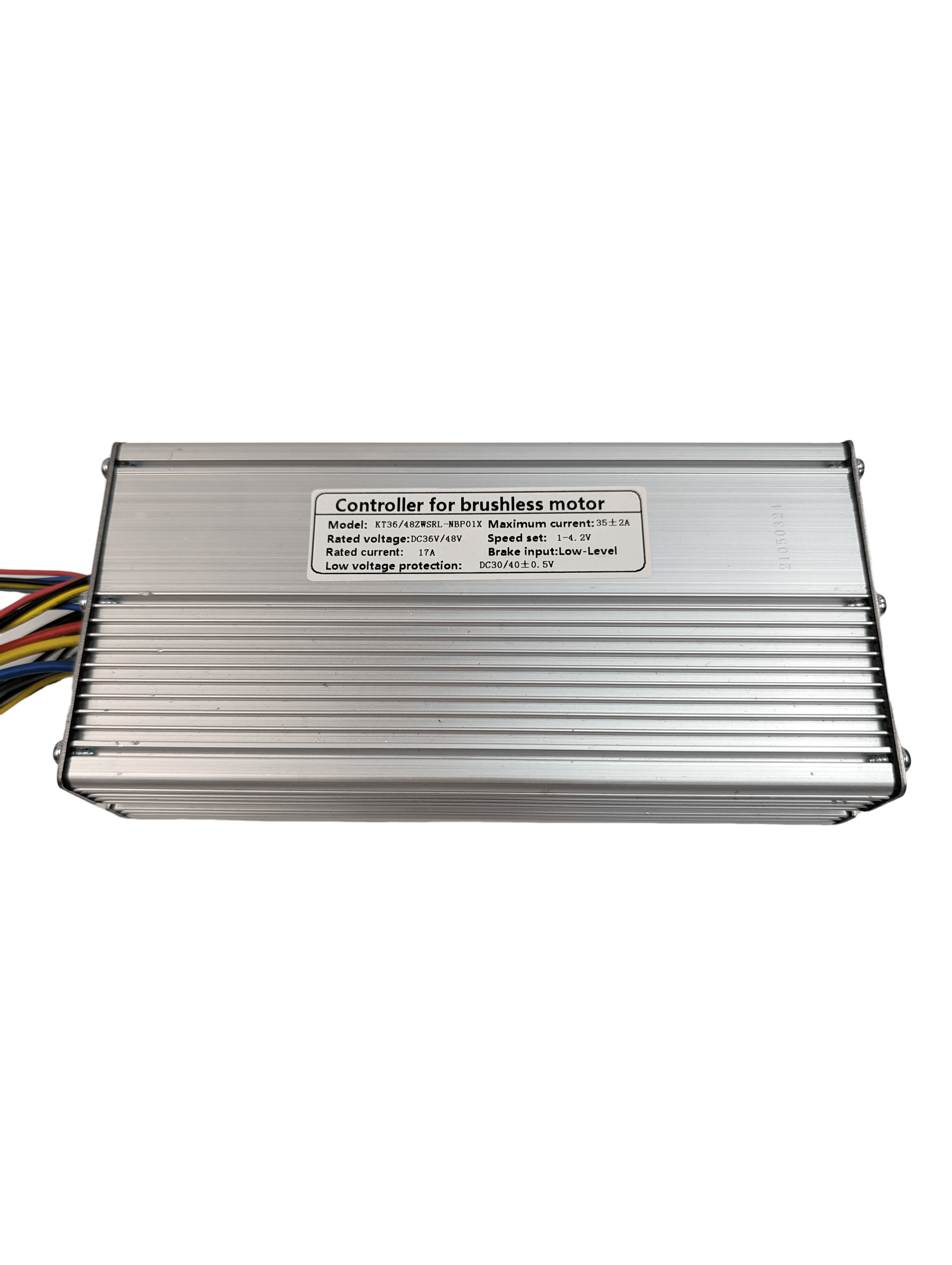

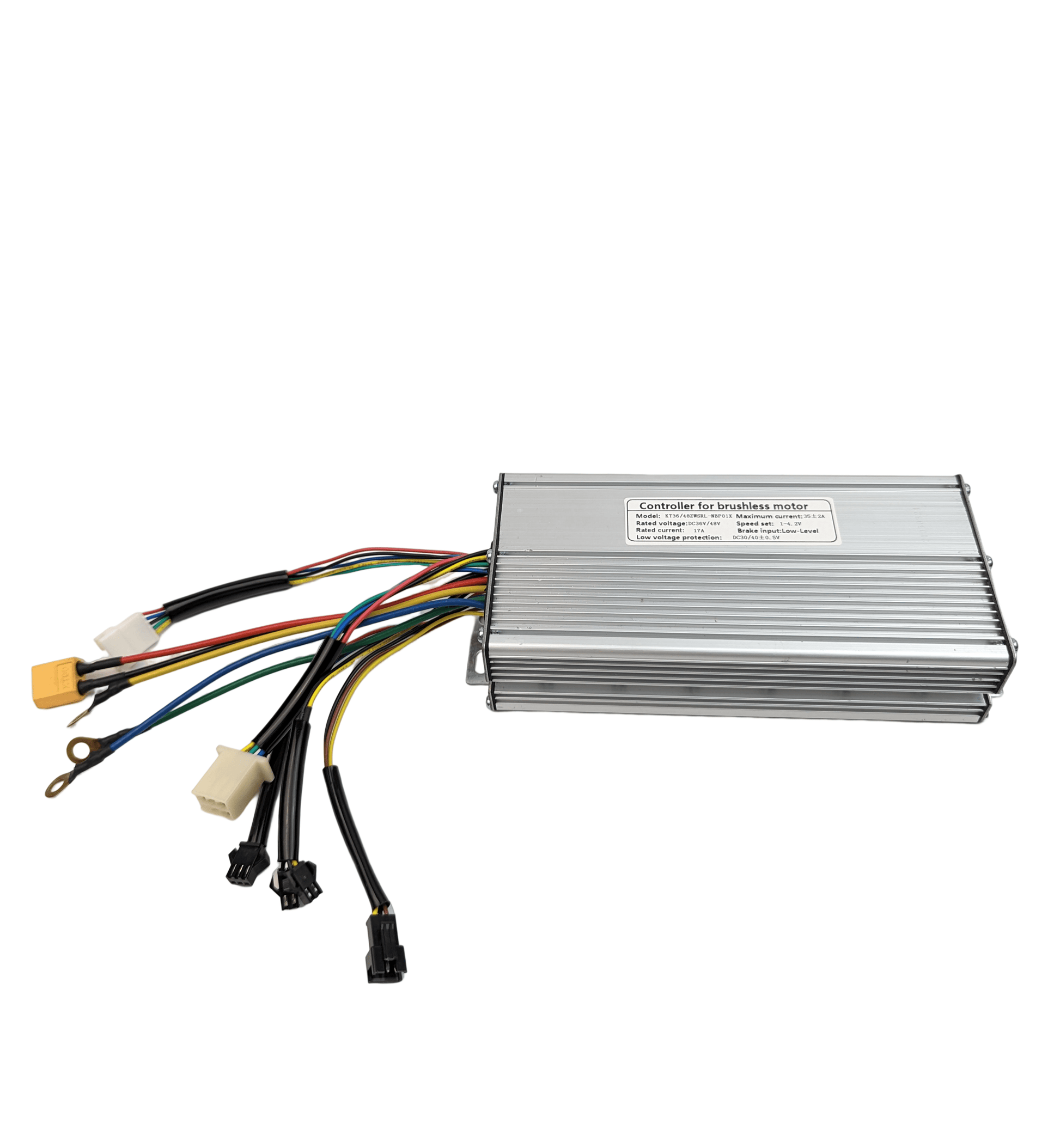

Brushless Motor Controller DC 36V/48V 1000-1500W 35A KT

Ebike Brushless Motor Controller DC 36V/48V 1000-1500W 35A KT

UK Stock Fast Delivery

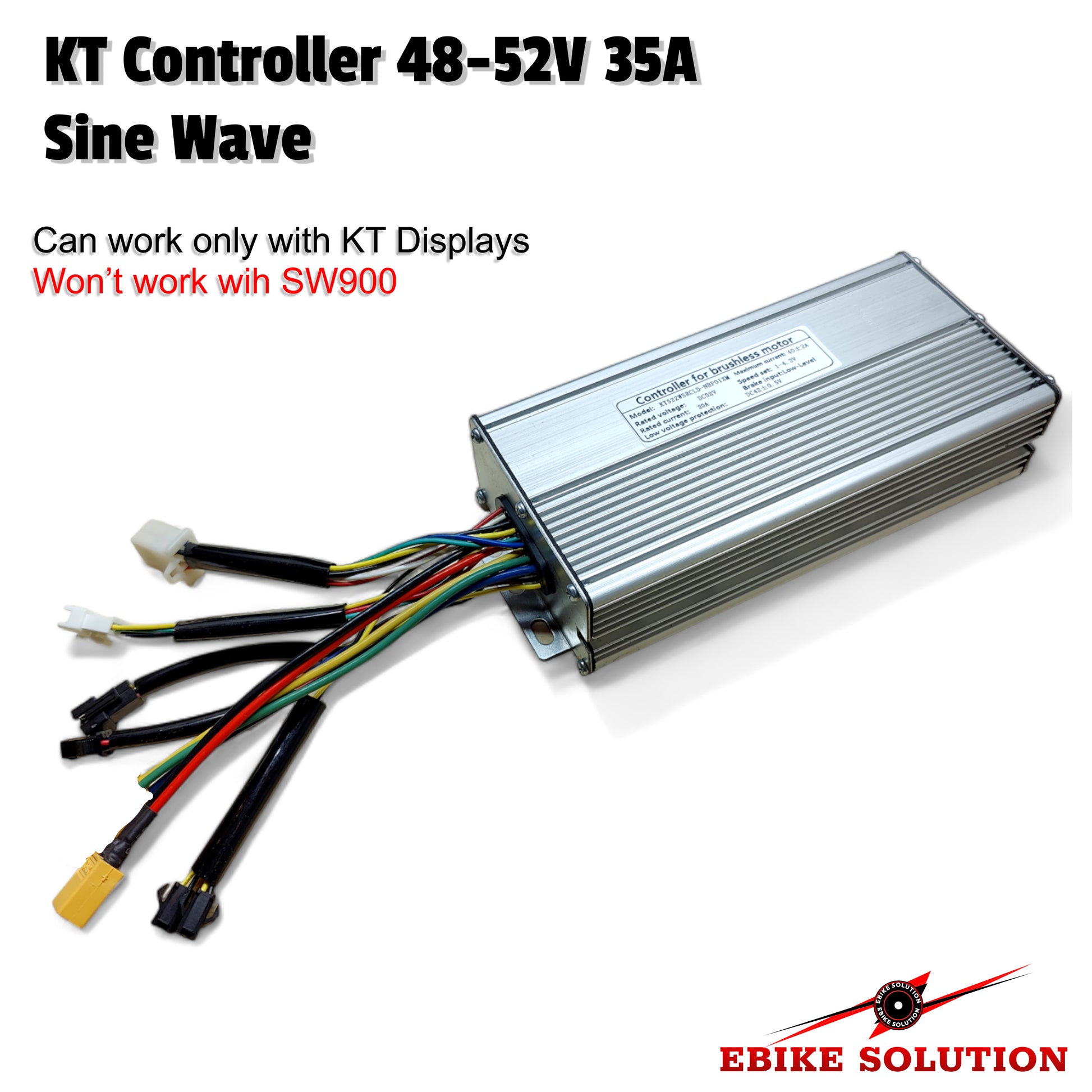

• Can work only with KT Displays (won't work with SW900 Displays)

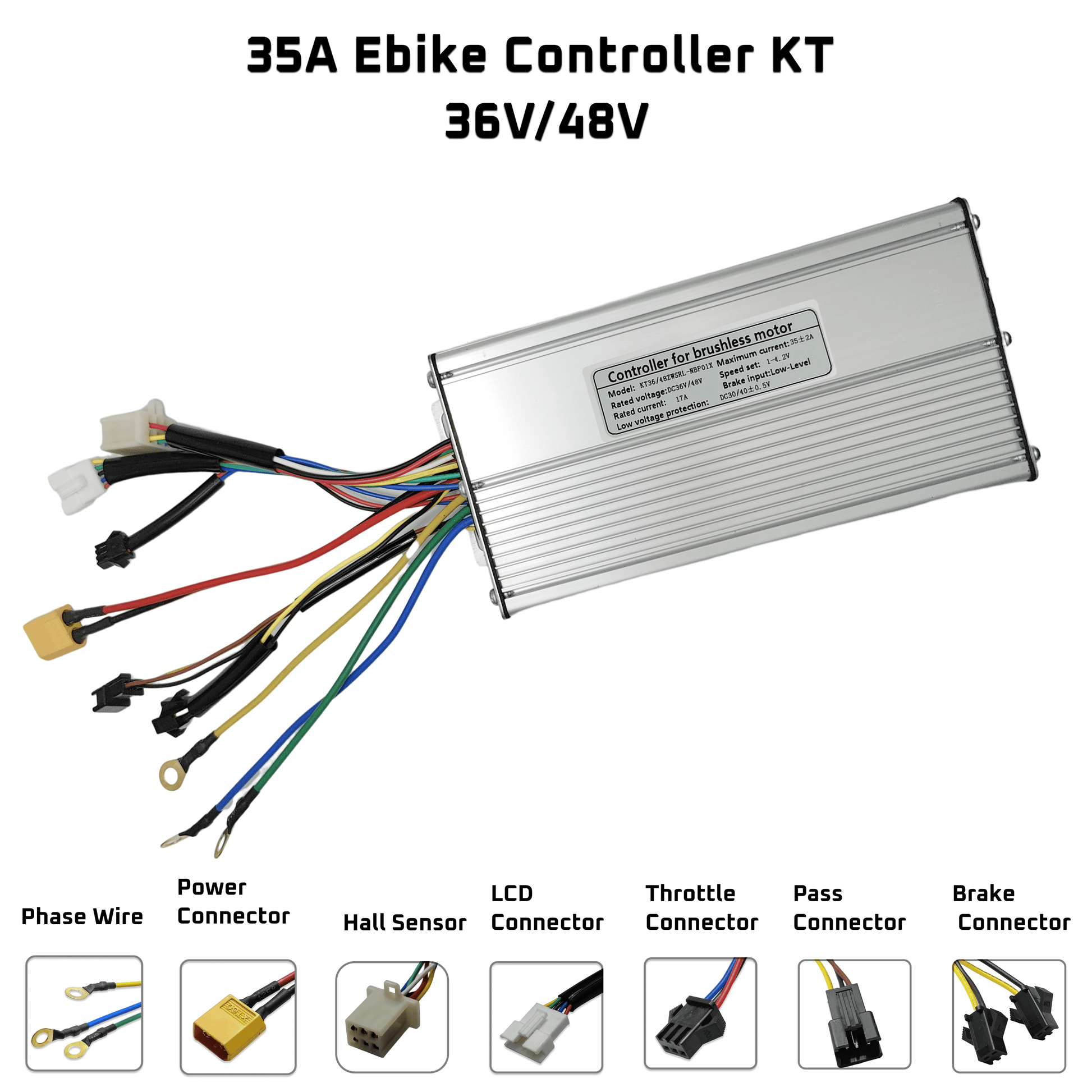

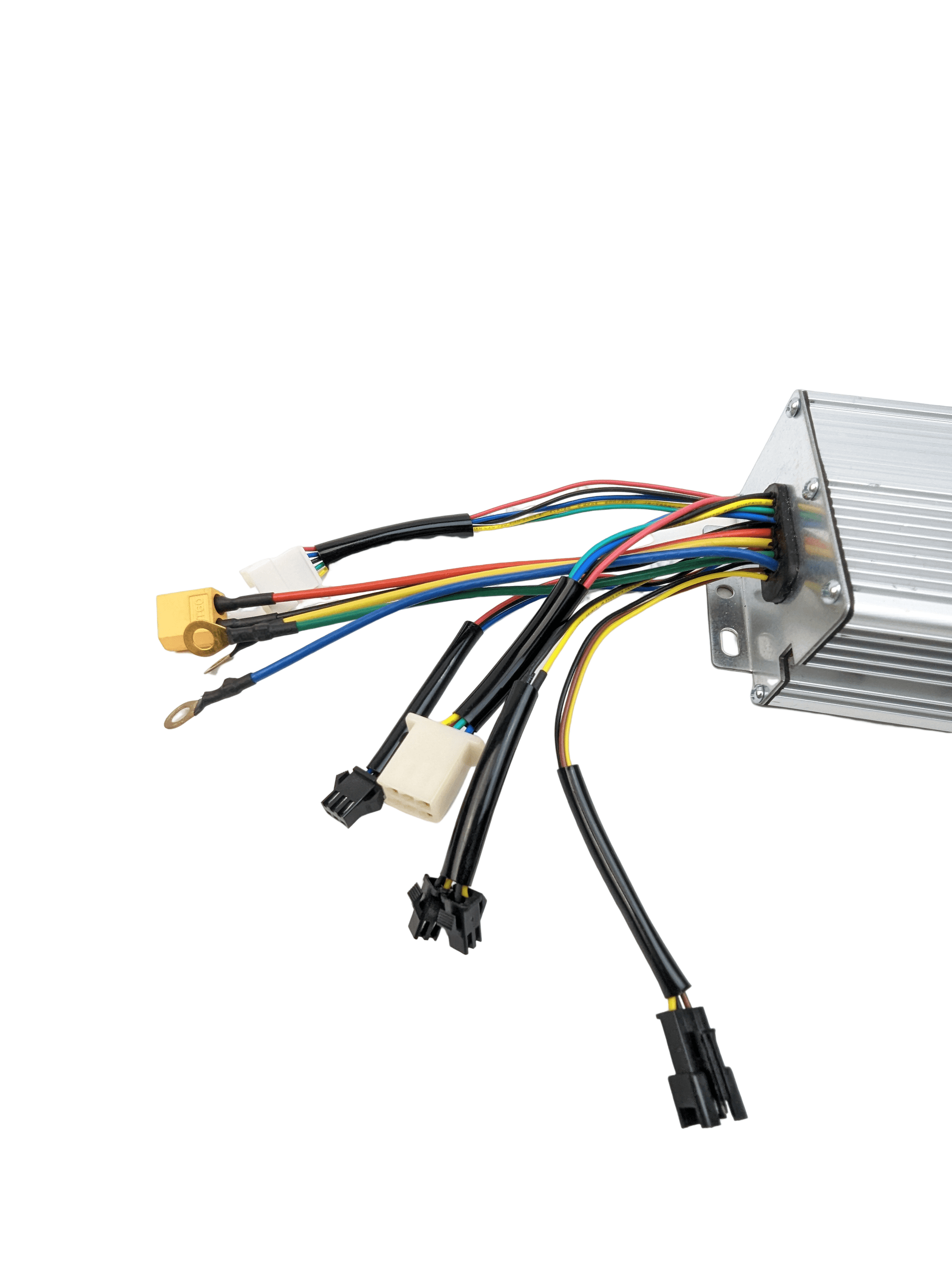

• This is sensored controller, so controller has three big cables and five sensor wires and one speed sensor wire. you motor must have 8pcs wires or 9pcs wires, If you motor have just three big cables ,please buy sensorless controller

Product details:

• Support KT LED Control Panel or KT LCD Control Panel or without any Control Panel (Universal)Support 48V Light
• Control Rated current: 17A
• Maximum Current: 35A
• It only applies to hub motors with Hall sensors.
• Note: This controller is only suitable for electric bicycles. It cannot be used for electric scooters

Specifications:

• Electric Bicycle 48V 1000W/1500W  KT-35A Sine Wave Brushless Controller
• Weight: 550g (Approx)
• Power: 1000W/1500W
• Cable length: 10-16cm (Approx)
• Model: 12 mosfets
• Maximum current: 35±2A
• Rated voltage: DC48V
• Speed setting: 1-4.2V
• Rated current: 17A
• Brake input: Low Level
• Low voltage protection: DC30/40±0.5V

Package Included

• 1 X 36V/48V 1000-1500W  35A KT Controller
