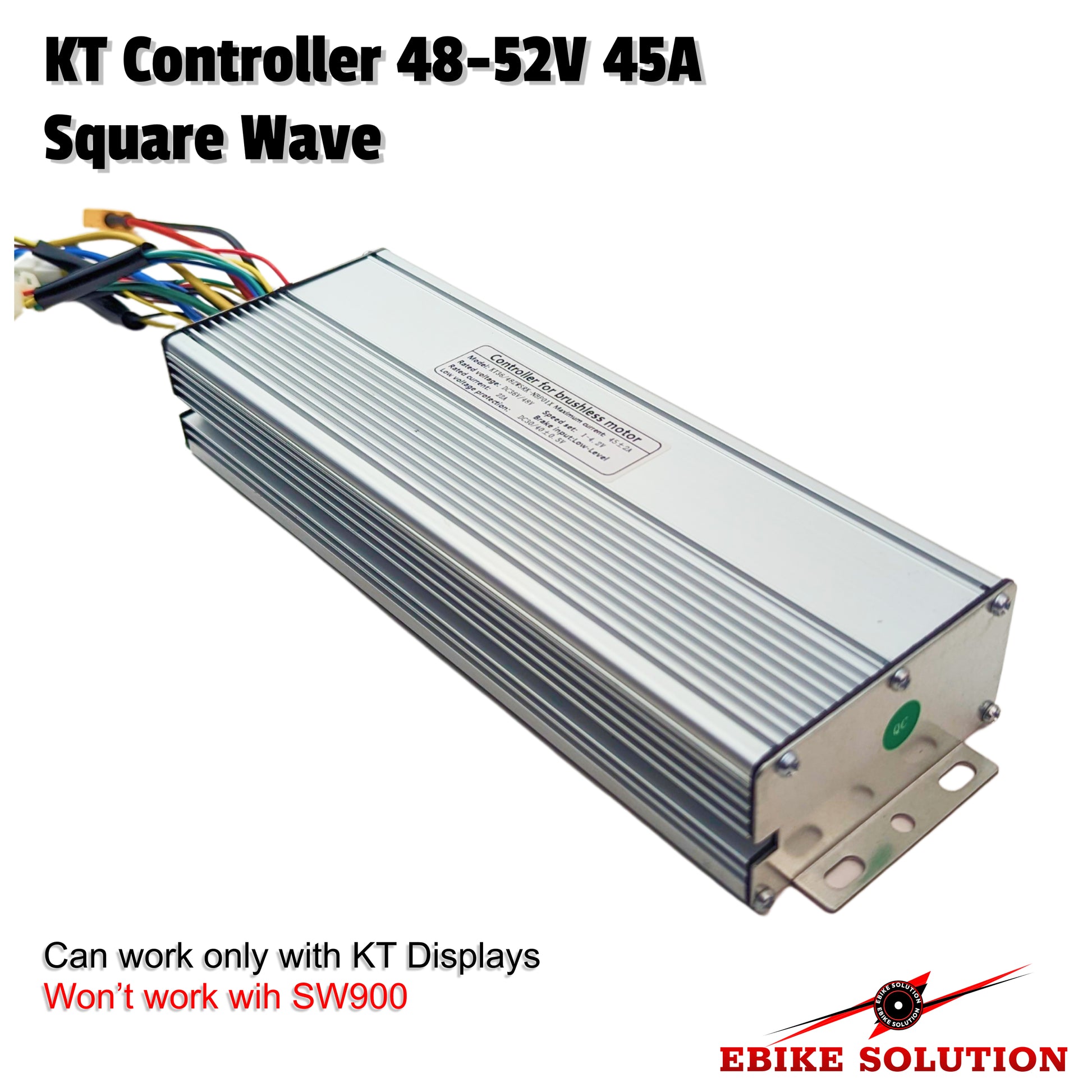

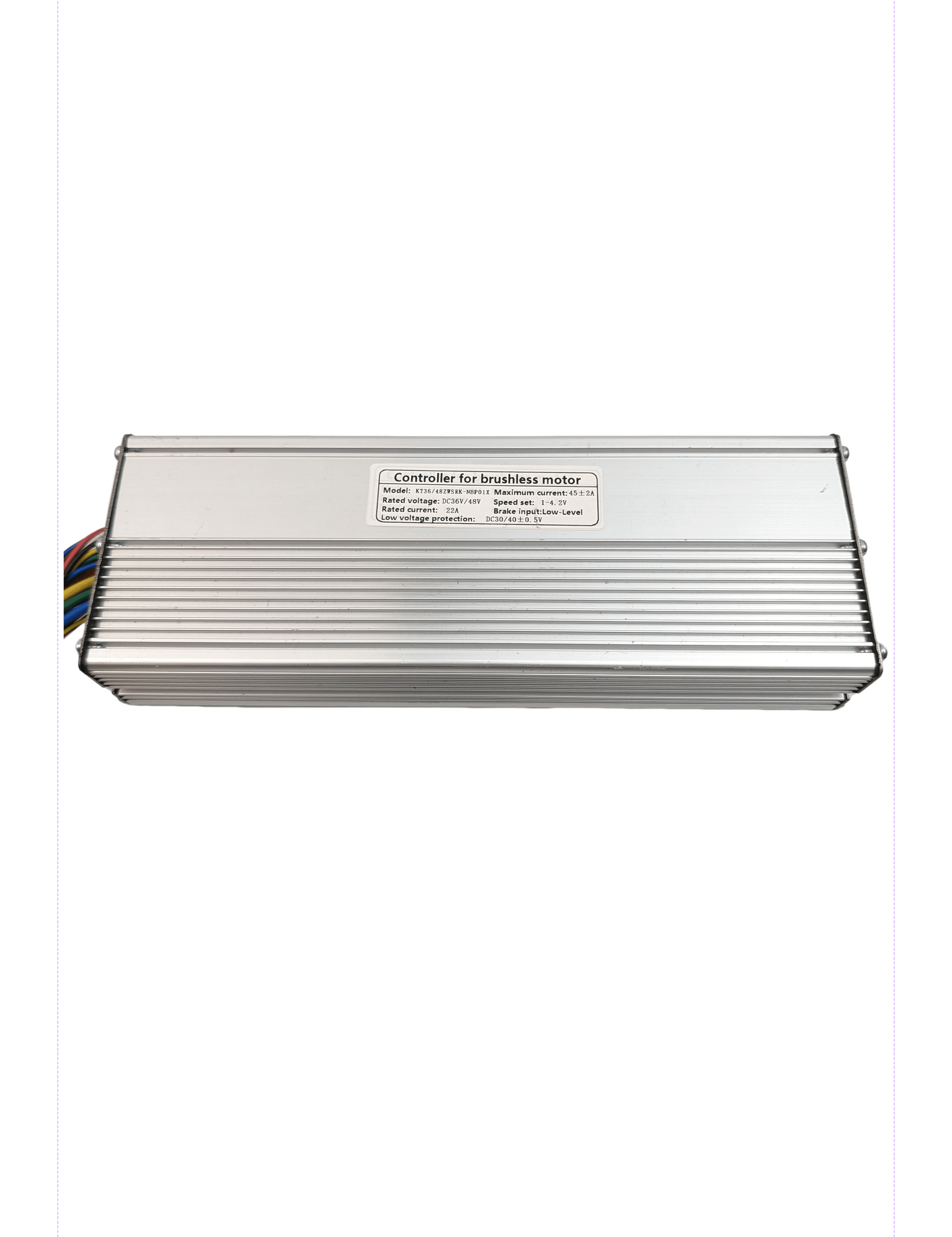

KT Ebike Controller 36/48V 2000W 18-FET 45A Brushless Motor

KT Ebike Controller 36/48V 2000W 18-FET 45A Brushless Motor

UK Stock Fast Delivery

Can work only with KT Displays (won't work with SW900 Displays)

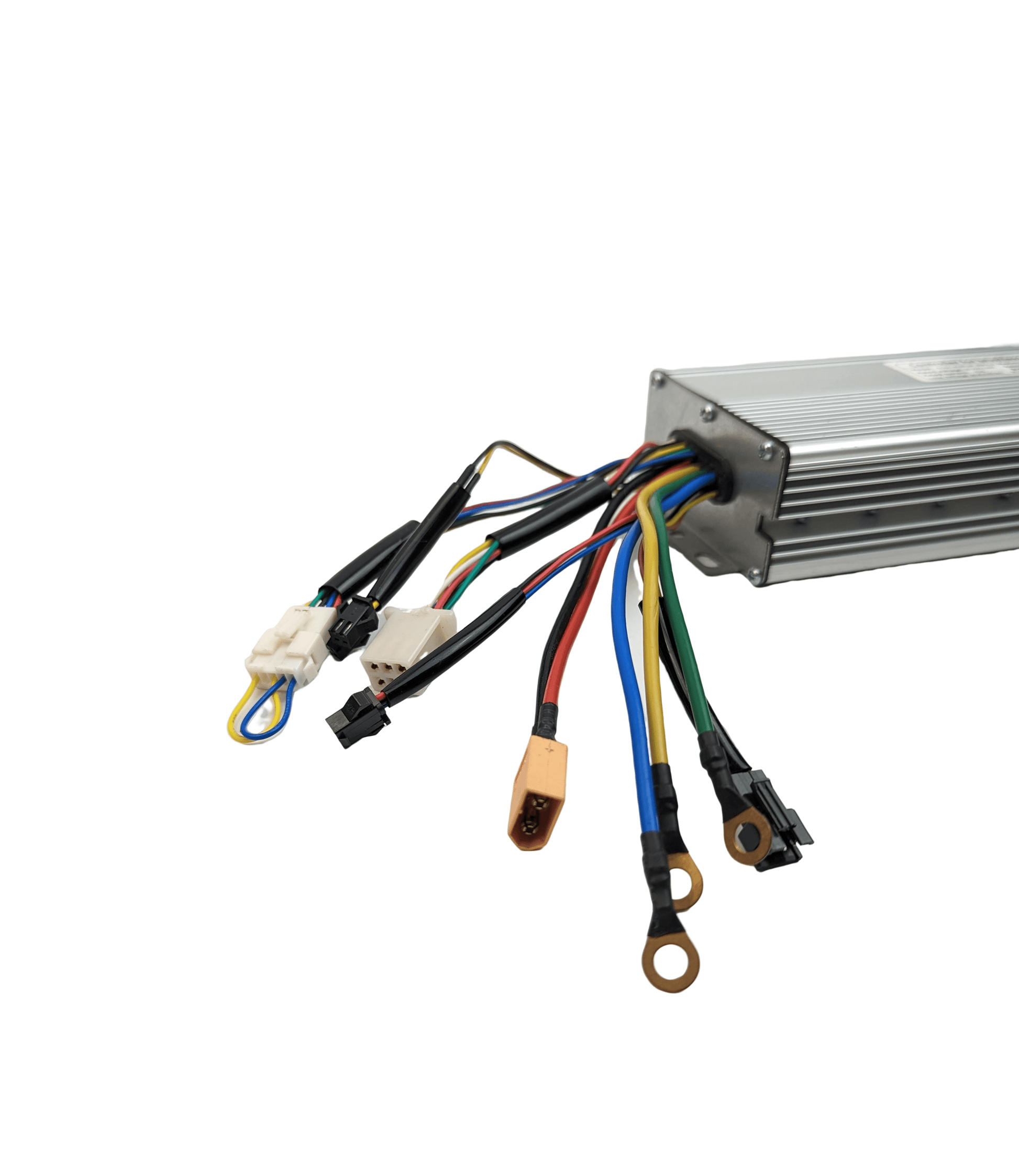

• This is sensored controller(with a hall plug), so the controller has three big cables and five sensor wires and one speed sensor wire. you motor must have 8pcs wires or 9pcs wires, If you motor just  three big cable,please buy sensorless controller

Product details:

• Provide accuracy torque output,give the enough torque for climbing
• High exchange efficiency, less temperature rise, give motor longer range
• More safe: Shaft lock protection, overcurrent protection,over-temperature protection ,over/under voltage protection,flywheel protection
• Make the motor longer life
• Easy to control the present situation, LED flash when any error

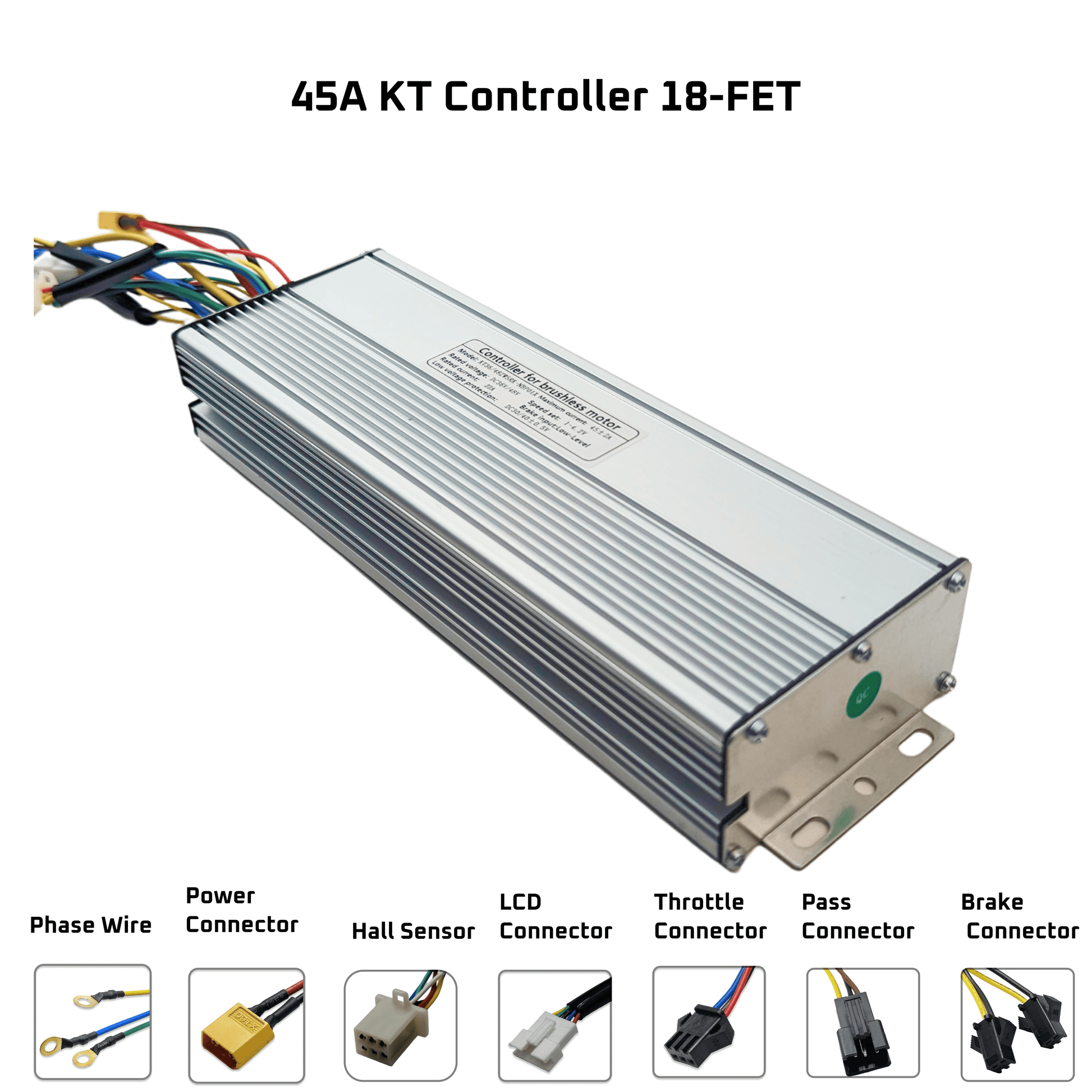

• A lot of additional function connection: e-brake,cruise,back off, etc

Specifications:

• Input Voltage: DC 36V or 48V
• Min. Voltage: DC30V/40±0.5V
• Max. Current: 45+2A
• Rated Current: 22A
• Speed set: 1-4.2V
• Brake Input: Low-Level

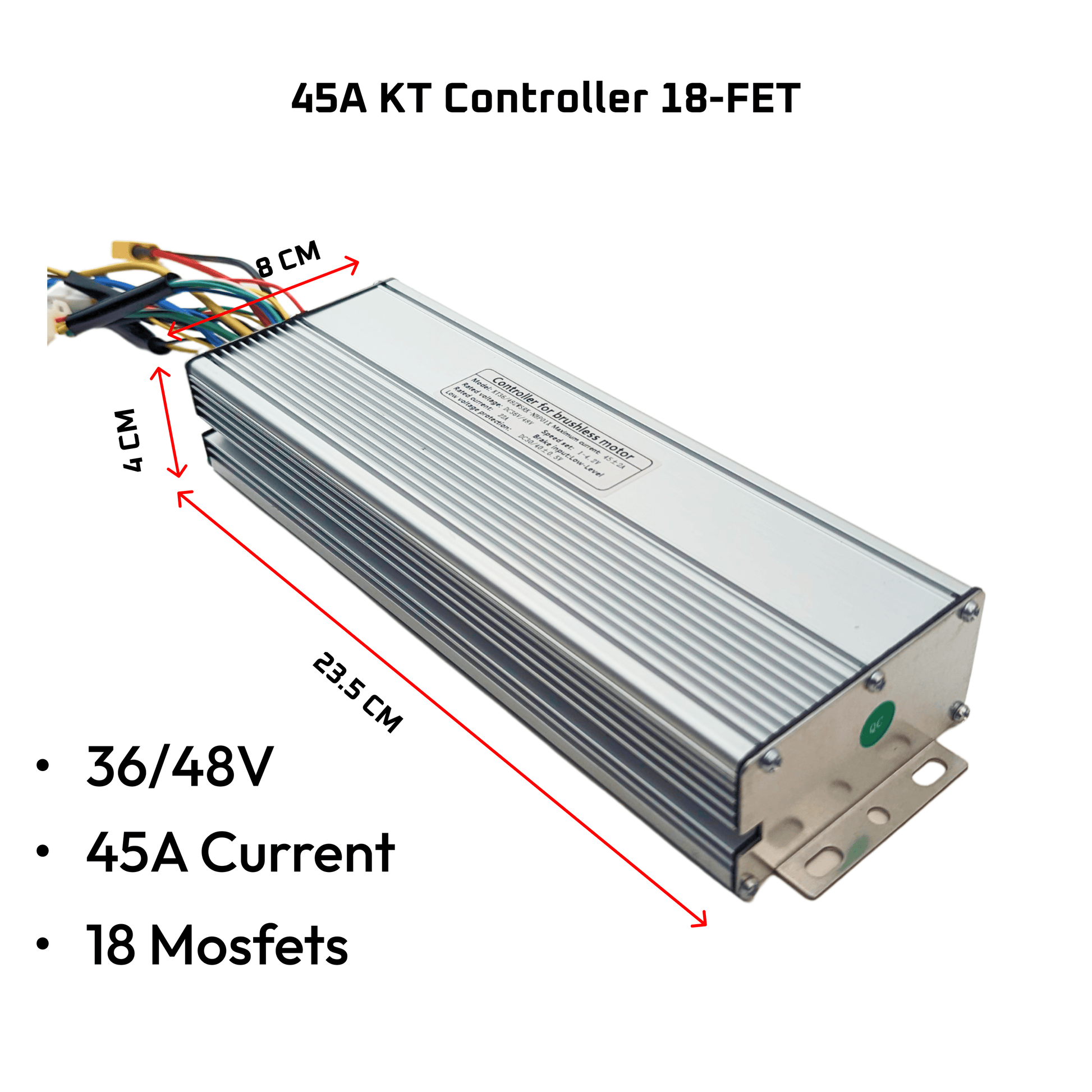

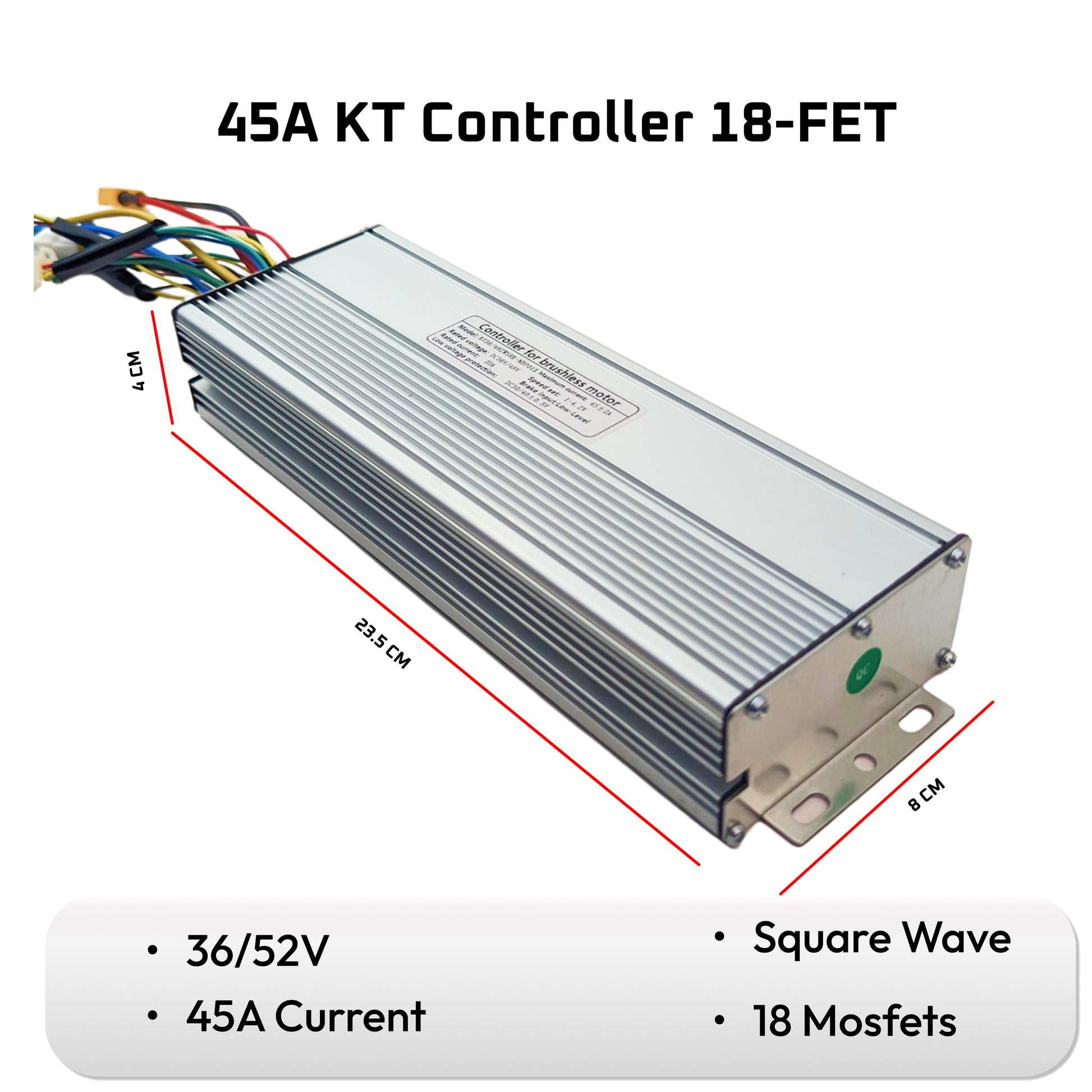

• Size: 240*82*41mm
• Colour: Silver
• Model: 18 mosfet
• Weight: 750g

Package Included

• 1 X 36/48V 2000W 18-FET 45A KT Ebike Controller Sensored
